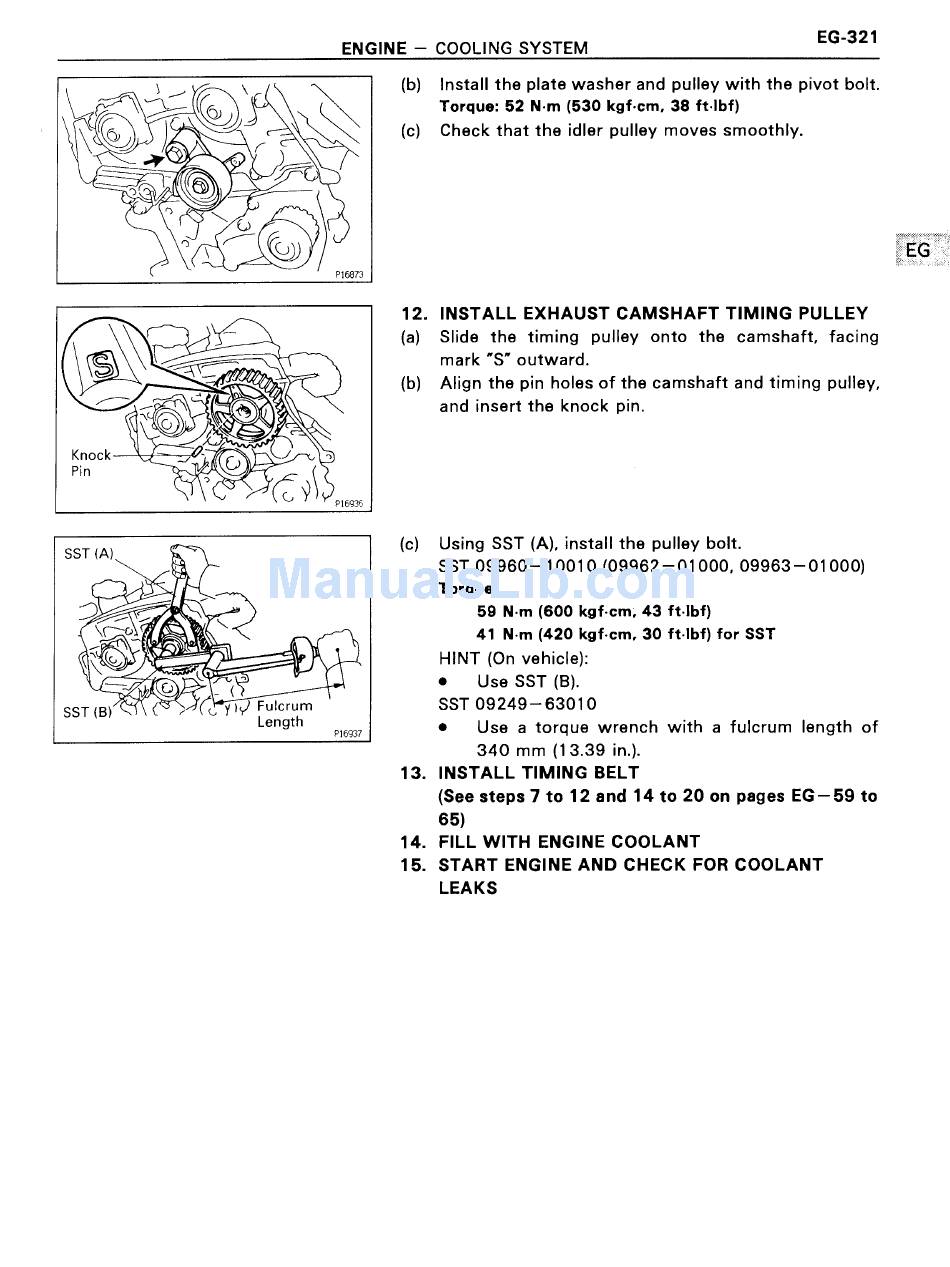

ENGINE — COOLING SYSTEM E6321
Q.) /T2;
. J' @ ' 1 e; ; \ § <
I/IQ/Q8 Q
W
Xe
©
)/L.
\ (bl
\ (C)
> mars .
k/1%
Knock
Pin
K
'3
@
QC'
12
(8)
(b)
P16936
SST (A)
0,
Q?'
\o
® .
v@"
-
SST
» U
W
A)
-s
(cl
13
14
15.
lnstall the plate washer and pulley with the pivot bolt.
Torque: 52 N-m (530 kgf-cm, 38 ft-Ibf)
Check that the idler pulley moves smoothly.
INSTALL EXHAUST CAMSHAFT TIMING PULLEY
Slide the timing pulley onto the camshaft, facing
mark "S" outward.
Align the pin holes of the camshaft and timing pulley,
and insert the knock pin.
Using SST (A), install the pulley bolt.
SST 09960-10010 (09962—01000, 09963-01000)
Torque:
59 N-m (600 kgf-cm, 43 ft-Ibf)
41 N-m (420 kgf~cm. 30 ft-Ibf) for SST
HINT (On vehicle):
0 Use SST (B).
SST 09249—6301 0
(B) I' D Y)?' Fulcrum
Length 9,693, 0 Use a torque wrench with a fulcrum length of
340 mm (13.39 in.).
INSTALL TIMING BELT
(See steps 7 to 12 and 14 to 20 on pages EG—59 to
65)
FILL WITH ENGINE COOLANT
START ENGINE AND CHECK FOR COOLANT
LEAKS
