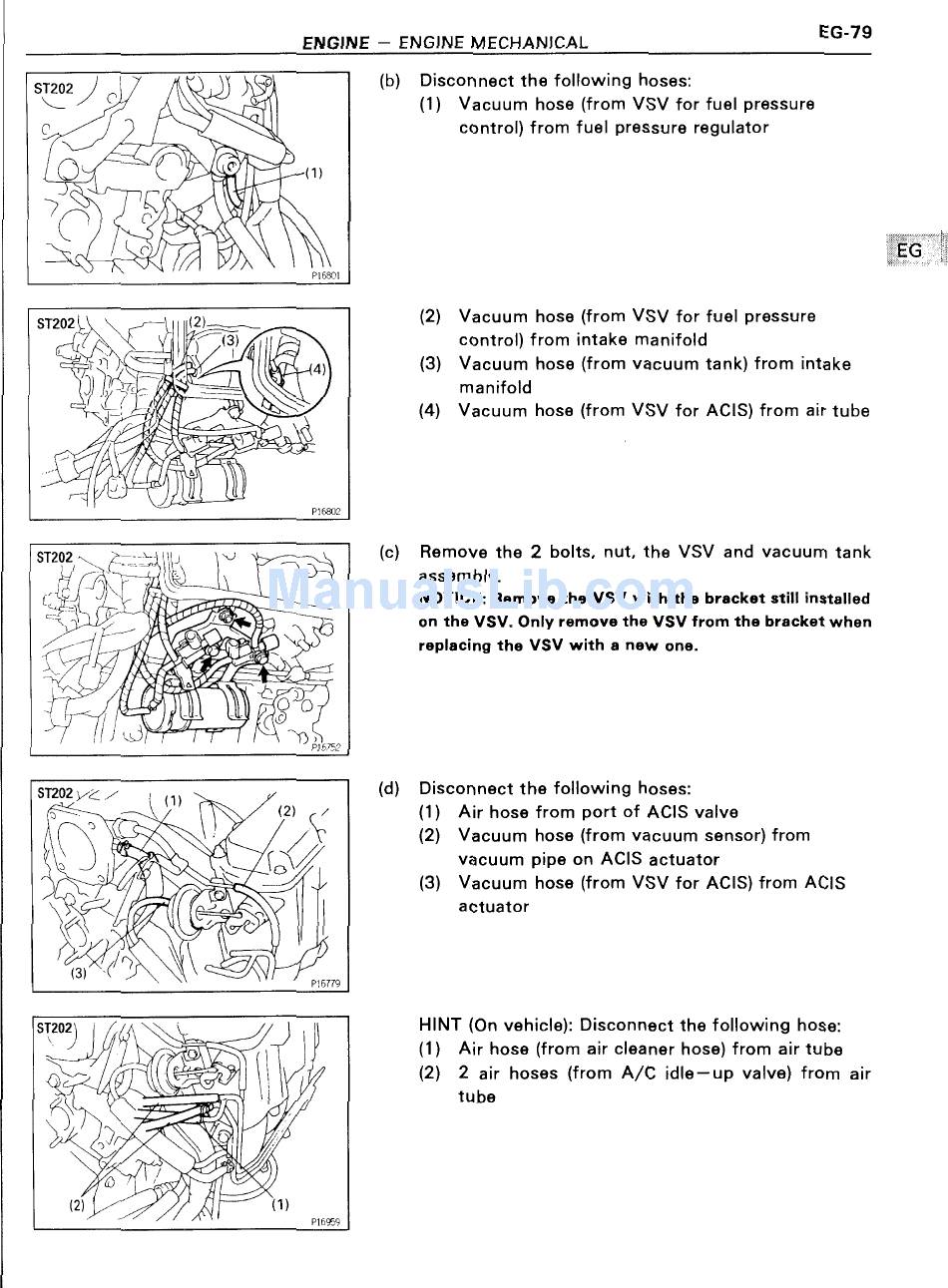

Toyota 3S-GE Repair Manual page 93

EG-79
ENGINE — ENGINE MECHANICAL
I 1 I
7
\ Q' V
Pl6801
srzbz
Y€7,l7/, K 4)
I
I
P1602
Yr
Y I /'V
1153*
ST2Q2 \__g W v l
£5 ti'
C'.-.:\ 2/ t,
E ' 4' ».._¢
(3 .
A (3) \(/fl
fldl
1 ' i § l ; I 4
\' : fKi§
Pl6779
Mi €\~
E
(44 'life ll'iI\ M
" ' t s - / ~ a_
ST202) ! ' '
I'll
P1595?
ST202! r (b) Disconnect the following hoses:
\ C' ' (1) Vacuum hose (from VSV for fuel pressure
O s" control) from fuel pressure regulator
4 \ '
nn. ' 5
Q (1>
(2) Vacuum hose (from VSV for fuel pressure
control) from intake manifold
(3) Vacuum hose (from vacuum tank) from intake
manifold
(4) Vacuum hose (from VSV for ACIS) from air tube
Remove the 2 bolts, nut, the VSV and vacuum tank
assembly. y
NOTICE: Remove the VSV with the bracket still installed
on the VSV. Only remove the VSV from the bracket when
replacing the VSV with a new one.
Disconnect the following hoses:
(1) Air hose from port of ACIS valve
(2) Vacuum hose (from vacuum sensor) from
vacuum pipe on ACIS actuator
(3) Vacuum hose (from VSV for ACIS) from ACIS
actuator
HINT (On vehicle): Disconnect the following hose:
(1) Air hose (from air cleaner hose) from air tube
(2) 2 air hoses (from A/C idle—up valve) from air
tube
