Toyota 3S-GE Repair Manual page 193

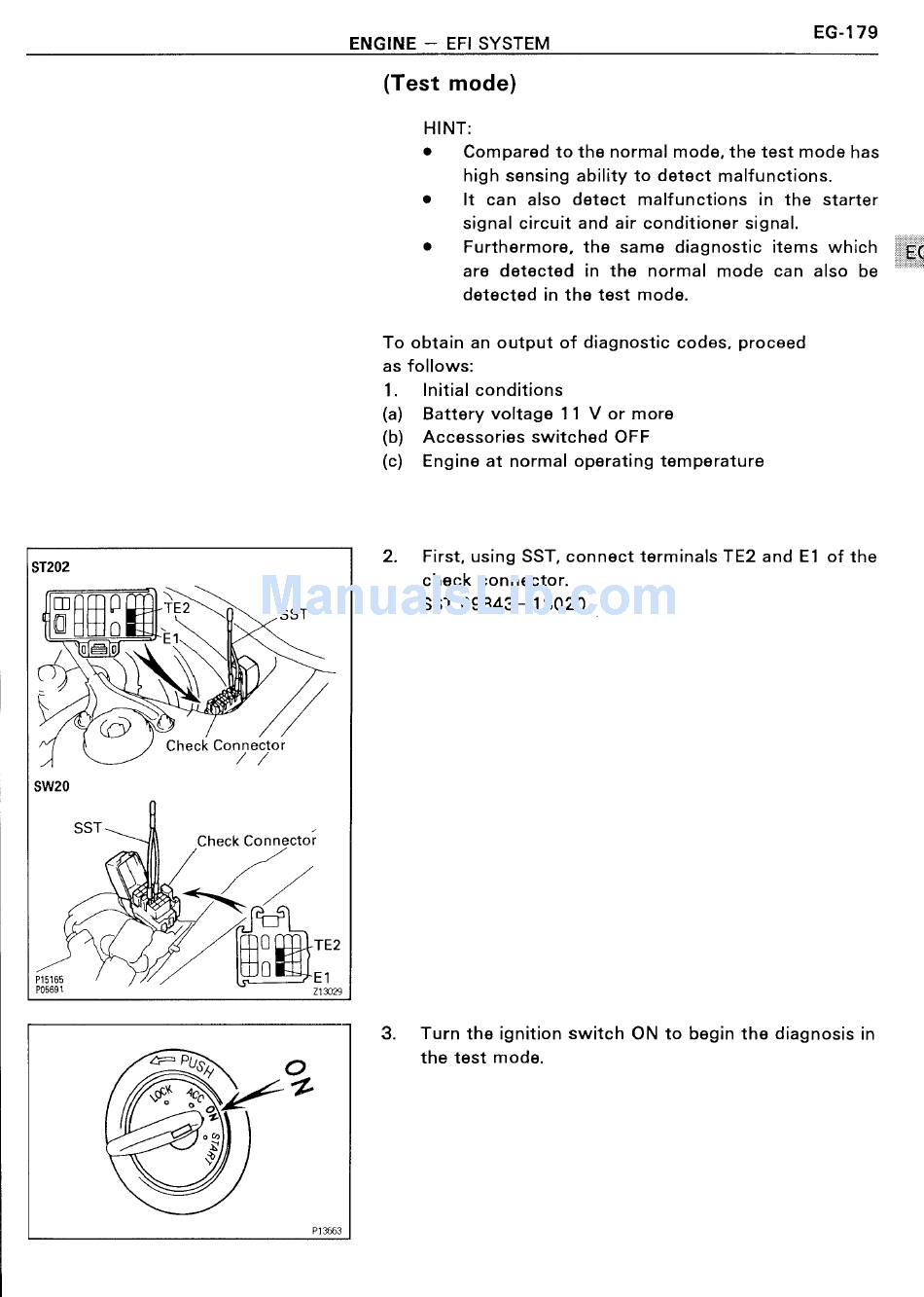

EG-179
ENGINE —- EFI SYSTEM
ST202
ée
ZI)
E
'ID
i
:i:
g/
\ / I ,
SST
Check Connector
/ /
SW20
Pl5l65
P05691
'(X
é:?;-—' _ =*——
\/\
'Z I \
\
SST
Check Connector
Eg TE2
D '!!
E1
21302;
(Test mode)
HINT:
0 Compared to the normal mode, the test mode has
high sensing ability to detect malfunctions.
It can also detect malfunctions in the starter
signal circuit and air conditioner signal.
Furthermore, the same diagnostic items which
are detected in the normal mode can also be
detected in the test mode.
To obtain an output of diagnostic codes, proceed
as follows:
1. Initial conditions
(a) Battery voltage 1 1 V or more
(b) Accessories switched OFF
(c) Engine at normal operating temperature
2. First, using SST, connect terminals TE2 and E1 of the
check connector.
SST 09843-18020
3. Turn the ignition switch ON to begin the diagnosis in
F. pus/Y O the test mode.
\¢i(\ 100 K 1
%
"M5 \\°
P13663
