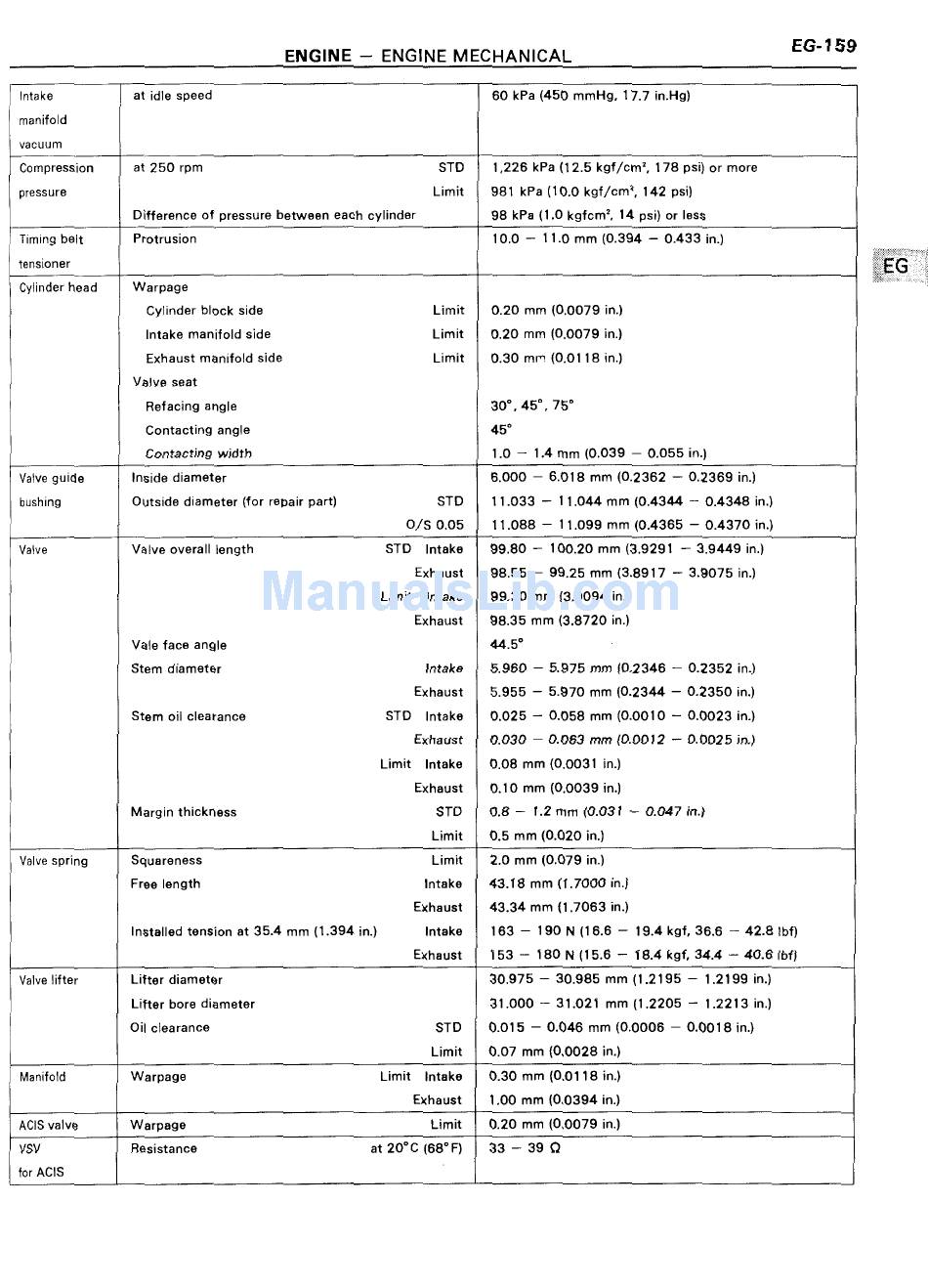

Toyota 3S-GE Repair Manual page 173

ENGINE — ENGINE MECHANICAL EG 159
lntake
manifold
vacuum
at idle speed
60 kPa (450 mmHg, 17.7 in.Hg)
Compression
pressure
at 250 rpm
STD
Limit
Difference of pressure between each cylinder
1,226 kPa (12.5 kgf/cm', 178 psi) or more
981 kPa (10.0 kgf/cm', 142 psi)
98 kPa (1.0 kgfcm'. 14 psi) or less
Timing belt
tensioner
Protrusion
10.0 — 11.0 mm (0.394 - 0.433 in.)
Cylinder head Warpage
Cylinder block side
Intake manifold side
Exhaust manifold side
Valve seat
Refacing angle
Contacting angle
Contacting width
Limit
Limit
Limit
0.20 mm (0.0079 in.)
0.20 mm (0.0079 In.)
0.30 mm (0.0118 in.)
30°,-15°, 75°
45°
1.0 — 1.4 mm (0.039 — 0.055 in.)
Valve guide
bushing
Inside diameter
Outside diameter (for repair part)
STD
O/S 0.05
6.000 — 6.018 mm (0.2362 — 0.2369 in.)
11.033 — 1 1.044 mm (0.4344 —— 0.4348 in.)
11.088 -— 11.099 mm (O.4365 — 0.4370 in.)
Valve Valve overall length
Vale face angle
Stem diameter
Stem oil clearance
Margin thickness
STD lntake
Exhaust
Limit Intake
Exhaust
Intake
Exhaust
STD lntake
Exhaust
Limit lntake
Exhaust
STD
Limit
99.80 — 100.20 mm (3.9291 —— 3.9449 in.)
98.55 — 99.25 mm (3.8917 — 3.9075 in.)
99.30 mm (3.9094 in.)
98.35 mm (3.8720 in.)
44.5° 1
5.960 — 5.975 mm (0.2346 — 0.2352 in.)
5.955 — 5.970 mm (0.2344 — 0.2350 in.)
0.025 — 0.058 mm (0.0010 - 0.0023 in.)
0.030 — 0.063 mm (0.0012 -— 0.0025 in.)
0.08 mm (0.0031 in.)
0.10 mm (0.0039 in.)
0.8 — 1.2 mm (0.031 — 0.047 in.)
0.5 mm (0.020 in.)
Valve spring Squareness
Free length
Limit
lntake
Exhaust
Installed tension at 35.4 mm (1.394 in.) lntake
Exhaust
2.0 mm (0.079 in.)
43.15 mm (1.7000 in.)
43.34 mm (1.7053 in.)
153 — 190 N (15.5 - 19.4 kgf, 35.5 - 42.8
153 —— 180 N (15.6 -— 18.4 kgf, 34.4 —- 40.6 f)
Valve lifter
Lifter diameter
Lifter bore diameter
Oil clearance
STD
Limit
30.975 — 30.985 mm (1.2195 — 1.2199 in.)
31.000 — 31.021 mm (1.2205 — 1.2213 in.)
0.015 — 0.046 mm (0.0006 — 0.0018 in.)
0.07 mm (0.0028 in.)
Manifold
Warpage
Limit Intake
Exhaust
0.30 mm (0.0118 in.)
1.00 mm (0.0394 in.)
ACIS valve
Warpage
Limit
0.20 mm (0.0079 in.)
VSV
for ACIS
Resistance
at 20°C (68° F) 33-390
