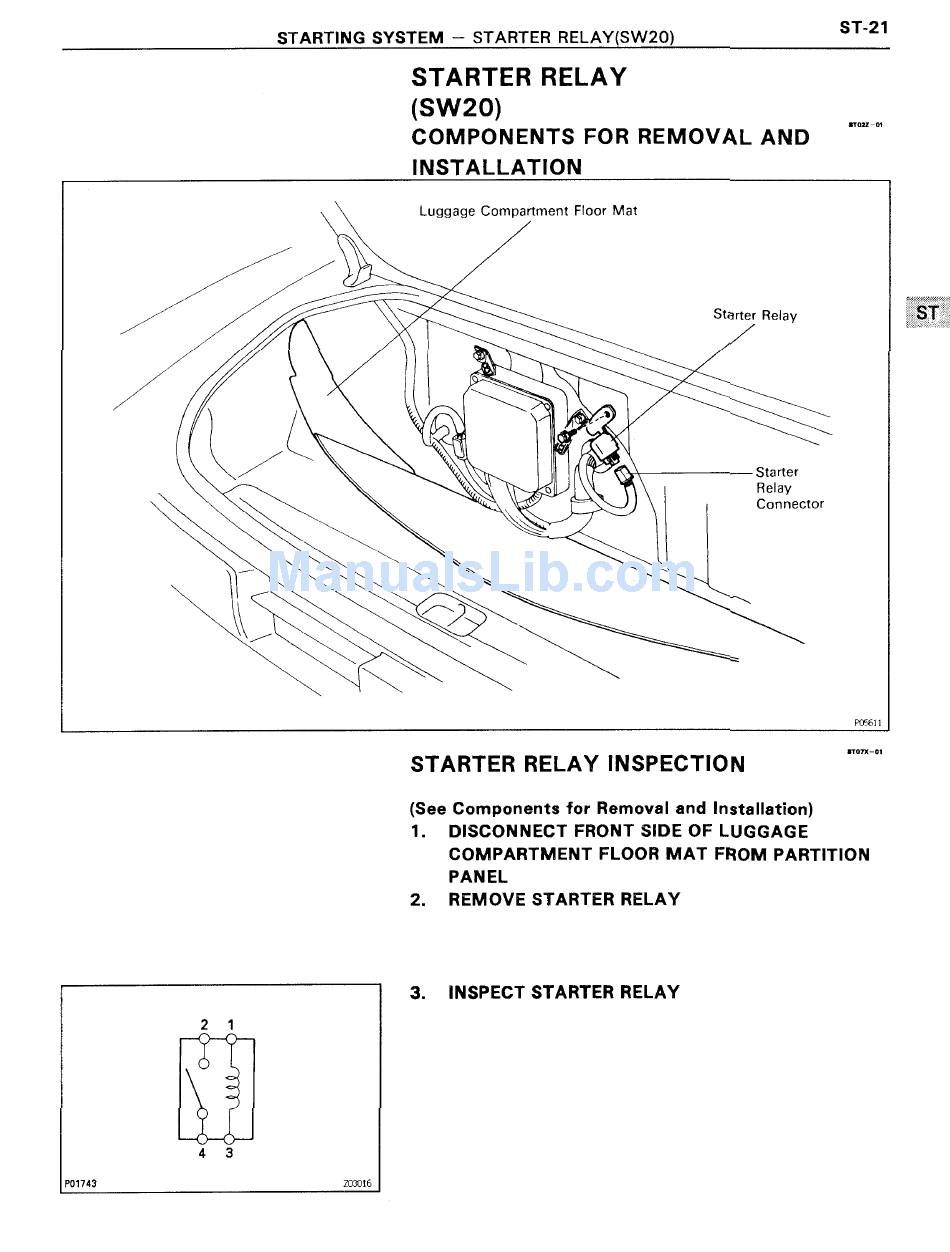

STARTING SYSTEM —- STARTER RELAY(SW20)
ST-21
STARTER RELAY
A
(SW20)
COMPONENTS FOR REMOVAL AND
INSTALLATION
ITOII
Luggage Compartment Floor Mat
&
/
\§
Starter Rel a y
/
'
\
(,
"\ \ \ Qt'
\\Q \ \
\;€.
P05611
2
1
4
3
P01743
203016
STARTER RELAY INSPECTION
(See Components for Removal and Installation)
1.
DISCONNECT FRONT SIDE OF LUGGAGE
l1'07X—OI
COMPARTMENT FLOOR MAT FROM PARTITION
PANEL
2.
REMOVE STARTER RELAY
3.
INSPECT STARTER RELAY
