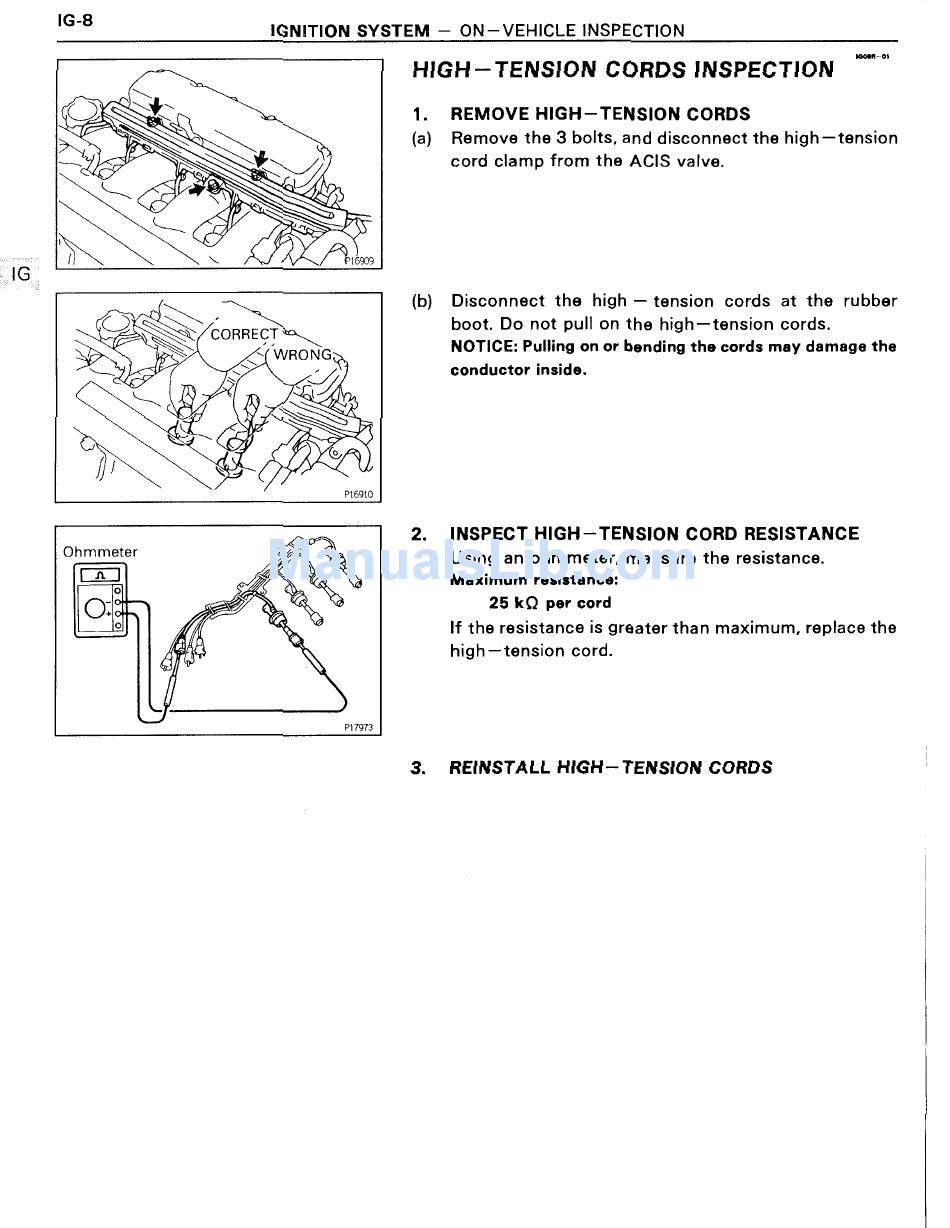

IG-8
IGNITION SYSTEM — ON—VEHlCLE INSPECTION
>\ - 1.
(8)
I 4
s 2
"
I 16909
I
K
gs. °ivRONG
R R
KI/\ >1
////
» /
§' ; . Z Y»* \ l
P169l0
lb)
Ohmmeter
EH
txgn
f'//
4/ }.f \§
'_I__-_§:;i5;\\
..\\
\\
. /9' at'_/4'0
at_)
/$8
.9
»
\
'+.
Pl7973
2.
DOUI *0'
HIGH—TENSION CORDS INSPECTION
REMOVE HIGH—TENSION CORDS
Remove the 3 bolts, and disconnect the high—tension
cord clamp from the ACIS valve.
Disconnect the high — tension cords at the rubber
boot. Do not pull on the high—tension cords.
NOTICE: Pulling on or bending the cords may damage the
conductor inside.
INSPECT H|GH—TENSION CORD RESISTANCE
Using an ohmmeter, measure the resistance.
Maximum resistance:
25 kQ per cord
If the resistance is greater than maximum, replace the
high—tension cord.
3. REINSTALL HIGH—-TENSION CORDS
