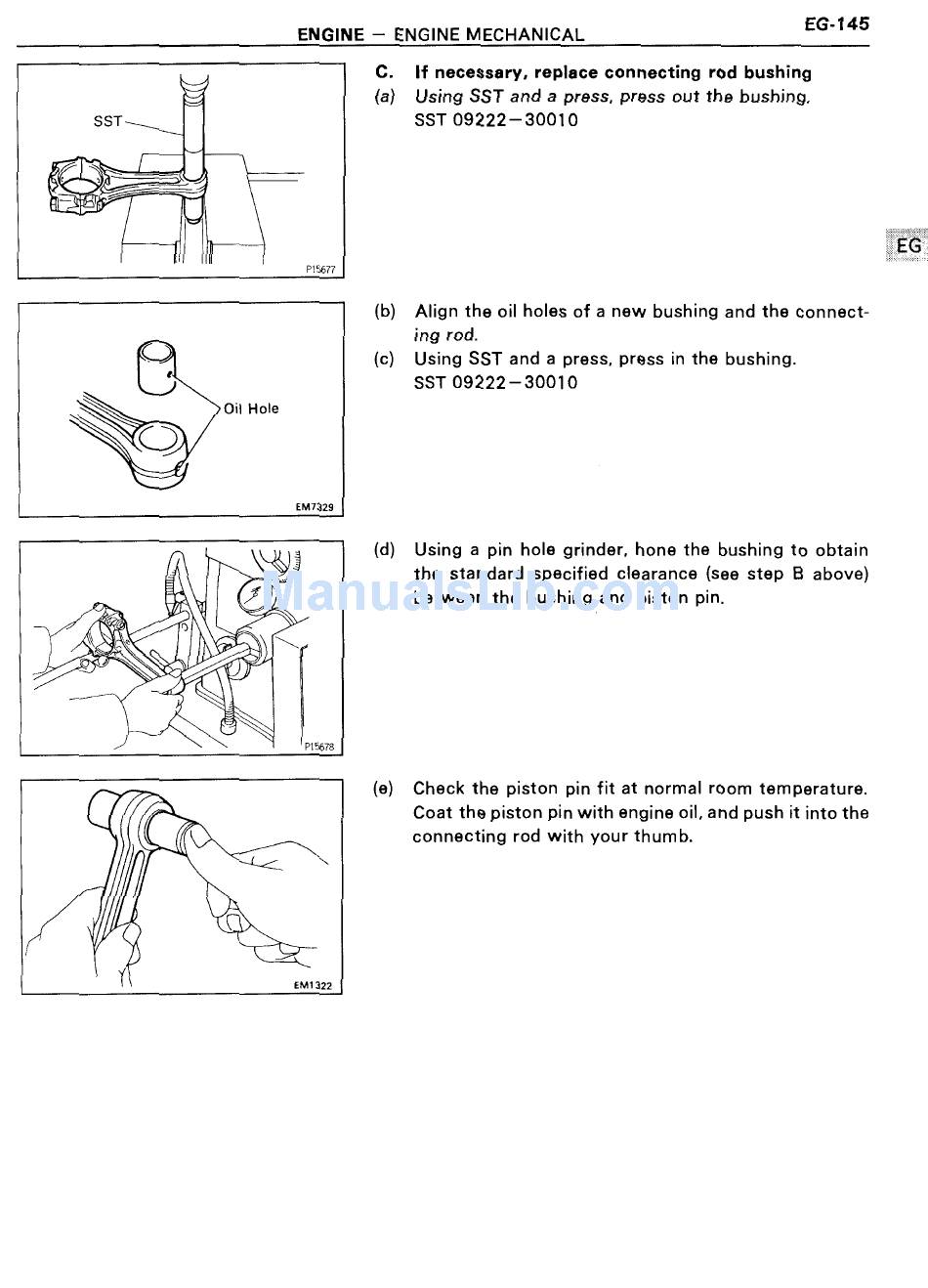

ENGINE — ENGINE MECHANICAL EG-145
SST
I((((
2 I
@Q' ~—~'
II "-11
I-
C. If necessary, replace connecting rod bushing
(a) Using SST and a press, press out the bushing.
SST 09222-30010
Pl 5677
Q (C)
Oil Hole
C)
(b) Align the oil holes of a new bushing and the connect-
ing rod.
Using SST and a press, press in the bushing.
SST 09222—30010
EM7329
/
Qt . . . ' / A .
IF15678
(d) Using a pin hole grinder, hone the bushing to obtain
the stand d ' '
ar specified clearance (see step B above)
between the bushing and piston pin.
I
EM1322
(e) Check the piston pin fit at normal room temperature.
Coat the piston pin with engine oil, and push it into the
connecting rod with your thumb.
\
