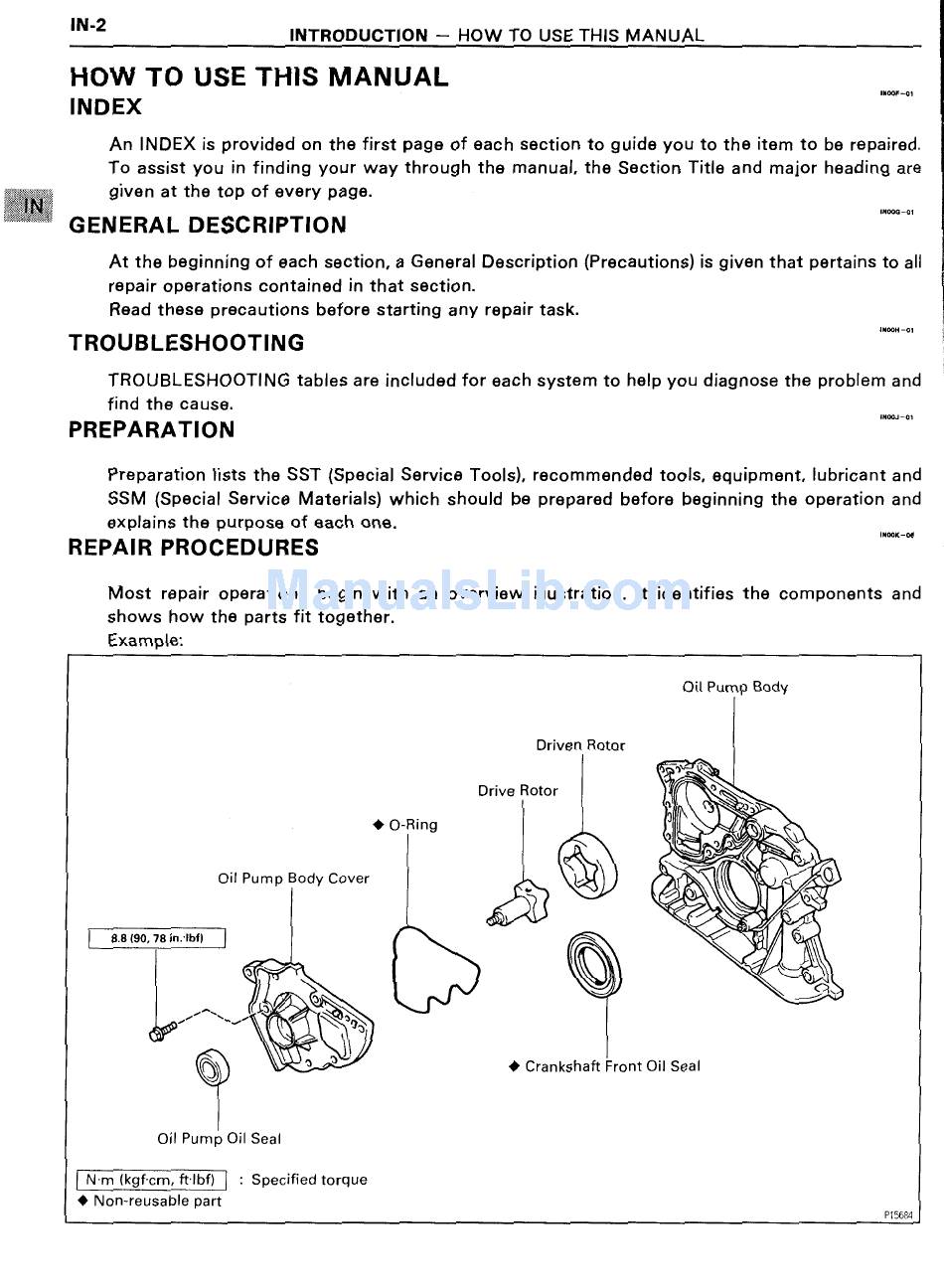

IN-2 INTRODUCTION -— HOW TO USE THIS MANUAL
HOW TO USE THIS MANUAL
INDEX
An INDEX is provided on the first page of each section to guide you to the item to be repaired.
To assist you in finding your way through the manual, the Section Title and major heading are
given at the top of every page.
GENERAL DESCRIPTION
At the beginning of each section, a General Description (Precautions) is given that pertains to all
repair operations contained in that section.
Read these precautions before starting any repair task.
TROUBLESHOOTING
TROUBLESHOOTING tables are included for each system to help you diagnose the problem and
find the cause. _
PREPARATION
IIIOOF -01
IIDOII —0I
Preparation lists the SST (Special Service Tools), recommended tools, equipment, lubricant and
SSM (Special Service Materials) which should be prepared before beginning the operation and
explains the purpose of each one.
IIOOK—0G
REPAIR PROCEDURES
Most repair operations begin with an overview illustration. It identifies the components and
Oil Pump Body
@ @
K' / Q » _ .
e%», , @
O O Ring
Oil Pump Body Cover
shows how the parts fit together.
Example:
Driven Rotor
Drive Rotor ®
/~\
® 0 Crankshaft Front Oil Seal
Oil Pump Oil Seal
N-m (kgf~cm, ft-lbf) : Specified torque
Q Non-reusable part
Pl5684
