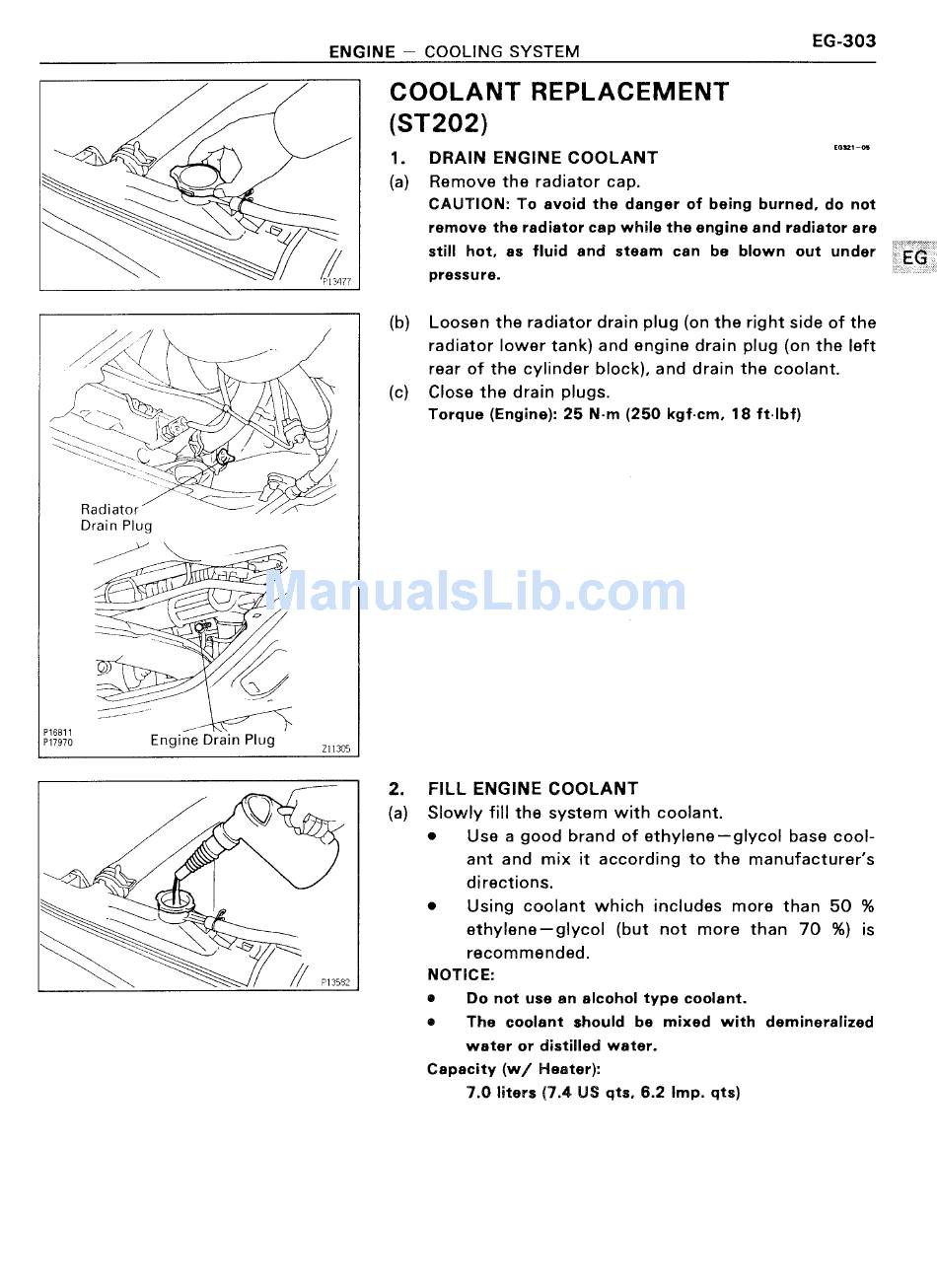

COOLANT REPLACEMENT
(ST202)
DRAIN ENGINE COOLANT
Remove the radiator cap
CAUTION To avoid the danger of being burned do not
remove the radiator cap while the engine and radiator are
still hot as fluid and steam can be blown out under
7 pressure
Loosen the radiator drain plug (on the right side of the
radiator lower tank) and engine drain plug (on the left
rear of the cylinder block) and drain the coolant
Close the drain plugs
Torque (Engine) 25 N m (250 kgf cm 18 ft Ibf)
305
FILL ENGINE COOLANT
a Slowly fill the system with coolant
Use a good brand of ethylene—glycol base cool-
ant and mix it according to the manufacturers
directions
Using coolant which includes more than 50 9'
ethylene—glycol (but not more than 70 %) is
recommended
P13582
Do not use an alcohol type coolant
The coolant should be mixed with demineralized
water or distilled water
Capacity (w/ Heater)
7 O liters (7 4 US qts 6 2 Imp qts)
