E6440 ENGINE — ENGINE MECHANICAL
PISTON AND CONNECTING ROD '°""°'
/_\\ DISASSEMBLY
1/ ',7'?!
I,-9'
Pl5651
,,<\_
r > ' E
k 0
0* \
P15662
%-/Ix PI5663
'V. Q i
39$
\
P15664

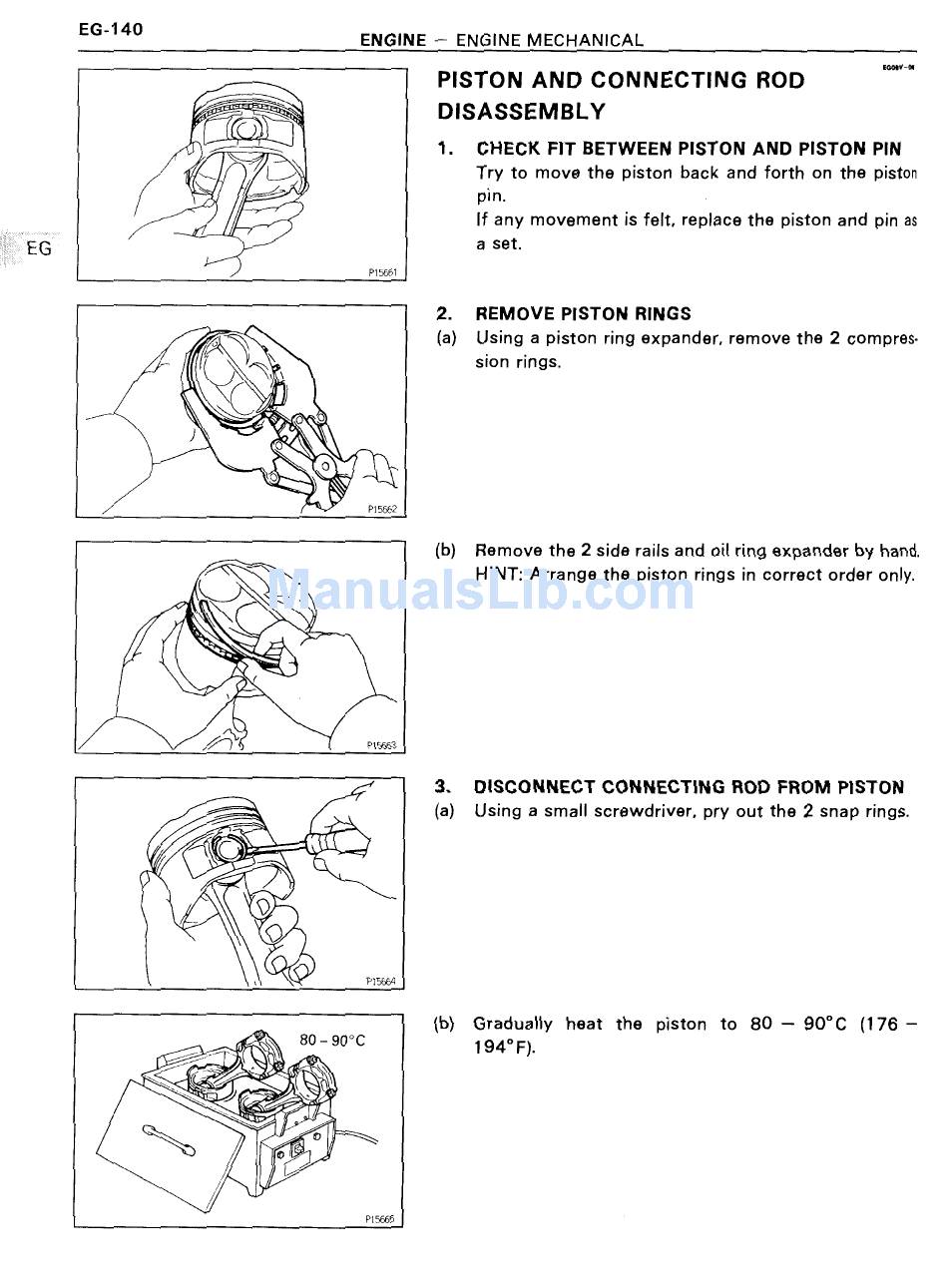

1. CHECK FIT BETWEEN PISTON AND PISTON PIN
Try to move the piston back and forth on the piston
pin.
If any movement is felt, replace the piston and pin as
a set.
2. REMOVE PISTON RINGS
(a) Using a piston ring expander, remove the 2 compres-
sion rings.
(b) Remove the 2 side rails and oil ring expander by hand.
HINT: Arrange the piston rings in correct order only.
3. DISCONNECT CONNECTING ROD FROM PISTON
1 (a) Using a small screwdriver, pry out the 2 snap rings.
0-
i:,.._---I(ll._
' ' \
y (b) Gradually heat the piston to 80 — 90°C (176 —
"Q" 80—90°C 194°
Q
\a
P15665
