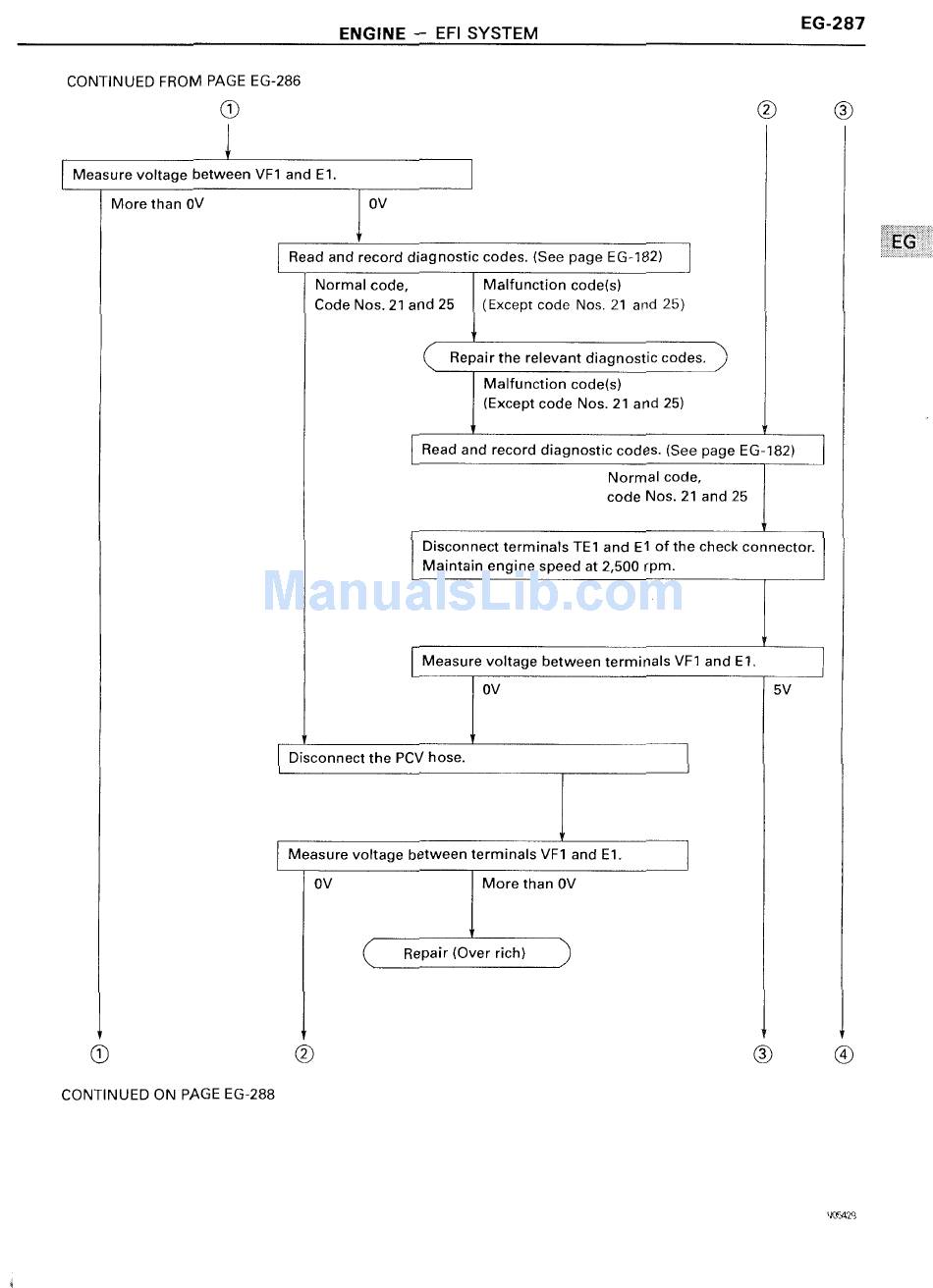

ENGINE - EFI SYSTEM EG'287
CONTINUED FROM PAGE EG-286
(D @ C5)
I Measure voltage between VF1 and E1. I
OV
More than 0V
l EG
I Read and record diagnostic codes. (See page EG-182) I
Normal code, Malfunction code(s)
Code Nos. 21 and 25 (Except code Nos. 21 and 25)
< Repair the relevant diagnostic codes. D
Malfunction code(s)
(Except code Nos. 21 and 25)
Y
I Read and record diagnostic codes. (See page EG-182) I
Normal code,
code Nos. 21 and 25
Y
Disconnect terminals TE1 and E1 of the check connector.
Maintain engine speed at 2,500 rpm.
I
I Measure voltage between terminals VF1 and E1. I
OV 5V
Y
I Disconnect the PCV hose. I
Measure voltage between terminals VF1 and E1. I
OV More than 0V
Repair (Over rich)
Y I Y
® ® C1' ) @
CONTINUED ON PAGE EG—288
