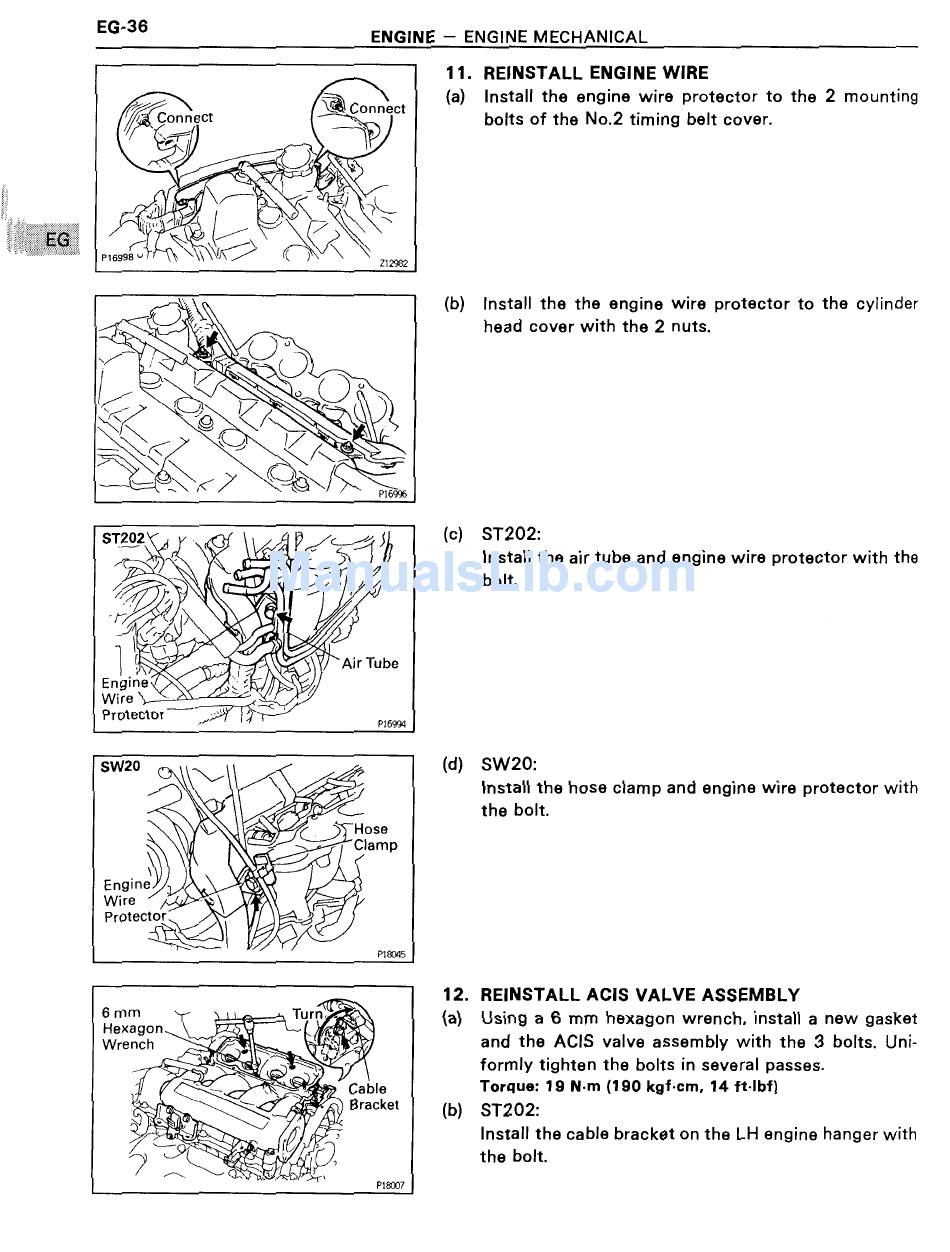

EG'36 ENGlNE - ENGINE MECHANICAL
ye
onnect nnect
Q)
Pleaslaqll l\ 212982
/ M
, "S Q-1% "/
r %¢e/
t 9 <<% <1
5/ I 'C
- ts
V\ * K / P169%
sT_2o2 _ ¢ 1 ¢ (d//j
_, V V
$4" .-I-[*5 Q
\ 1 '/
Tlféloll
'4' AirTube
Protect0r'T'/~" HQ '
\
P169911
swzo ,' \/
9//,
Q
X
-
Hose
U 5 Clamp
. .t('
rotector »,
l 1/' P180415
>
[iii Q?-J
Q!
s
I
5mm ,,___ Turn,
Hexagon ' - fig'
Wrench _ ' Q . fay
/ _ . ,.;_ § Q f
'-":=2' Cable
4: /
g , Bracket
. u, "
T. >
/7 :\..- .» £2
i '/l Pleoor
11. REINSTALL ENGINE WIRE
(a) Install the engine wire protector to the 2 mounting
bolts of the No.2 timing belt cover.
(b) Install the the engine wire protector to the cylinder
head cover with the 2 nuts.
(c) ST202:
Install the air tube and engine wire protector with the
bolt.
(d) SW20:
Install the hose clamp and engine wire protector with
the bolt.
12. REINSTALL ACIS VALVE ASSEMBLY
(a) Using a 6 mm hexagon wrench, install a new gasket
and the ACIS valve assembly with the 3 bolts. Uni-
formly tighten the bolts in several passes.
Torque: 19 N-m (190 kgf-cm, 14 ft-Ibf)
(b) ST202:
Install the cable bracket on the LH engine hanger with
the bolt.
