CHARGING SYSTEM — ON—VEHlCLE INSPECTION CH-9
ST202
"Q~~~~._
..
\ ~~~__
, _ _ _ __.-' - O
0 g " O0 O
O...'O O0 O
Q 9
.0
CH0744 CH0004 213018
w/ A/C wl o A/C
Alternator Alternator
98N 98N
y, Idler \
Pulley
Idler
Crankshaft A/C Crankshaft
Compressor
ST2£2/
/ 0/ \ E l
~ sf
(1m"\' \ ' \ r\\§
t U \ <§\<\<\
'/4; \ <\ < \ ' \
\"
PI6941
_g; 3
8-T102 I | sst (B)
I \
SST (A)
A
SST (Al
Ecoooa EC0004
Z130111

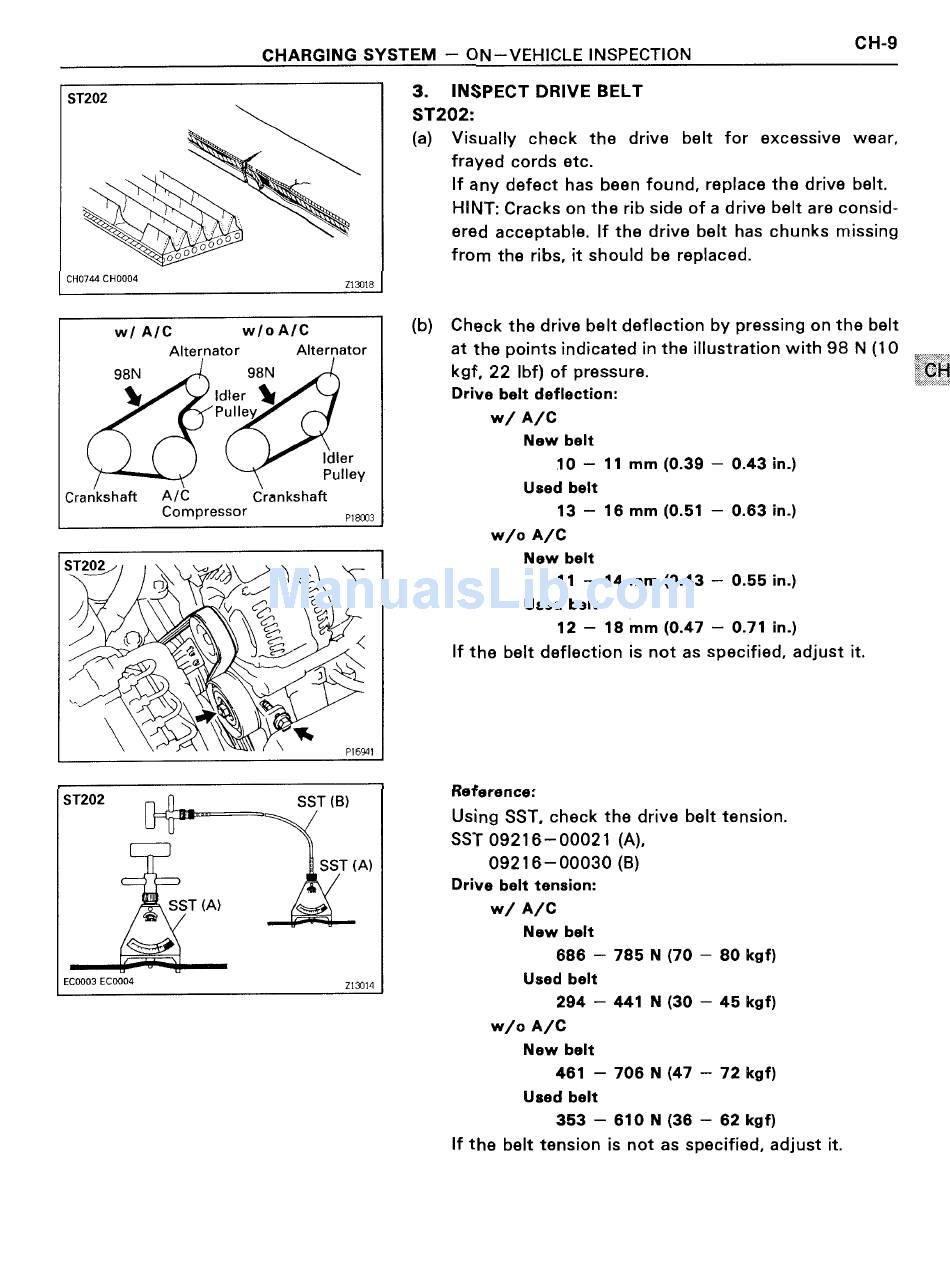

3. INSPECT DRIVE BELT
ST202:
(6)
(b)
Visually check the drive belt for excessive wear,
frayed cords etc.
If any defect has been found, replace the drive belt.
HINT: Cracks on the rib side of a drive belt are consid-
ered acceptable. If the drive belt has chunks missing
from the ribs, it should be replaced.
Check the drive belt deflection by pressing on the belt
at the points indicated in the illustration with 98 N (10
kgf, 22 Ibf) of pressure.
Drive belt deflection:
w/ A/C
New belt
Pulley .10 — 11 mm (0.39 — 0.43 in.)
Used belt
Pm 13 — 1s mm (0.51 — 0.63 in.)
w/o A/C
New belt
11 — 14 mm (0.43 — 0.55 in.)
Used belt
12 - 18 rnm (0.47 - 0.71 in.)
If the belt deflection is not as specified, adjust it.
Reference:
Using SST, check the drive belt tension.
SST 09216-00021 (A),
09216-00030 (B)
Drive belt tension:
w/ A/C
New belt
686 — 785 N (70 — 80 kgf)
Used belt
294 — 441 N (30 — 45 kgf)
w/o A/C
New belt
461 — 706 N (47 — 72 kgf)
Used belt
353 — 610 N (36 — 62 kgf)
If the belt tension is not as specified, adjust it.
