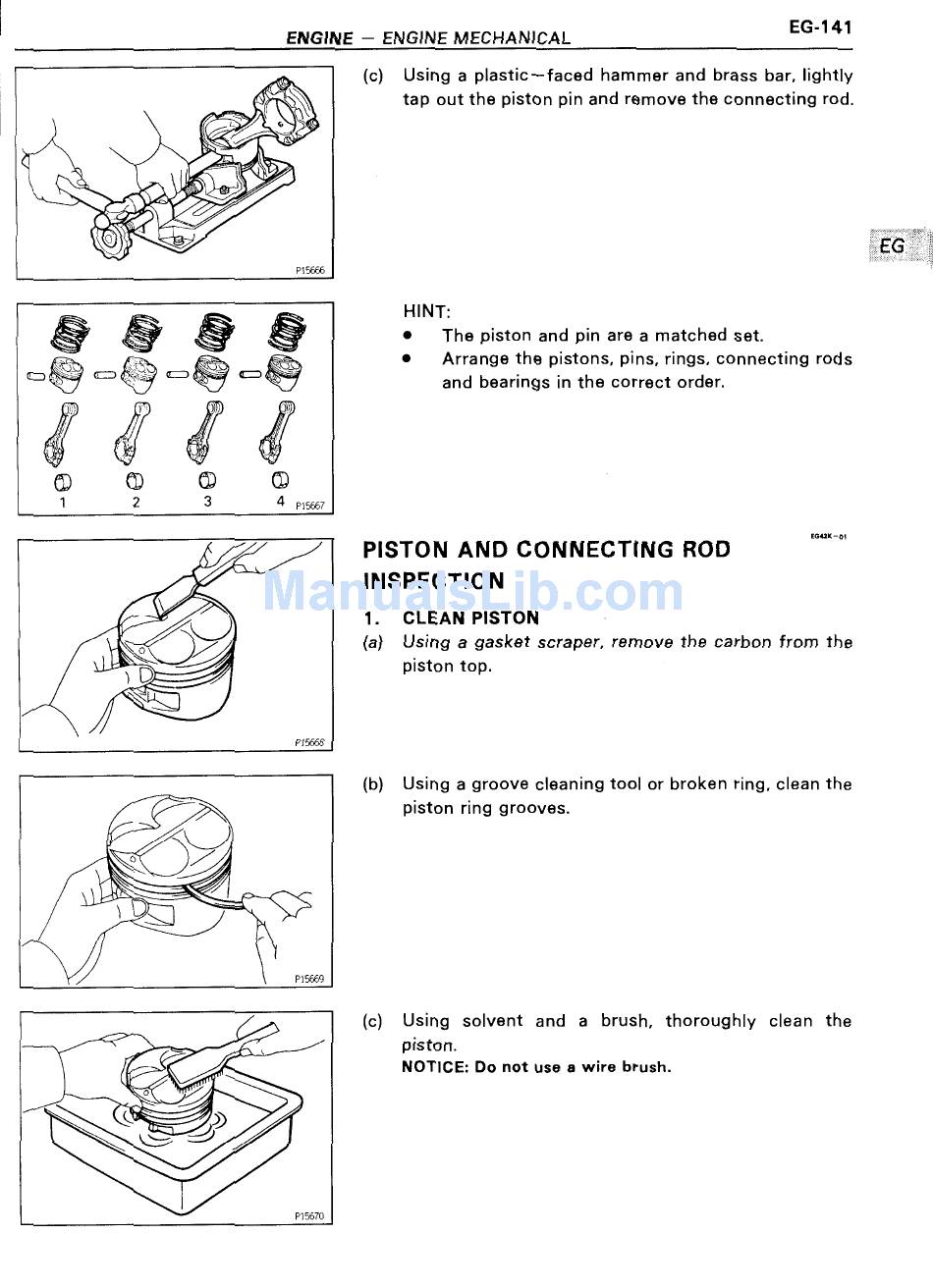

ENGINE — ENGINE MECHANICAL

':?'§'IIIIIIIl"'?

Using a plastic-faced hammer and brass bar, lightly

tap out the piston pin and remove the connecting rod.

The piston and pin are a matched set.

Arrange the pistons, pins, rings, connecting rods

and bearings in the correct order.

PISTON AND CONNECTING ROD

CLEAN PISTON

Using a gasket scraper, remove the carbon from the

Using a groove cleaning tool or broken ring, clean the

piston ring grooves.

Using solvent and a brush, thoroughly clean the

NOTICE Do not use a wire brush
