Mediant 800B MSBR

Session connection attribute ('c=' field)

Media connection attribute ('c=' field)

Media port number

RTCP media attribute IP address and port

Each SBC leg allocates and uses the device's local ports (e.g., for RTP\RTCP\fax). The

local ports are allocated from a Media Realm associated with each leg. The legs are

associated with a Media Realm as follows: If the leg's IP Group is configured with a Media

Realm, then this is the associated Media Realm; otherwise, the leg's SRD Media Realm is

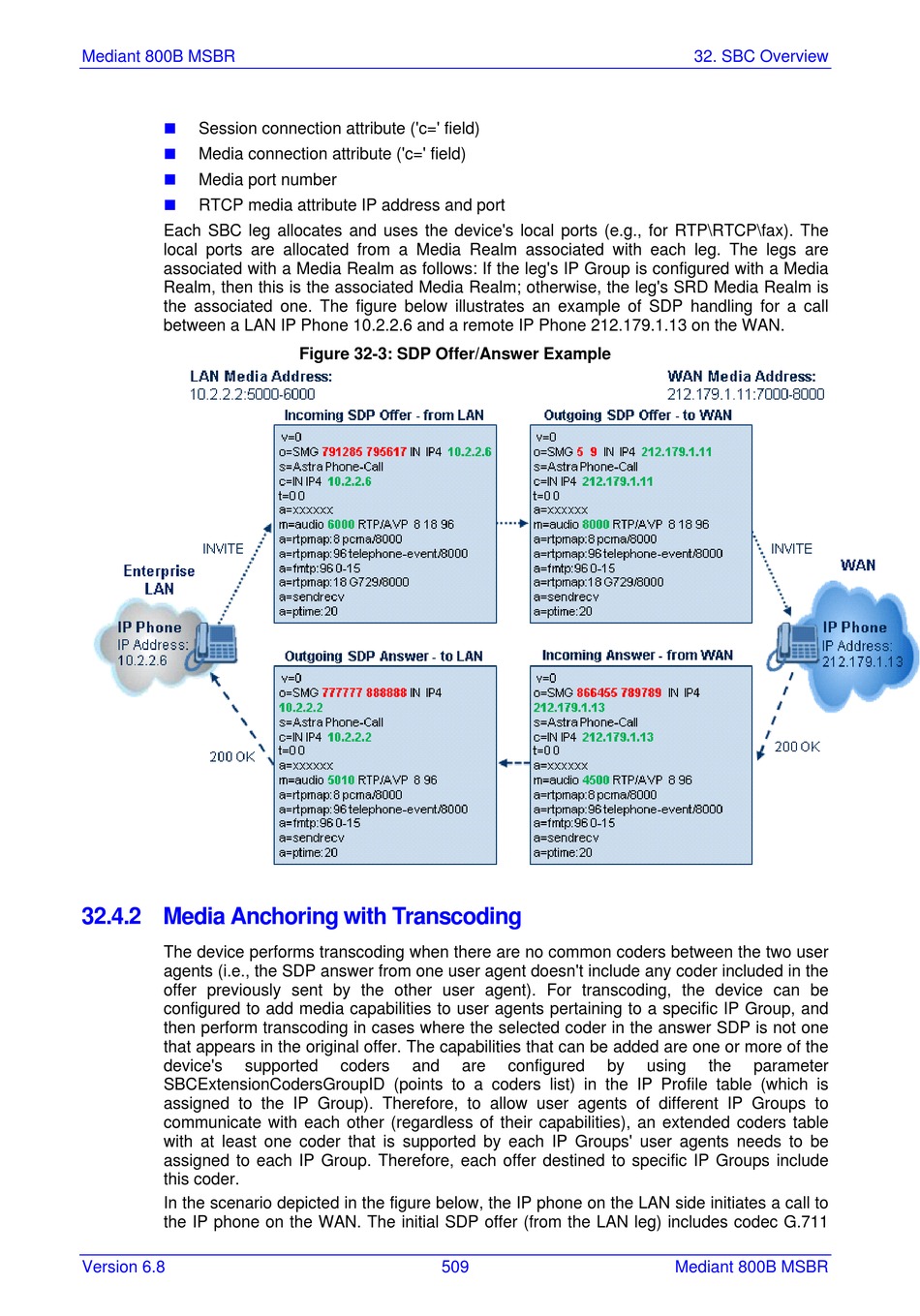

the associated one. The figure below illustrates an example of SDP handling for a call

between a LAN IP Phone 10.2.2.6 and a remote IP Phone 212.179.1.13 on the WAN.

32.4.2 Media Anchoring with Transcoding

The device performs transcoding when there are no common coders between the two user

agents (i.e., the SDP answer from one user agent doesn't include any coder included in the

offer previously sent by the other user agent). For transcoding, the device can be

configured to add media capabilities to user agents pertaining to a specific IP Group, and

then perform transcoding in cases where the selected coder in the answer SDP is not one

that appears in the original offer. The capabilities that can be added are one or more of the

SBCExtensionCodersGroupID (points to a coders list) in the IP Profile table (which is

assigned to the IP Group). Therefore, to allow user agents of different IP Groups to

communicate with each other (regardless of their capabilities), an extended coders table

with at least one coder that is supported by each IP Groups' user agents needs to be

assigned to each IP Group. Therefore, each offer destined to specific IP Groups include

In the scenario depicted in the figure below, the IP phone on the LAN side initiates a call to

the IP phone on the WAN. The initial SDP offer (from the LAN leg) includes codec G.711

Figure 32-3: SDP Offer/Answer Example

Mediant 800B MSBR
