Admin | Remote; Figure 13-11. Admin | Remote Page - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module Interface
13.6.2.2.5

Admin | Remote

For details pertaining to the configuration parameters available on this page,
see Chapter 5. FRONT PANEL OPERATION and Sect. 6.4 SNMP INTERFACE.
This page is available only if you have logged in using the Administrator Name
and Password.
Use this page to set and returns administration information for:
•
The Simple Network Management Protocol (SNMP) feature
•
The Feature and Unlock codes for Vipersat Management
•
The IP address of the DHCP Server
Click [Submit] to save changes made to this page.

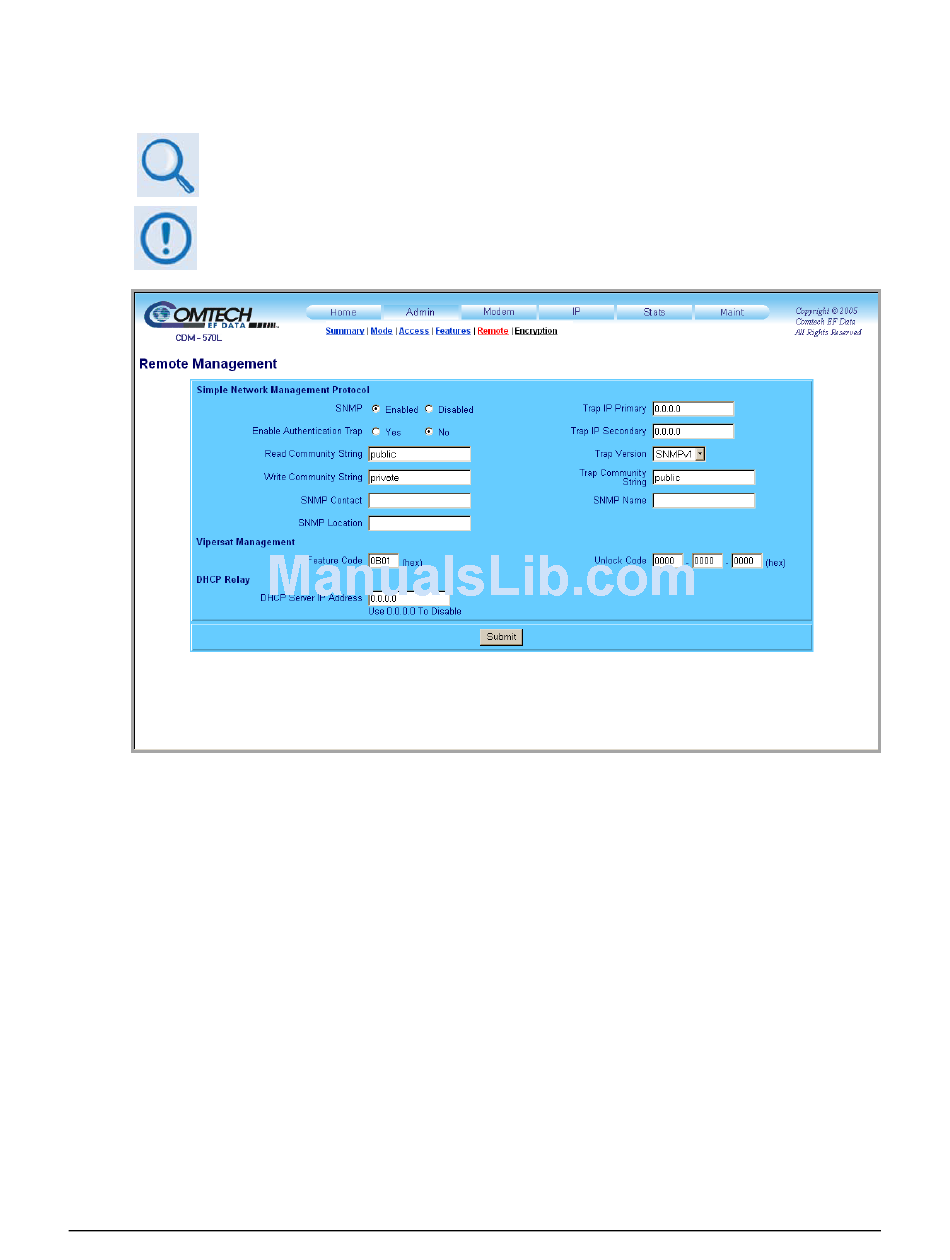

Figure 13-11. Admin | Remote page

13–31
Revision 12
MN/CDM570L.IOM
