CDM-570 Satellite Modem with Optional IP Module
Base Modem Web Server Interface
7.3.2.2 Admin | Remote
For details pertaining to the configuration parameters available on this page, see
Chapter 5. FRONT PANEL OPERATION and Sect. 6.3 SNMP INTERFACE.
This page is available only if you have logged in using the Administrator Name and
Password.
The Administrator may use this page to set and return administration information for the
CDM-570/570L Simple Network Management Protocol (SNMP) feature.
SNMP
•
Simple Network Management – Use the drop-down menu to select as Disable or Enable.
•
Enable Authentication Trap – Use the drop-down menu to select as Disable or Enable.
•
Enter an SNMP Read Community String. The factory default SNMP Read Community
String is public. The string can be any combination of characters and a length of 4 to 15
characters.
•
Enter an SNMP Write Community String. The factory default SNMP Write Community
String is private. The string can be any combination of characters and a length of 4 to 15
characters.
•
Enter an SNMP Contact; SNMP Name; and SNMP Location. Each field can be any
combination of characters and a length of 0-20 characters.
•
Assign up to two SNMP Trap IP Addresses.

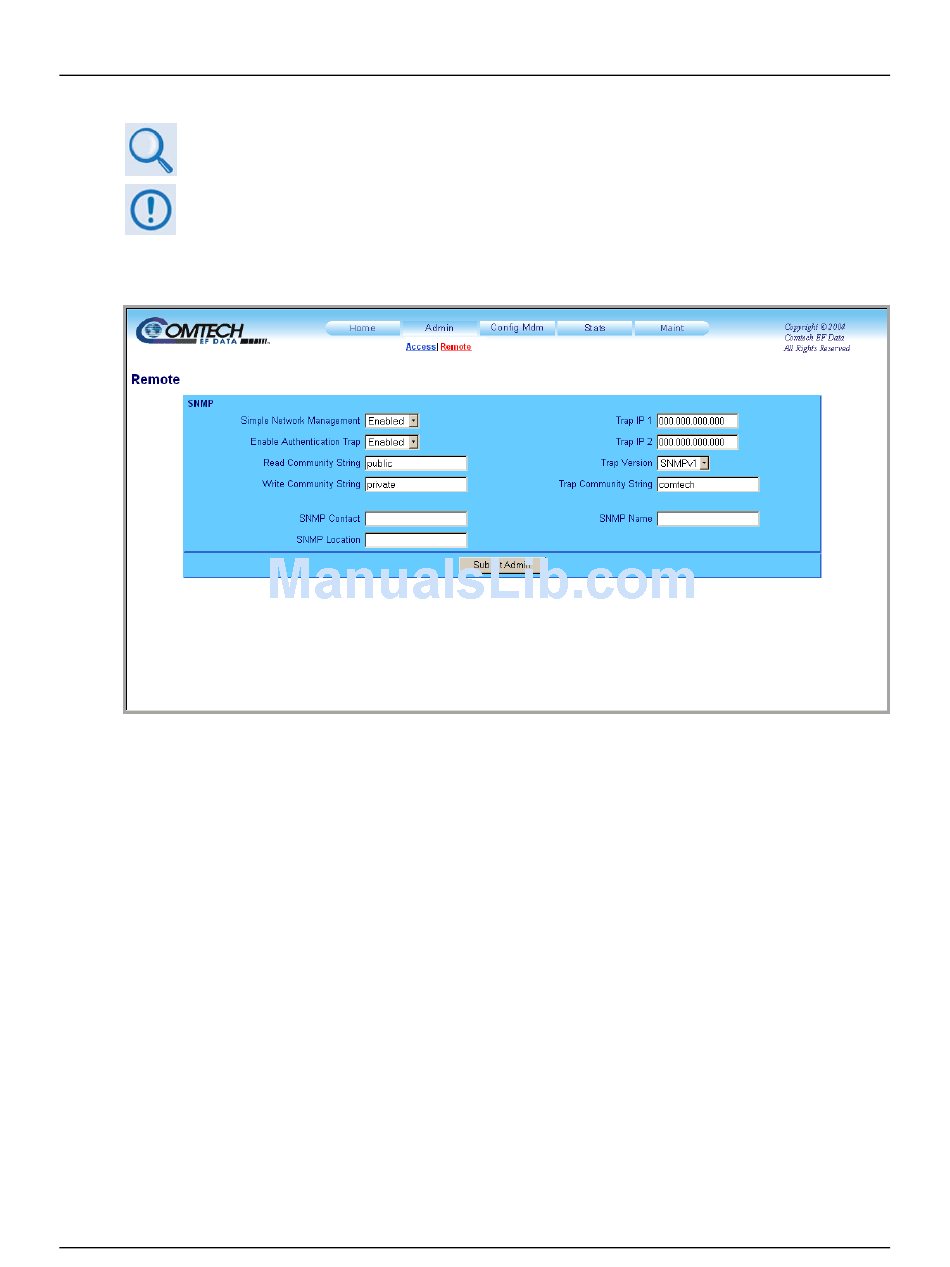

Figure 7-7. Admin | Remote page
