14.2.11 Operations and Maintenance Page

Activate the Operations and Maintenance page from the Main Menu page.
The Operations and Maintenance page contains the following options/fields:
Selection
Unit Uptime
Unit Information
IP Module Boot From
Base Modem Boot From
Entry Description
[RO] • If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Redundant Management
Subnet
• If Offline Redundant CDM-570/570L – displays Redundant Management
Subnet

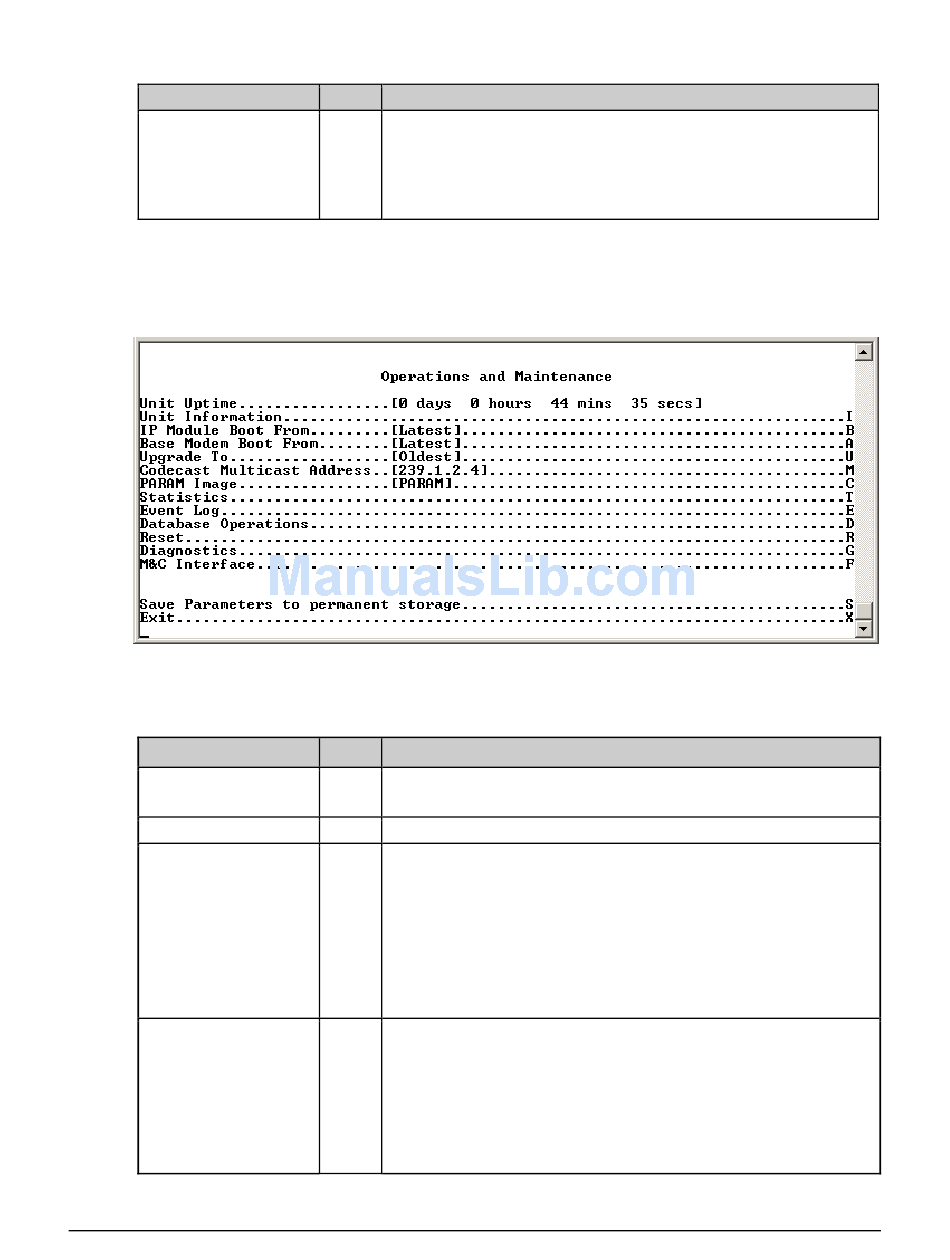

Figure 14-35. Operations and Maintenance page

Entry Description
Displays time in days, hours, mins and secs since the last time the IP Module
[RO]
was rebooted.
I Displays unit current operational Software information.
B Determines which version of the IP Module software package (includes
Application, FPGA, and FFPGA) is loaded upon bootup. The possible options
are:
0 – Latest: Boot the newest software package based upon date.
1 – Image1: Boot the software package loaded into the first slot in permanent
storage.
2 – Image2: Boot the software package loaded into the second slot in
permanent storage.
A Determines which version of the Base Modem firmware is loaded upon boot-
up. The possible options are:
0 – Latest: Boot the newest software package based upon date.
1- Image1: Boot the software package loaded into the first slot in permanent
storage.
2 – Image2: Boot the software package loaded into the second slot in
permanent storage.
