Ip | Qos Mode; Figure 13-20. Ip | Qos Mode Page - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module Interface
13.6.2.4.4

IP | QoS Mode

This section depicts the CDM-570/570L IP Module HTTP Interface with Quality of
Service (QoS) installed on the CDM-570/570L. QoS is a FAST Feature option
which must be purchased from Comtech EF Data.
To access these QoS pages, this optional feature must first be installed by entering the
appropriate FAST Access Code from the CDM-570/570L front panel; QoS functionality must
then be enabled using the 'Admin | Features' page.
Use this page to define the operational rules for the QoS configuration. Select the option button
for one of the following operational rules/modes:
•
Rule – Max/Priority Mode
•
Rule – Min/Max Mode
•
DiffServ Mode
•
VLAN – Priority/Max Mode
Click [Submit] to save changes made to this page.
For detailed QoS operational overview and rule configuration information, refer
to the following sections in this manual:
QoS Rule/Mode
Max/Priority Mode
Min/Max Mode
DiffServ

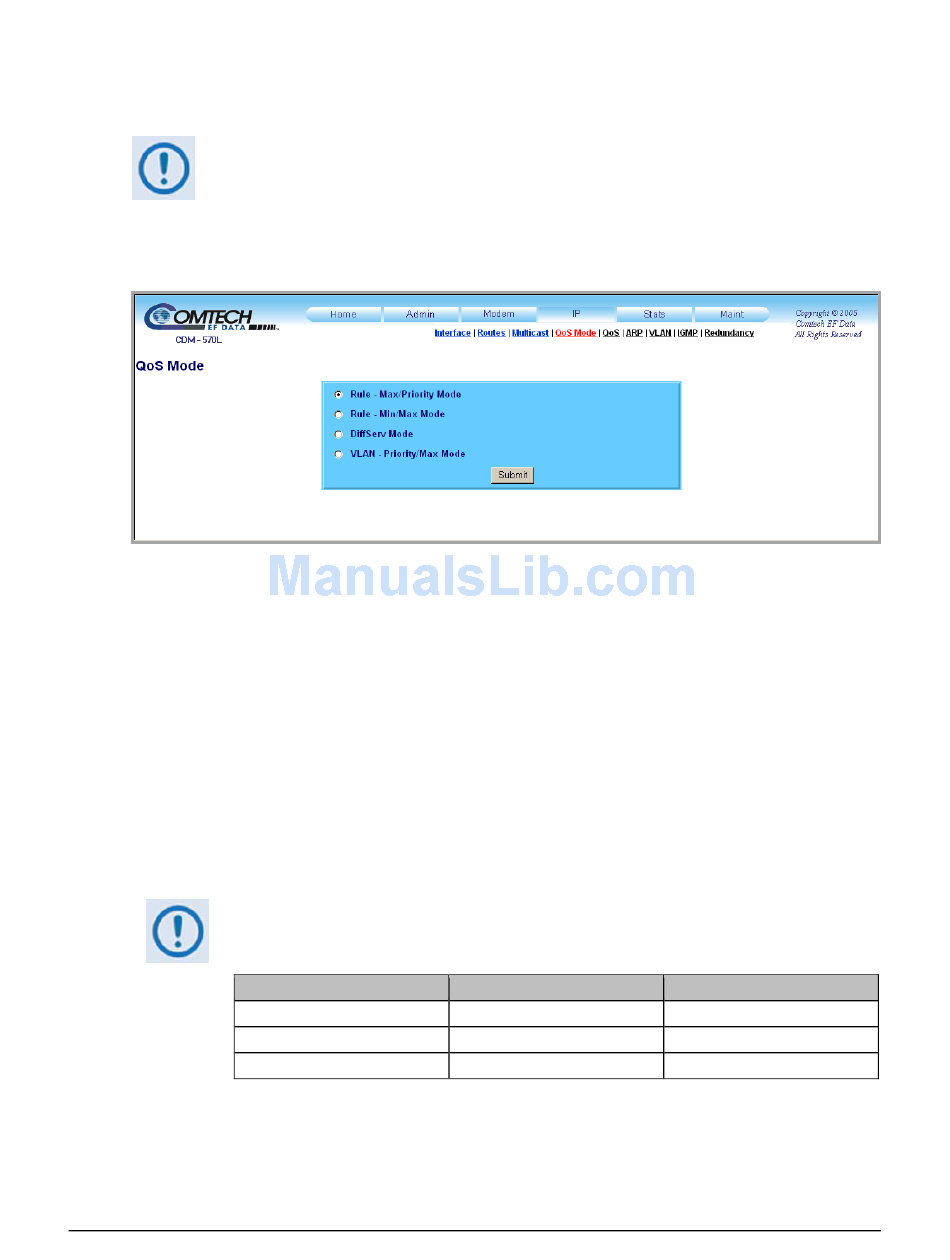

Figure 13-20. IP | QoS Mode page

Overview
See Sect. 13.4.5.1
See Sect. 13.4.5.2
See Sect. 13.4.5.3
13–44
Revision 12
MN/CDM570L.IOM
Configuration Info
See Sect. 14.2.3.1
See Sect. 14.2.3.2
See Sect. 14.2.3.3
