Figure 14-31. Alarm Mask Configuration Page; Alarm Mask Configuration - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
14.2.9.6

Alarm Mask Configuration

Activate the Alarm Mask Configuration page from the Configuration page.
The Alarm Mask Configuration page contains the following options/fields:
Selection
Tx FIFO
G.703 BPV
Tx AIS
RX AGC
E /N
b 0
Rx AIS
Buffer Slip
External Reference
BUC
LNB

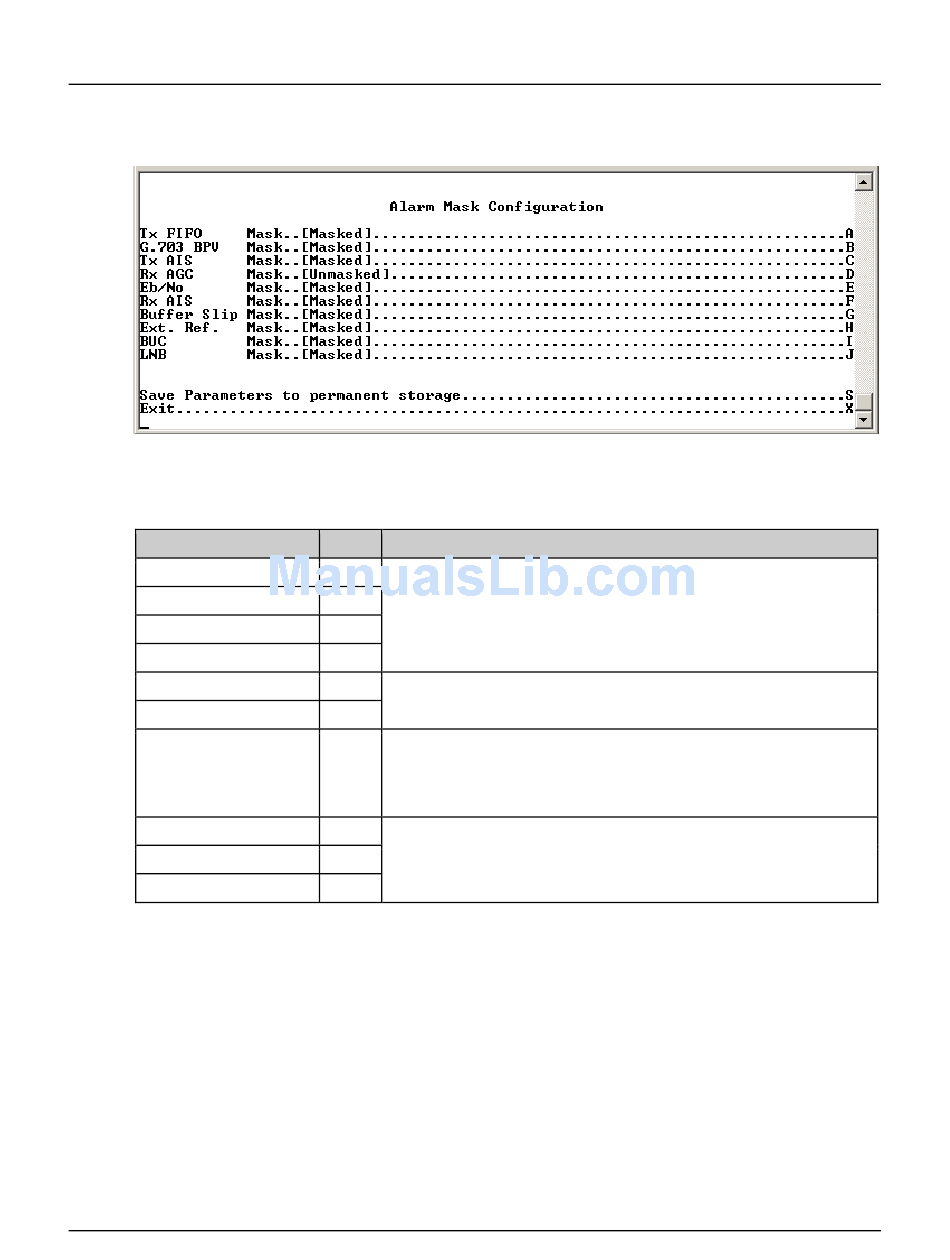

Figure 14-31. Alarm Mask Configuration Page

Entry Description
A
Select as Masked or Unmasked.
B
NOTE: This setting should always be set as Masked with IP as the data
C
interface.
D
E
Select as Masked or Unmasked.
F
G Select as Masked or Unmasked.
NOTE: This setting should always be set as Masked with IP as the data
interface.
H
I Select as Masked or Unmasked.
J
