CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
14.2.11.2
Statistics Page
Activate the Statistics Menu page from the Operations and Maintenance page.
The Statistics Menu page contains the following options/fields:
All updates for Statistics information will occur once every 6 seconds.
Selection
IP Statistics
QoS Statistics
Ethernet Statistics
WAN Statistics
Compression Statistics
CPU Statistics
VLAN Statistics
Clear all statistics

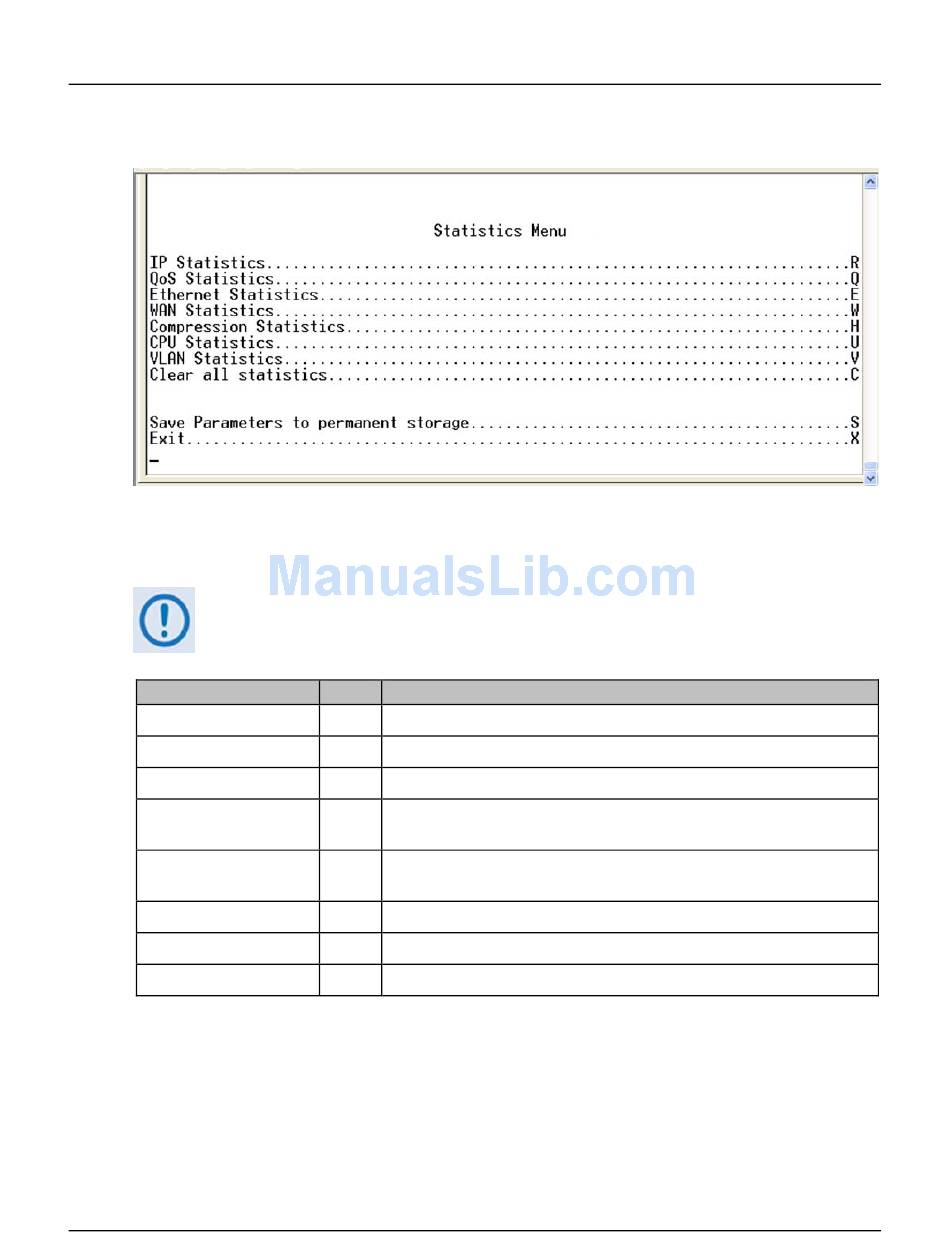

Figure 14-37. Statistics Menu
Entry
Description
R
Displays the statistics for IP Routing and allows counters to be reset.
Q
Displays the statistics for QoS and allows counters to be reset.
E
Displays the statistics for the Ethernet Port and allows counters to be reset.
W
Displays the statistics for the WAN (HDLC) Port and allows counters to be
reset.
H
Displays the statistics for Header & Payload Compression and allows
counters to be reset.
U
Displays CPU Usage % (percentage)
V
Displays the statistics for the VLAN entries and allows counters to be reset.
C
Globally resets all statistics counters.
14–53
Revision 12
MN/CDM570L.IOM
