CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation

14.2.11.2.1 IP Routing Statistics Page

Activate the Statistics for IP Routing/EasyConnect page from the Statistics Menu page. This page
displays counts of the number of packets routed in the IP Module.
The Statistics for IP Routing/EasyConnect page contains the following options/fields:
Selection
From Ethernet – Total
To Ethernet – Total
To Ethernet – Unicasts
To Ethernet – Multicasts
To Ethernet – Broadcasts
From Satellite – Total
To Sat – Total
To Sat – Unicasts
To Sat – Multicasts
To Sat – Broadcasts
From Endstation – Total
To Endstation – Total
Received IGMP Packets
Received IP Options
Packets
Reset All Counters
Filter/Drop Statistics

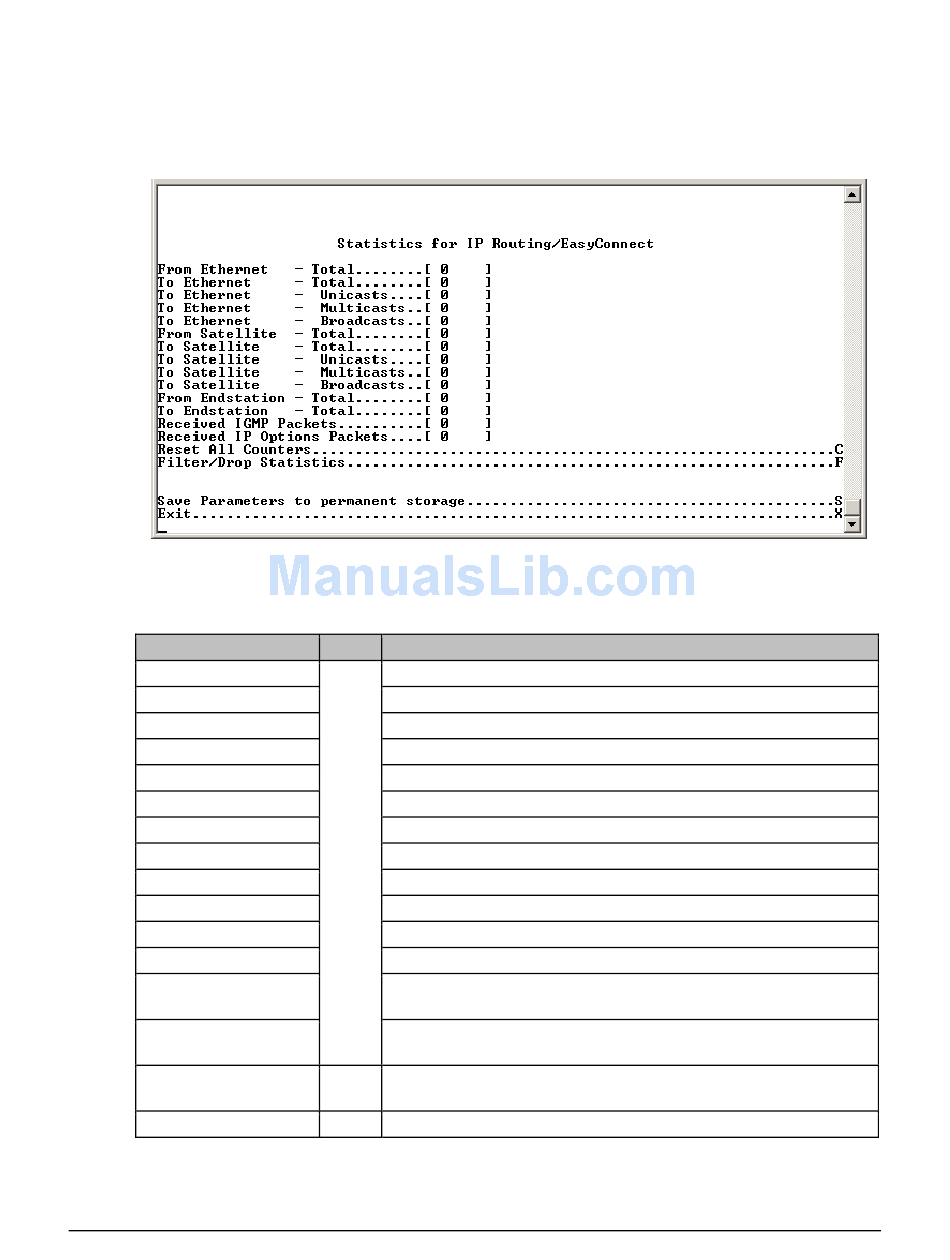

Figure 14-38. IP Statistics page

Entry
Ethernet Statistics Page, Rx Good Frames
[RO]
Ethernet Statistics Page, Tx Good Frames
Unicast packets to LAN
Multicast packets to LAN
Broadcast packets to LAN
WAN Statistics Page, Rx HDLC Packet Count
WAN Statistics Page, Tx HDLC Packet Count
Unicast packets to WAN
Multicast packets to WAN
Broadcast packets to WAN
Packets sent from IP Module
Packets directed to IP Module
Internet Group Management Packets received (used for management of
multicast traffic).
Number of IP Options packets received.
C Executing this menu option resets all gathered WAN, Ethernet and IP
Routing statistics to zero.
F Displays the Filter Statistics page.
14–54
Description
Revision 12
MN/CDM570L.IOM
