Admin | Remote - Comtech EF Data CDM-710 Installation And Operation Manual

CDM-710/L Broadcast Satellite Modem
Ethernet Interface Operation

8.5.2.2 Admin | Remote

Sect. 8.2 SNMP Interface
The Administrator must use this page to manage the SNMP (Simple Network
Management Protocol) settings.
Remote
Remote Selection
You must always set the operating mode as "Ethernet" in order to
maintain access to the HTTP Interface.
SNMP
Read / Write / Trap Community Strings – Enter a Community string in any
alphanumeric combination with a length 0 to 20 characters. The factory default
string for each is "public."
SNMP Contact / SNMP Location / SNMP Name – Enter this identity information
in any alphanumeric combination with a length of 0 to 20 characters.
Trap IP 1 / Trap IP 2 – Enter the address in the form XXX.XXX.XXX.XXX. The
Administrator can assign up to two Trap IP addresses.

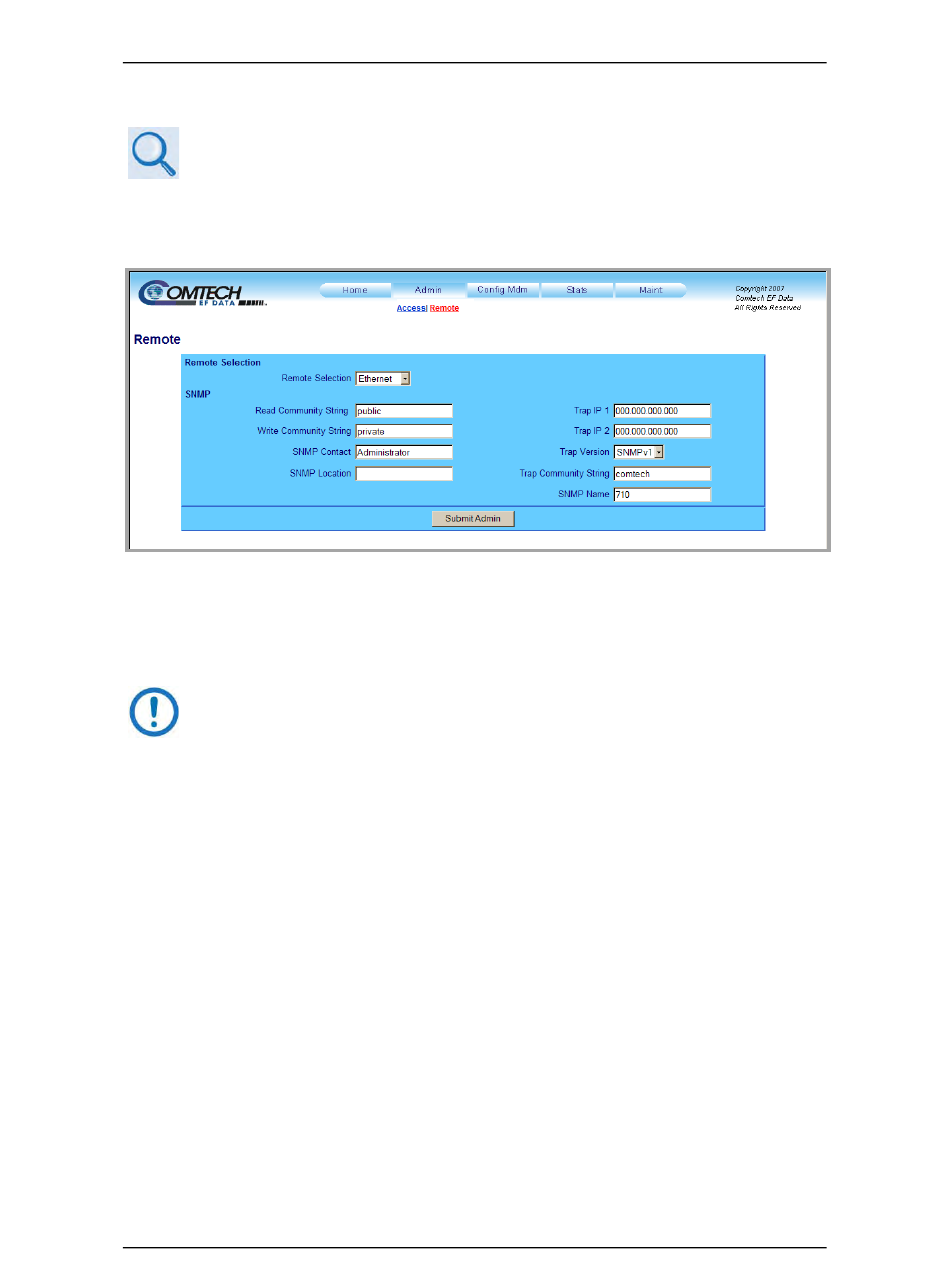

Figure 8-10. 'Admin | Remote' Page
8–18
MN/CDM710.IOM
Revision 12
