CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation

14.2.10 1:1 Redundancy Configuration Page

Activate the 1:1 Redundancy Configuration page from the Main Menu page. Refer to Appendix
H. IP REDUNDANCY for detailed information on the use of the CDM-570/570L Satellite
Modem in redundant operations.
The 1:1 Redundancy Configuration page contains the following options/fields:
Selection
1:1 Redundancy
1:1 Redundancy State
Traffic IP Address
Traffic Subnet Prefix
Length
Management IP Address
(Local Unit)
Management Subnet
Prefix Length (Local Unit)
Management IP Address
(Redundant Unit)

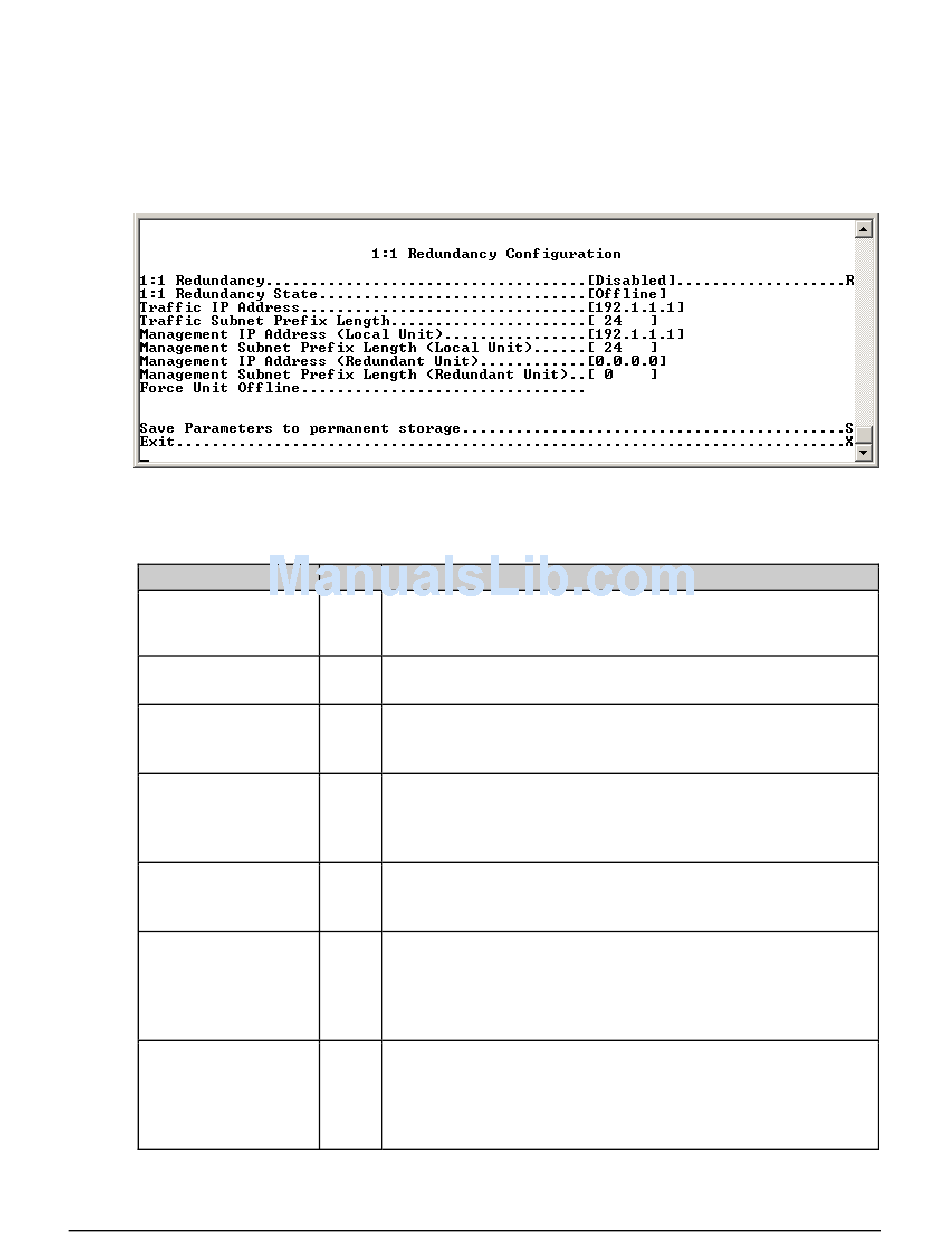

Figure 14-34. 1:1 Redundancy Configuration page

Entry Description
R Toggle Redundancy state.
NOTE: Only enable Redundancy when connected to a CRS redundancy
switch with another CDM-570/570L.
• If standalone CDM-570/570L – displays state as Online.
[RO]
• If Redundant CDM-570/570L – displays state as Online or Offline
• If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – sets Traffic IP (read/write).
• If Offline Redundant CDM-570/570L – displays Traffic IP (read-only).
• If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – sets Traffic Subnet (read/write).
• If Offline Redundant CDM-570/570L – displays Traffic Subnet (read-
only).
[RO] • If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Local Management IP
• If Offline Redundant CDM-570/570L – displays Local Management IP
[RO] • If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Local Management
Subnet
• If Offline Redundant CDM-570/570L – displays Local Management
Subnet
[RO] • If standalone CDM-570/570L – not used.
• If Online Redundant CDM-570/570L – displays Redundant Management
IP Address
• If Offline Redundant CDM-570/570L – displays Redundant Management
IP Address
