CDM-570/570L Satellite Modem with Optional IP Module
Appendix G

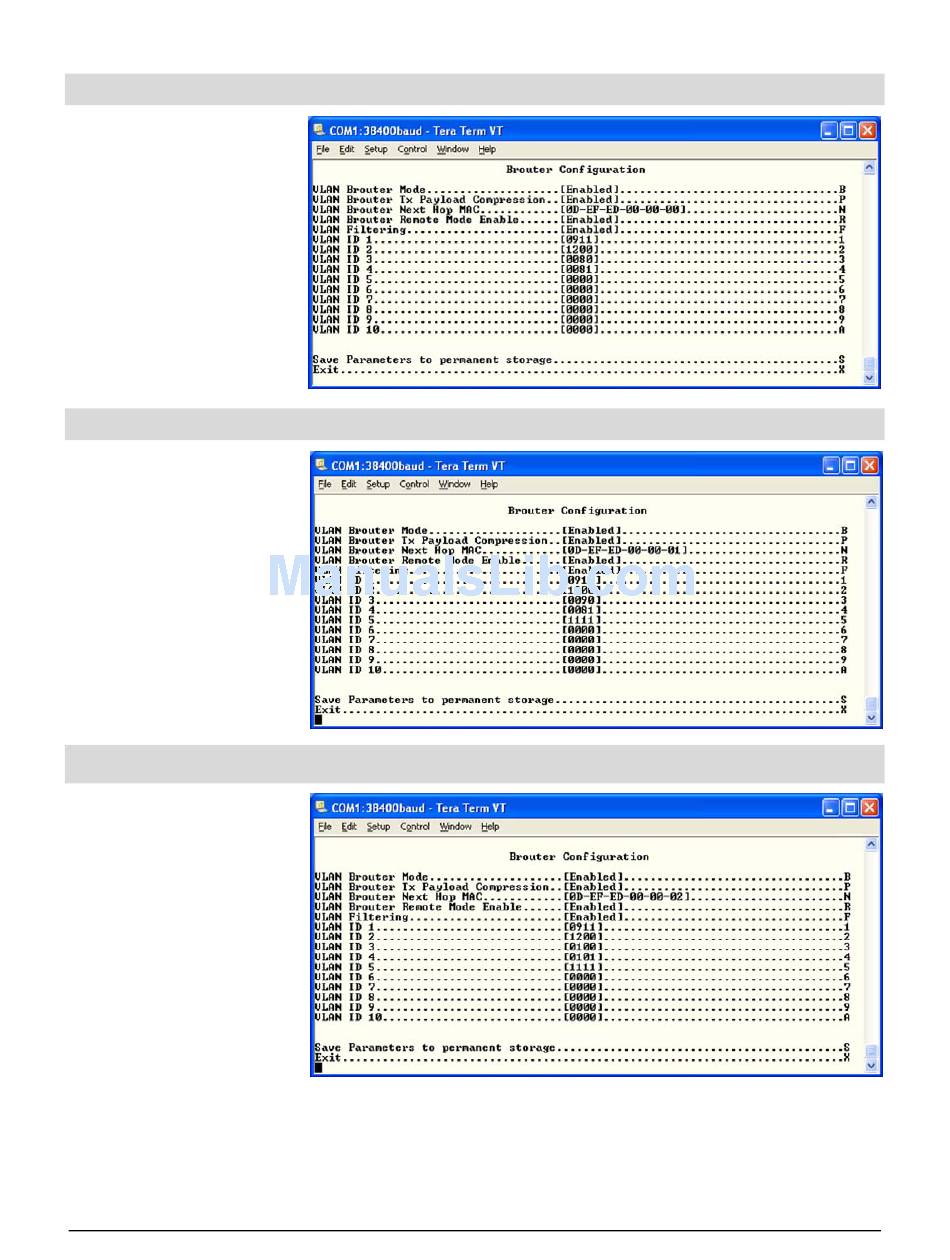

Remote Site 'A' – CDM-570/L-IP Remote Modem 'A'
IP Address: 10.10.1.3
VLAN Match Filter – Enabled
Remote Site 'B' – CDM-570/L-IP Remote Modem 'B'
IP Address: 10.10.1.4
VLAN Match Filter – Enabled
Remote Site 'C' – CDM-570/L-IP Remote Modem 'C'
IP Address: 10.10.1.5
VLAN Match Filter – Enabled
Note that, in this configuration, the management of the CDM-570/L-IP modems can either be
included in VLAN 1200 or left outside of all VLANs, since all remotes process all non-VLAN
traffic.
