CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
14.2.9.2

Rx Configuration Page

Activate the Rx (Receive Modem) Configuration page from the Configuration page.
The Rx (Receive Modem) Configuration Page contains the following options/fields:
Turbo FEC selections are displayed only if the optional Turbo card is installed.
Selection
Rx Frequency
Rx Data Rate
Rx Symbol Rate
Rx FEC
Rx Code Rate

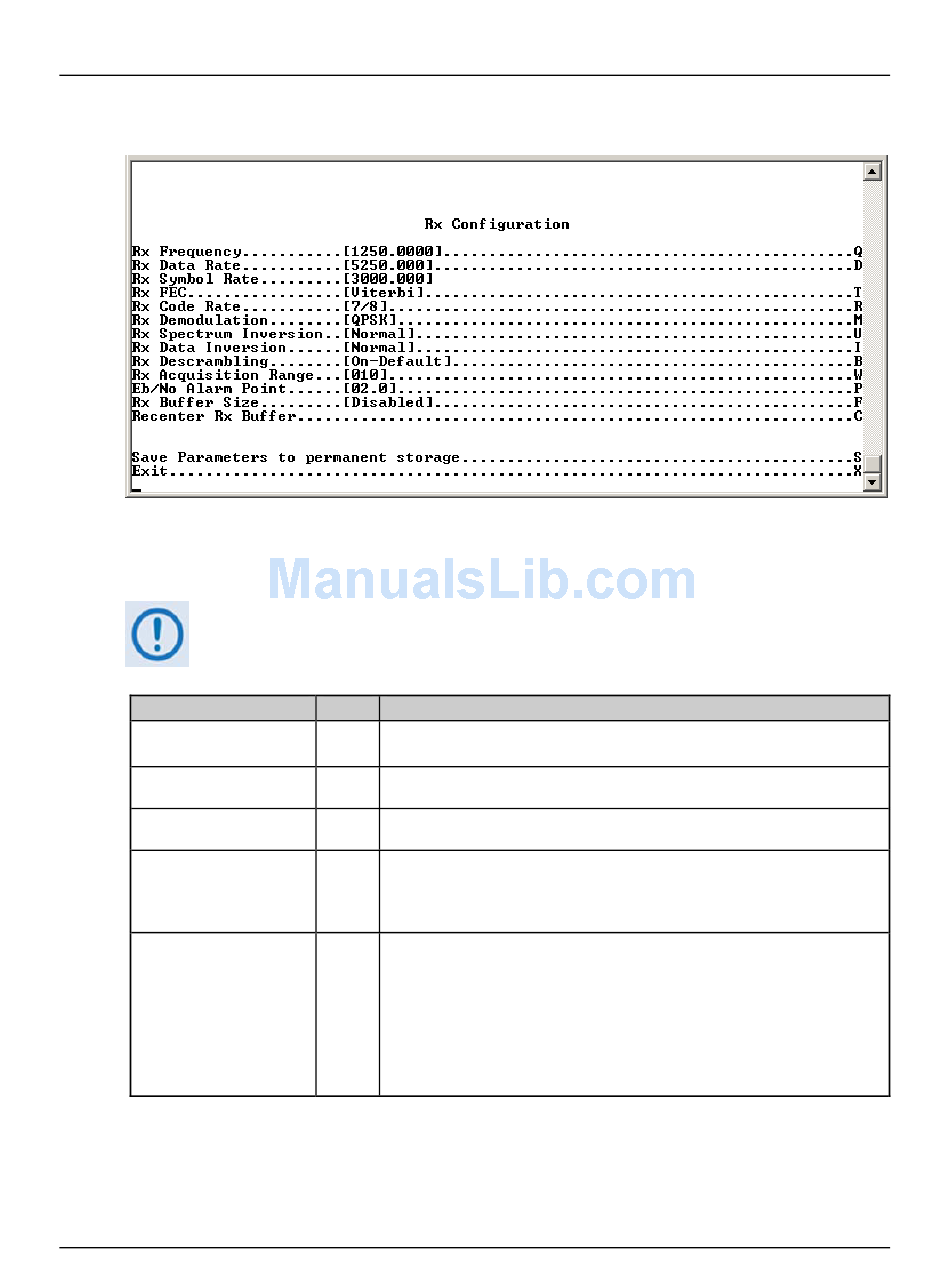

Figure 14-27. Rx (Receive Modem) Configuration Page
Entry Description
Valid ranges are from 50 to 180 MHz (IF),
Q
950 to 1950 MHz (L-Band)
Valid ranges are from 2.4 to 9980 kbps.
D
Up to 5000 kbps and 9980kbps are options that must be purchased.
Displays the corresponding Symbol Rate for the currently selected data rate,
[RO]
encoder, rate and modulation scheme.
1 – VIT
2 – TURBO
T
3 – VIT+RS
4 – TCM-RS
1 – 5/16
2 – 21/44
3 – 1/2
4 – 2/3
R
5 – 3/4
6 – 7/8
7 – 0.95
9 – 1/1
