CDM-570/570L Satellite Modem with Optional IP Module

Ethernet IP Module - CLI and Telnet Operation

QoS Rules Configuration Page – Min/Max Mode

Activate the QoS Rules Configuration page from the QoS Configuration page.

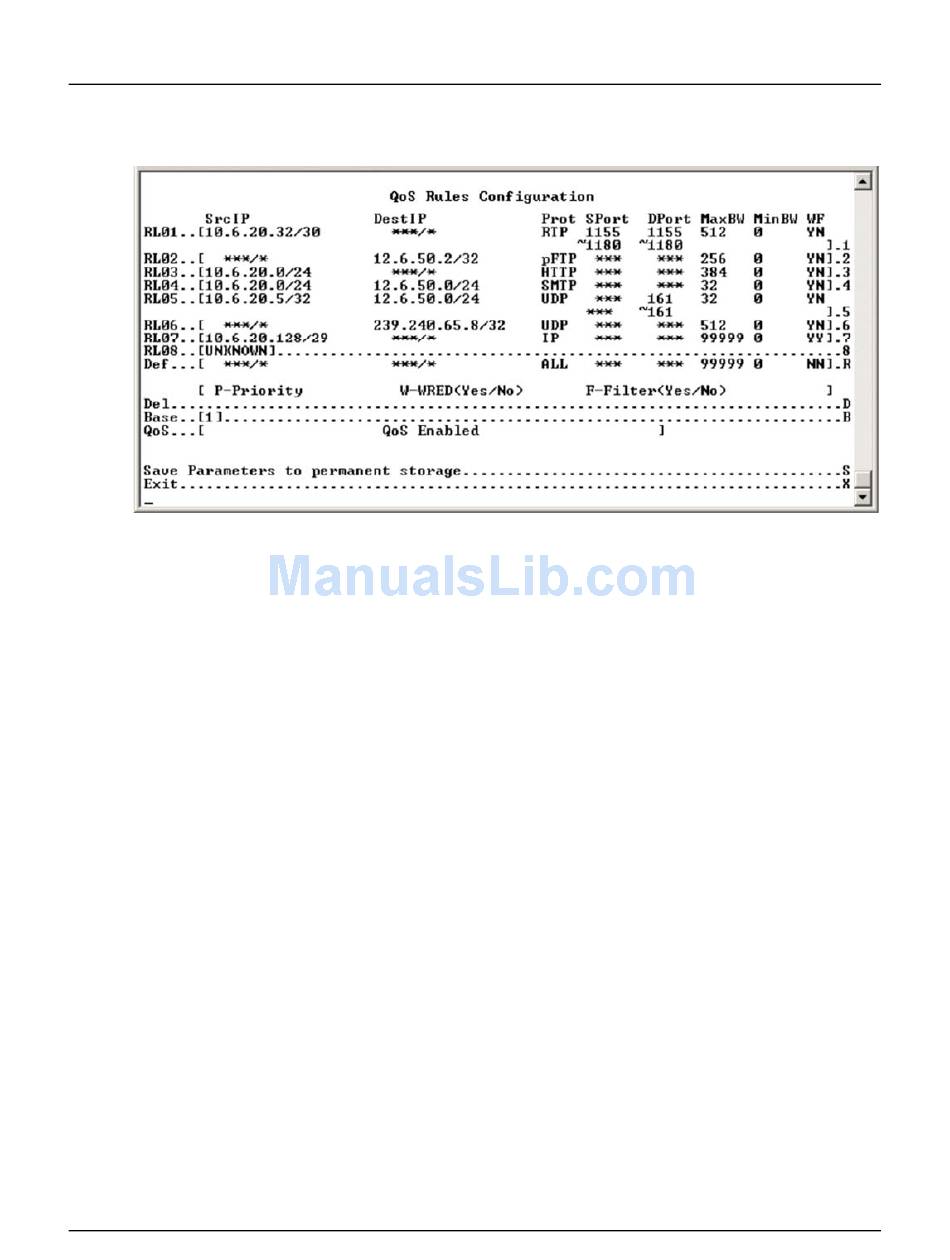

Figure 14-16. QoS Rules Configuration page (Min/Max mode)

In Minimum/Maximum Mode, the QoS Rules Configuration page contains the same

options/fields as in Max/Pri Mode with the following exceptions:

Priority is not assigned.

A Minimum Bandwidth can be assigned, or select enter to assign no Min Bandwidth

(displayed as '0').

See section 14.2.4 Quality of Service for a more detailed description of this QoS option.

MN/CDM570L.IOM
