CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module Interface
13.6.2.2 Admin Pages
The Admin pages are available only if you have logged in using the Administrator
Name and Password.
Click the Summary, Mode, Access, Features, Remote, or Encryption hyperlink to continue.
13.6.2.2.1

Admin | Summary

This page is available only if you have logged in using the Administrator Name
and Password.
Use this read-only page to obtain information for the assigned MAC and IP Addresses and the
currently available standard and optional operational features.

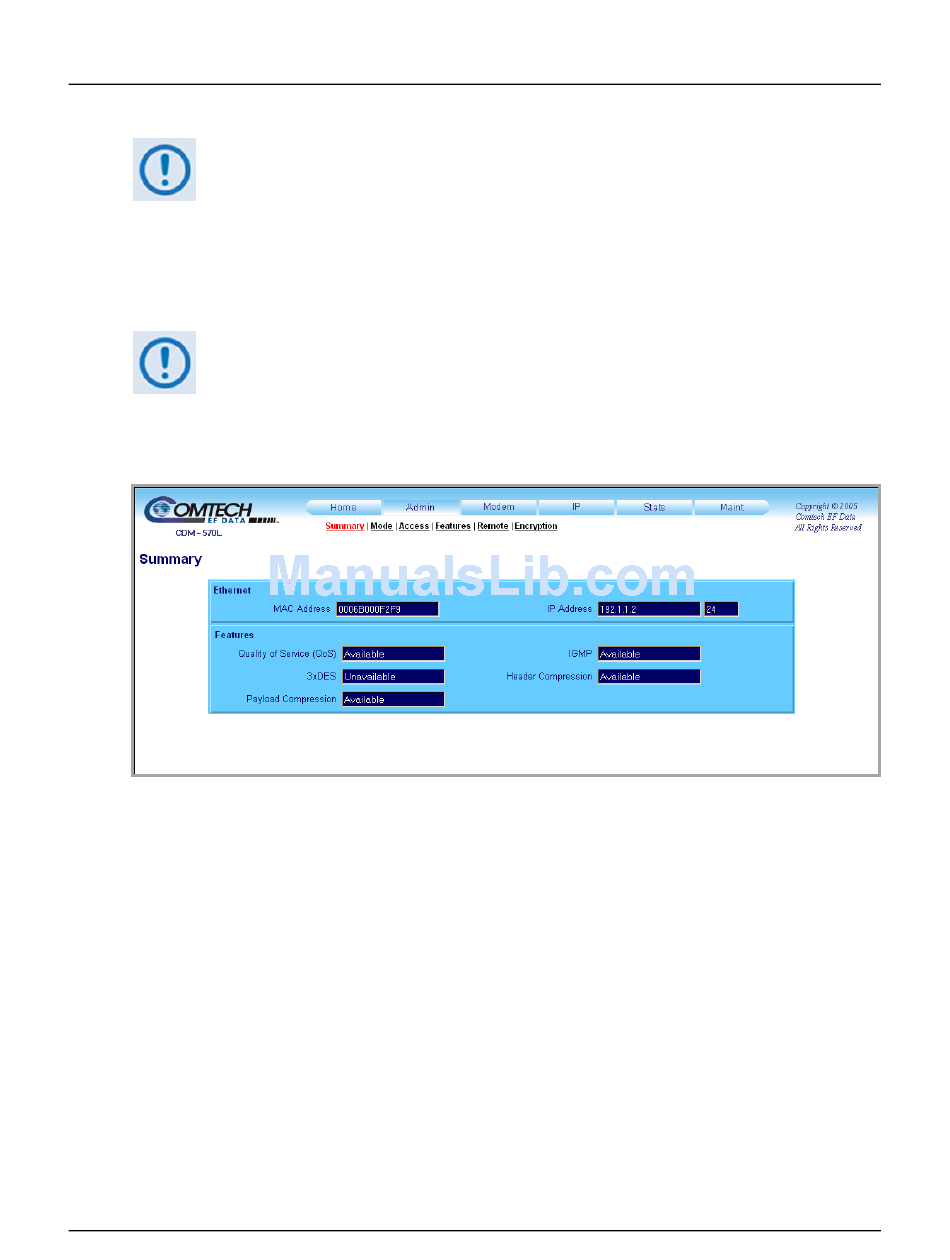

Figure 13-6. Admin |Summary page

13–24
Revision 12
MN/CDM570L.IOM
