CDM-570/570L Satellite Modem with Optional IP Module
Appendix K
•
For distant-end ODUs in an EDMAC setup:
o Use EDMAC Slave Address (ESA) Range +4 for Standalone unit or Online unit in a
1:1 Redundancy System
o Use EDMAC Slave Address (ESA) Range +5 for Offline unit in a 1:1 Redundancy
System
K.3

ODU Operations via the CDM-570 Front Panel

K.3.1 CDM-570 Front Panel Operation – Overview
For in-depth explanations of the function and operation of the front panel
features, see Chapter 5. FRONT PANEL OPERATION.
Use the CDM-570 front panel keypad and display to configure, monitor and control ODU
operation. Nested menus display all available options and prompt the user to carry out any
required actions.

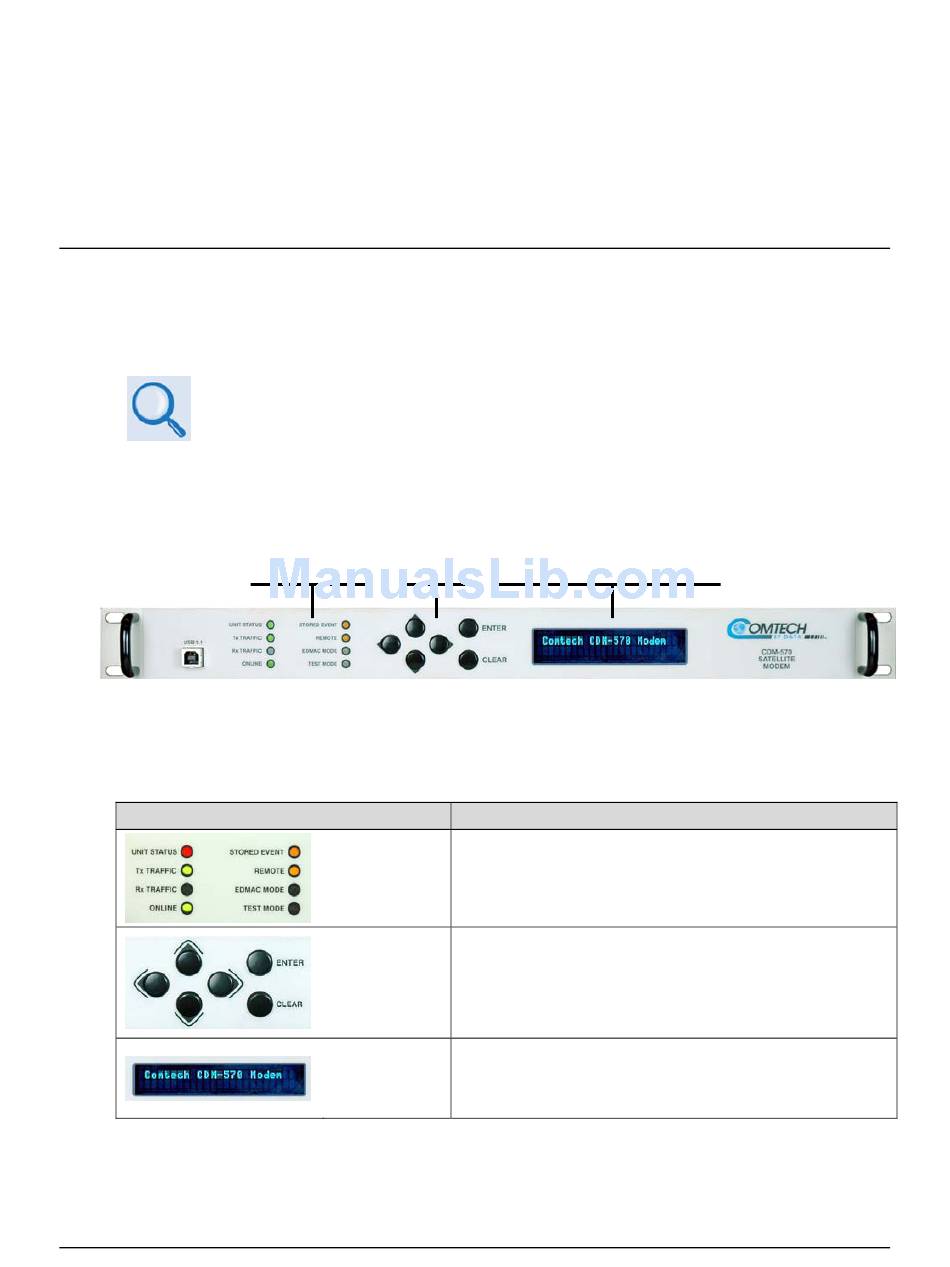

Figure K-1 identifies the key features of the CDM-570 front panel; their purpose is summarized
as follows:
LED
Keypad
Indicators

Figure K-1. CDM-570 Front Panel View

Feature
LED Indicators
Keypad
Vacuum
Fluorescent
Display (VFD)
Vacuum Fluorescent
Display (VFD)
Description
This array of eight LEDs indicates the operational status of the
CDM-570.
Use the keypad to select and navigate the available CDM-570
monitor and control menu functions as displayed on the Vacuum
Fluorescent Display (VFD).
The VFD features two rows of text with a width of 24 characters
per row. It displays all available options and prompts for required
actions via the keypad and nested menus.
