CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
14.2.6.2

ARP Table Utilities Page

Activate the ARP Table Utilities page from the Protocol Configuration Page. Use the ARP Table
Utilities page to view and edit the ARP table defined by the IP Module. It allows up to 256 static
IP->MAC ARP entries.
The ARP Table Utilities page contains the following options/fields:
Selection
Entry0001 – 0008
Add IP to MAC ARP entry
Delete ARP Entry
Display ARP Tbl
Flush ARP Table

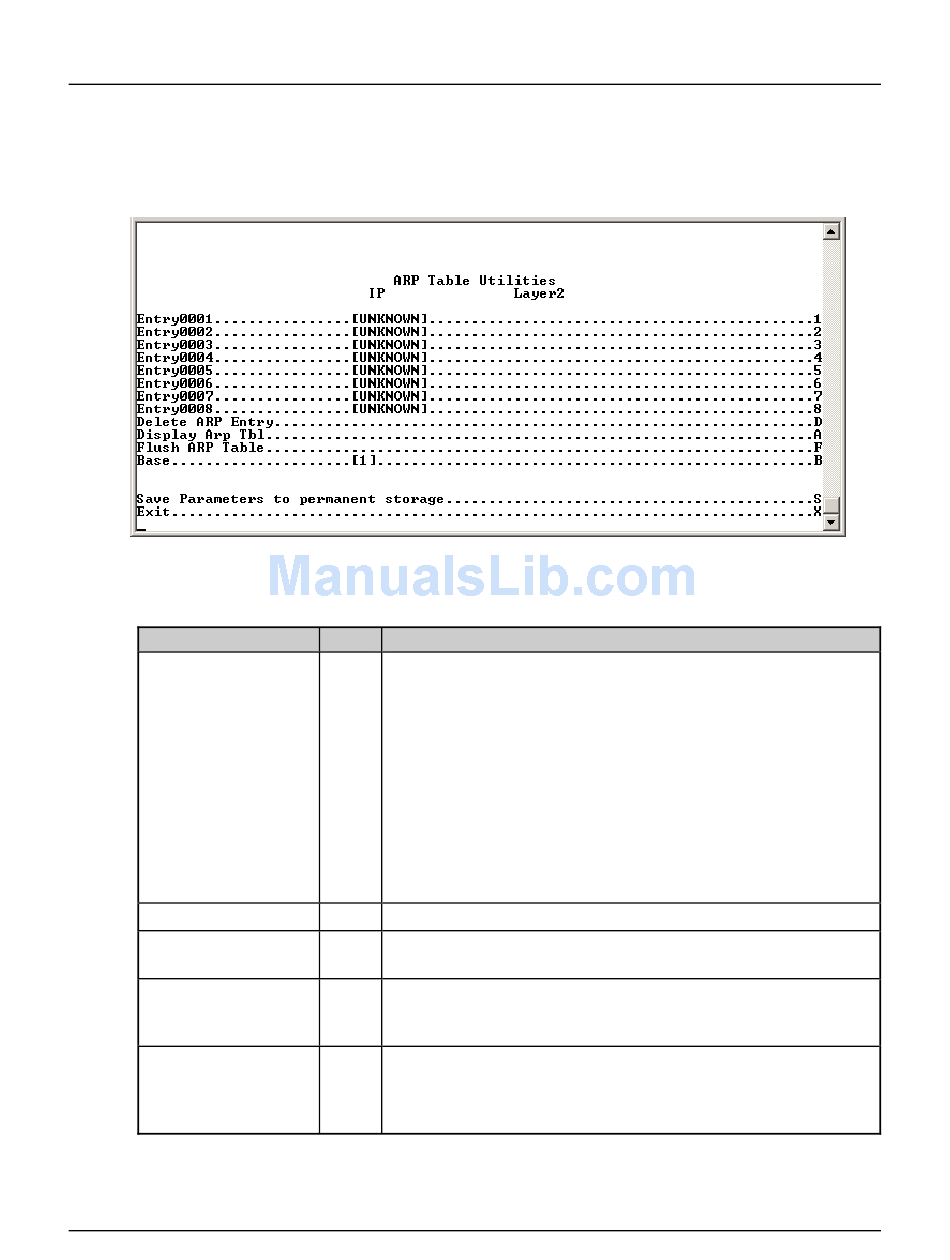

Figure 14-21. ARP Table Utilities page

Entry Description
Defines up to 256 static ARP definitions on the IP Module. Use this table to
1 – 8
operate/view up to 8 of these definitions. An ARP definition is defined as:
1. Unicast IP Address
This IP Address is used as a lookup into the ARP table when the IP Module
needs to resolve a MAC or HDLC Address.
Restrictions:
IP Address must be on the same subnet as the Ethernet Interface.
IP Address must be a valid Unicast address (Not Multicast, broadcast, etc.)
2. MAC Address
The MAC Address defines the hardware destination MAC Address that is
used when an Ethernet packet is destined for an IP machine from the IP
Module.
M Adds an IP to MAC ARP entry.
D Deletes a Static ARP entry. Queries the user for the IP address of the ARP
entry to delete.
A Displays the entire IP to MAC ARP table. Includes the Static as well as
dynamic ARP entries. Displays blocks of 10 ARP entries. Hit 'Enter' key to
display next 10 entries or 'Escape' to return to ARP Table Utilities page.
F Allows the entire ARP table to be removed. This is equivalent to performing
the standard UNIX command "arp –d" on each address reported in an "arp –
a" command. The command only flushes the dynamic ARP entries. The
static ARP entries will not be removed.
