CDM-570/570L Satellite Modem with Optional IP Module

Ethernet IP Module - CLI and Telnet Operation

Activate the DiffServ Rules Configuration page from the QoS Configuration page.

In DiffServ Mode, the IP Module prioritizes all traffic by the DSCP value contained within the

IP header of each packet. All packets that do not have a DSCP value are placed in the Default

Queue and have a Priority of 9.

Configuration of DiffServ Rules is allowed only for Assured Forwarding Classes 1-4 (Rule 9-12),

where a Minimum and Maximum Bandwidth can be assigned.

See 14.2.4 Quality of Service section for a more detailed description of this QoS option.

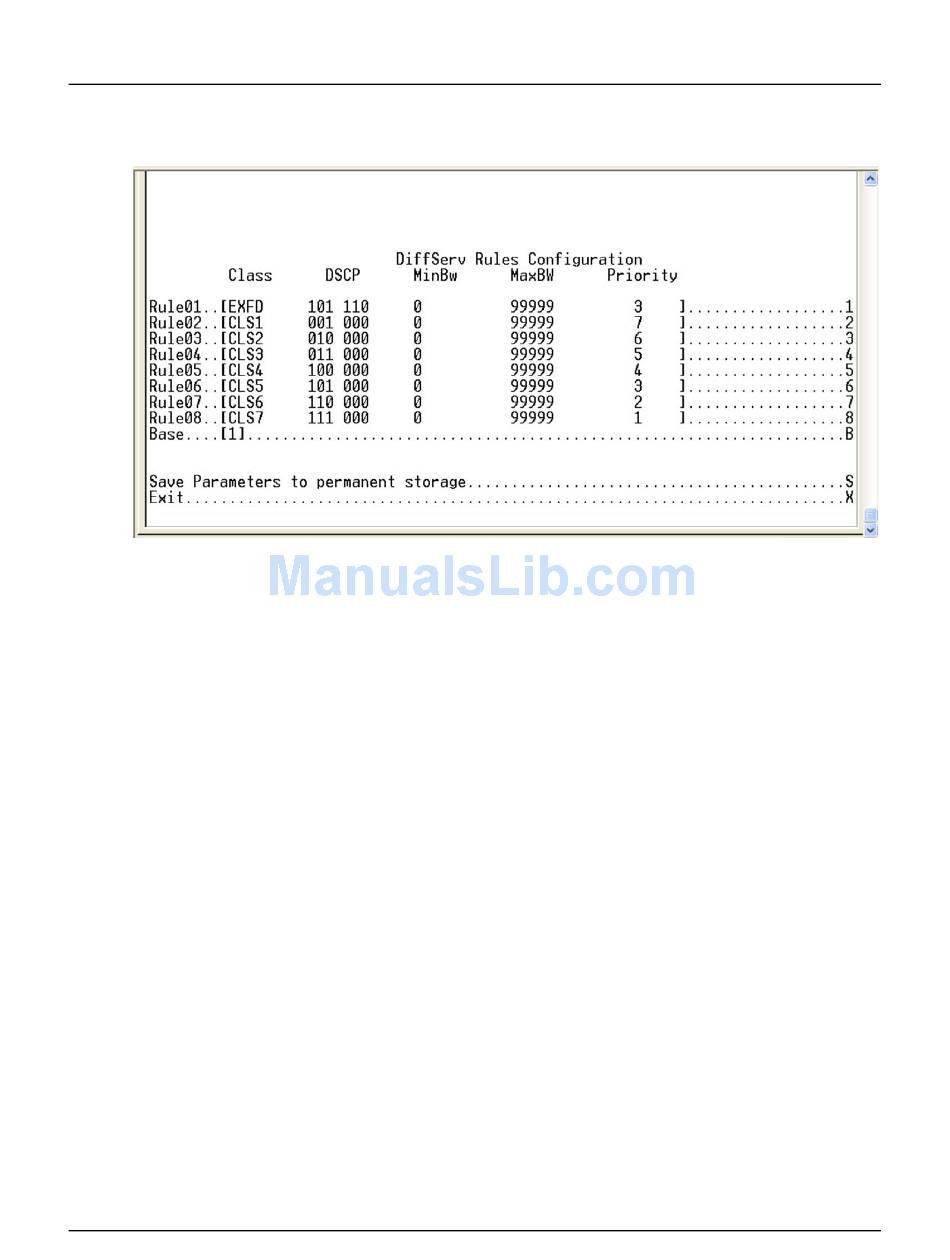

Figure 14-17. DiffServ Rules Configuration page

MN/CDM570L.IOM
