CDM-570/570L Satellite Modem with Optional IP Module
Appendix G
At each CDM-570/L-IP Remote Modem, VLAN Filtering must be enabled and the appropriate
VLAN IDs entered into the Match table.
As shown in Figure G-5 the network consists of a managed Hub Site and three Remote sites. In
this service, Remote Sites 'A' and 'B' share a common corporate service (Service 'B' Network),
a typical requirement in the oil and gas industry. All three sites employ a Shared Voice Service.
Sites 'B' and 'C' employ a Shared Internet Service. Each site additionally has services (VLAN
networks) that are exclusive to that site. The services provided in this network are defined in the
table below:
Service Description
Shared Voice Services
Shared Internet Services
Management Services
Corporate Network 'A'
Corporate Network 'B'
Corporate Network 'C'
Corporate Network 'D'
Corporate Network 'E'

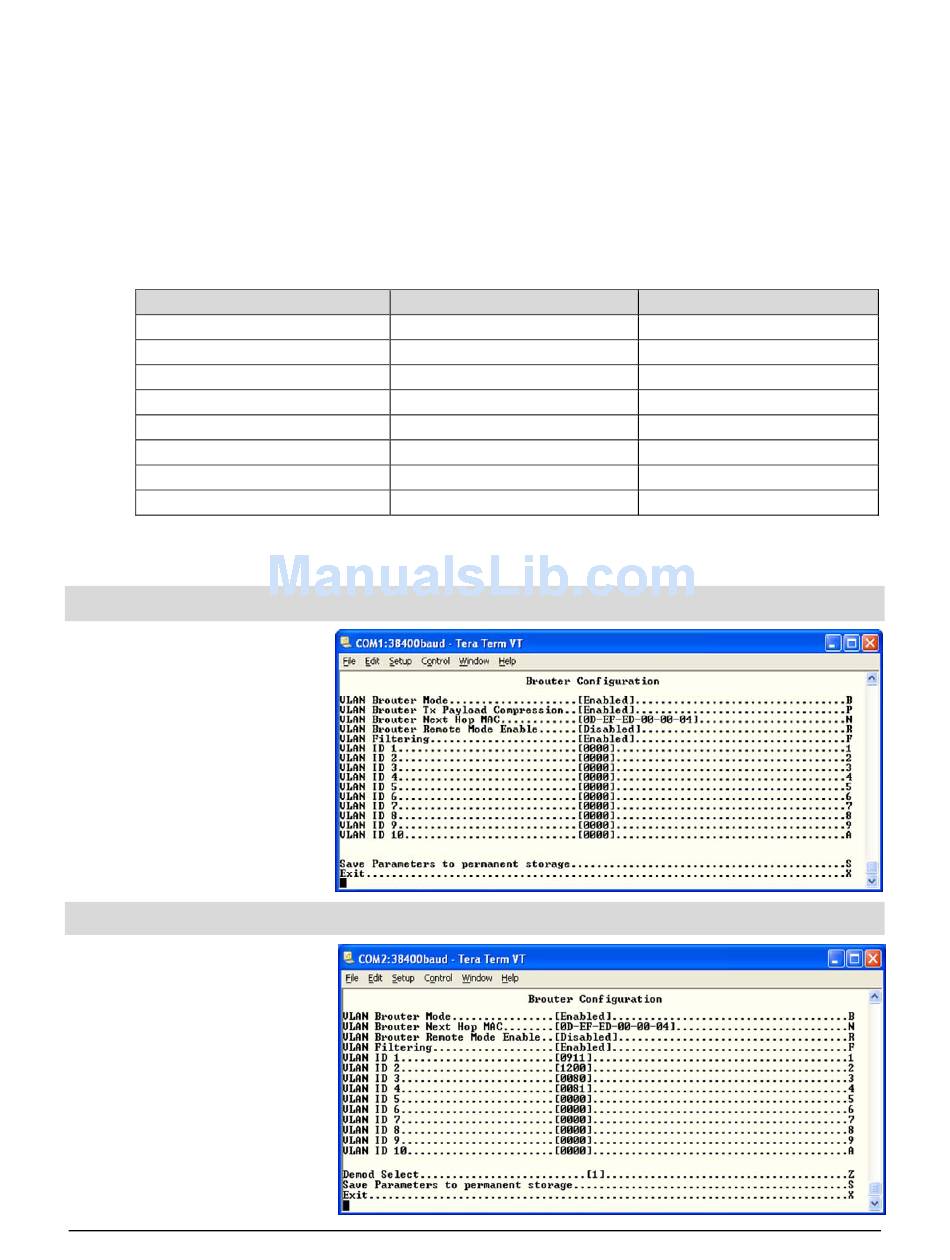

Each Comtech EF Data product, as depicted in this network example, is configured as follows:
Hub Site – CDM-570/L-IP Modem
IP Address: 10.10.1.1
VLAN Match Filter – Enabled
Hub Site – CDD-564/L Quad Demodulator
IP Address: 10.10.1.2
VLAN Match Filter – Enabled
(Demodulator #1 shown)
VLAN ID
0911
1111
1200
0080
0081
0090
0100
0101
G–13
Revision 12
MN/CDM570L.IOM
Sites in Service
A, B, C
B, C
A, B, C
A
A, B
B
C
C
