CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
14.2.3.3

Receive HDLC Channel Addresses Page

Activate the Receive HDLC Channel Addresses page from the Satellite/HDLC Interface page.
Use this page to define up to four HDLC addresses that can carry user information on the Satellite
Interface. This page is displayed only when using IP Module V1 Firmware Ver. 1.6.# and earlier
/ IP Module V2 Firmware Ver. 2.1.# and earlier.

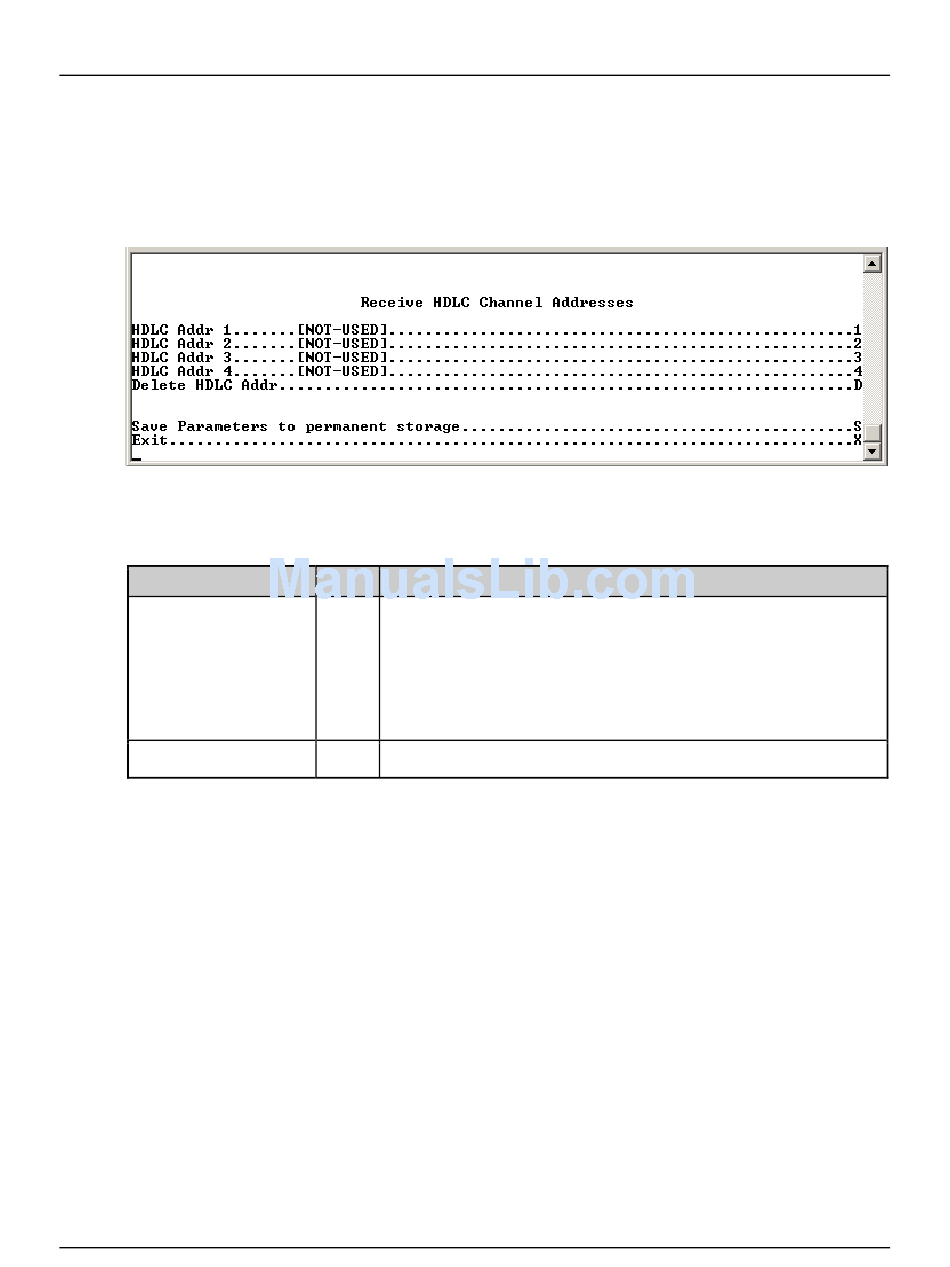

Figure 14-13. Receive HDLC Channel Addresses page

The Receive HDLC Channel Addresses page contains the following options/fields:
Selection
HDLC Addr 1 – 4
Delete HDLC Addr
Entry Description
HDLC address in hex <1 – FFFE, enter = 0001>
1 – 4
Note: HDLC addresses are not used in Point-To-Point Mode.
Small Network Mode (up to 254 addresses) – Limited to valid addresses
between the values of 0x01 and 0xFE.
Large Network Mode (up to 32766 addresses) – Limited to valid
addresses between the values of 0x0001 and 0x7FFF.
D Enter the HDLC entry to delete <1...4>
