Figure 14-29. Data Interface Configuration Page; Data Interface Configuration - Comtech EF Data CDM-570 Installation And Operation Manual

70/140 mhz satellite modem, l-band satellite modem, reduced chassis depth l-band satellite modem

Hide thumbs Also See for CDM-570:

Table of Contents

CDM-570/570L Satellite Modem with Optional IP Module

Ethernet IP Module - CLI and Telnet Operation

Activate the Data Interface Configuration page from the Configuration page.

The Data Interface Configuration page contains the following options/fields:

Data Interface

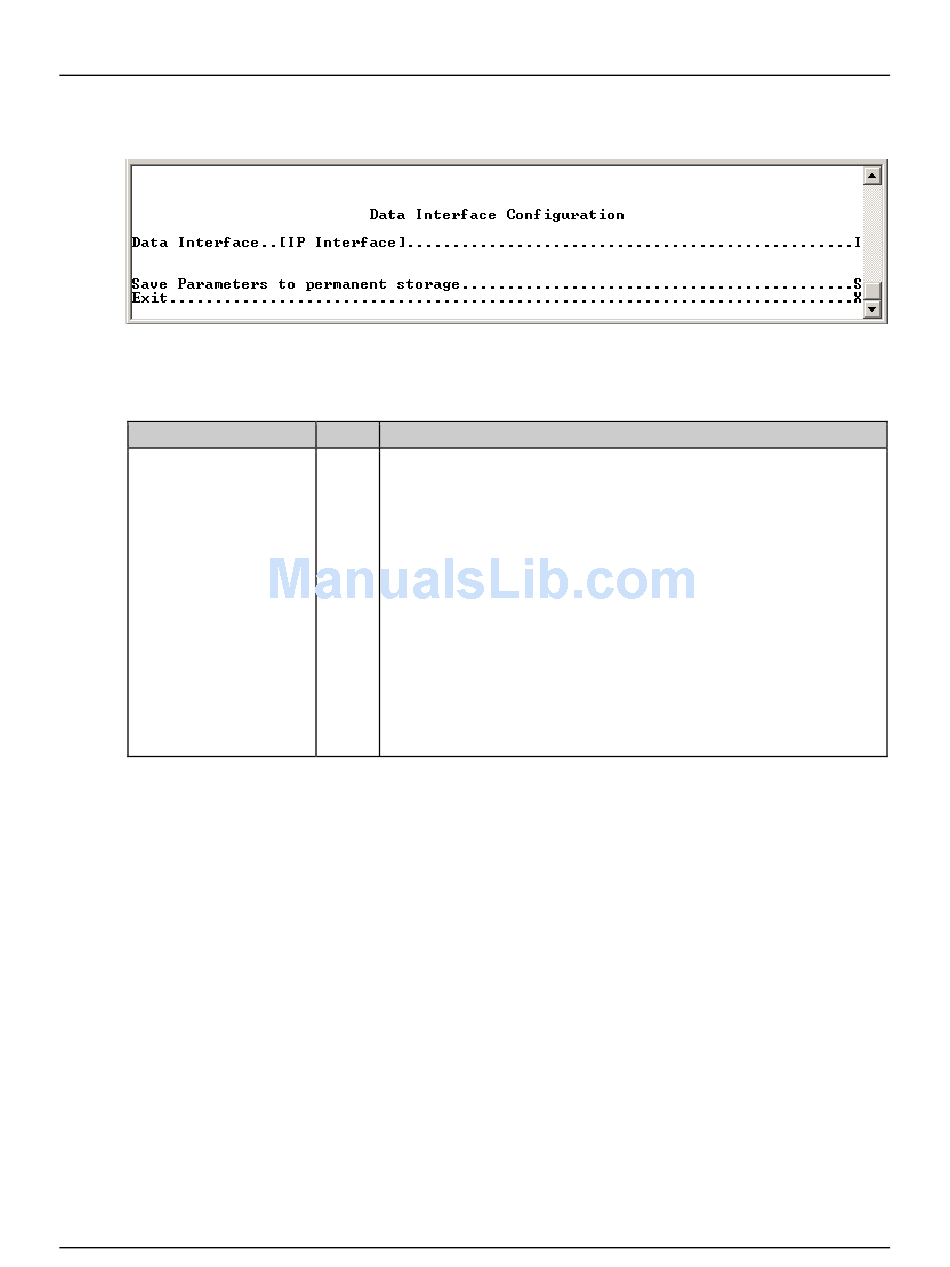

Figure 14-29. Data Interface Configuration Page

1 – EAI-422/EAI-530 DCE

2 – V.35 DCE

3 – EAI-232(sync)

4 – G.703 T1 AMI

5 – G.703 T1 B8ZS

6 – G.703 E1 Unbal AMI

7 – G.703 E1 Unbal HDB3

8 – G.703 E1 Bal AMI

9 – G.703 E1 Bal HDB3

10 – IP Interface

NOTE: The data interface must be set to IP Interface for IP traffic to pass

over the satellite.
