CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module Interface
13.6.2.4 IP Pages
Click the Interface, Routes, Multicast, QoS Mode, QoS, ARP, VLAN, IGMP, or
Redundancy hyperlink to continue.
13.6.2.4.1

IP | Interface

Use this page to view the MAC address, set the IP address and mask of the IP Module, and define
parameters for Brouter (Bridge + Router Traffic) Working Mode operation.
Ethernet (LAN)
•
MAC Address (read-only) – This is set at the factory to a guaranteed unique address that
cannot be modified.
•
Mode & Speed – Use the drop-down menu to select Auto, 10 Mbps Half Duplex, 100
Mbps Half Duplex, 10 Mbps Full Duplex, or 100 Mbps Full Duplex.
•
IP Address/Mask – Enter the IP Address/Mask for the IP Module Ethernet Interface.
•
Link Status (read-only) – This is the actual negotiated Link Status of the Ethernet Port; this
includes whether the link is UP or DOWN.
Managed Switch Mode
The Gateway IP Address may be entered when Managed Switch Mode is active.

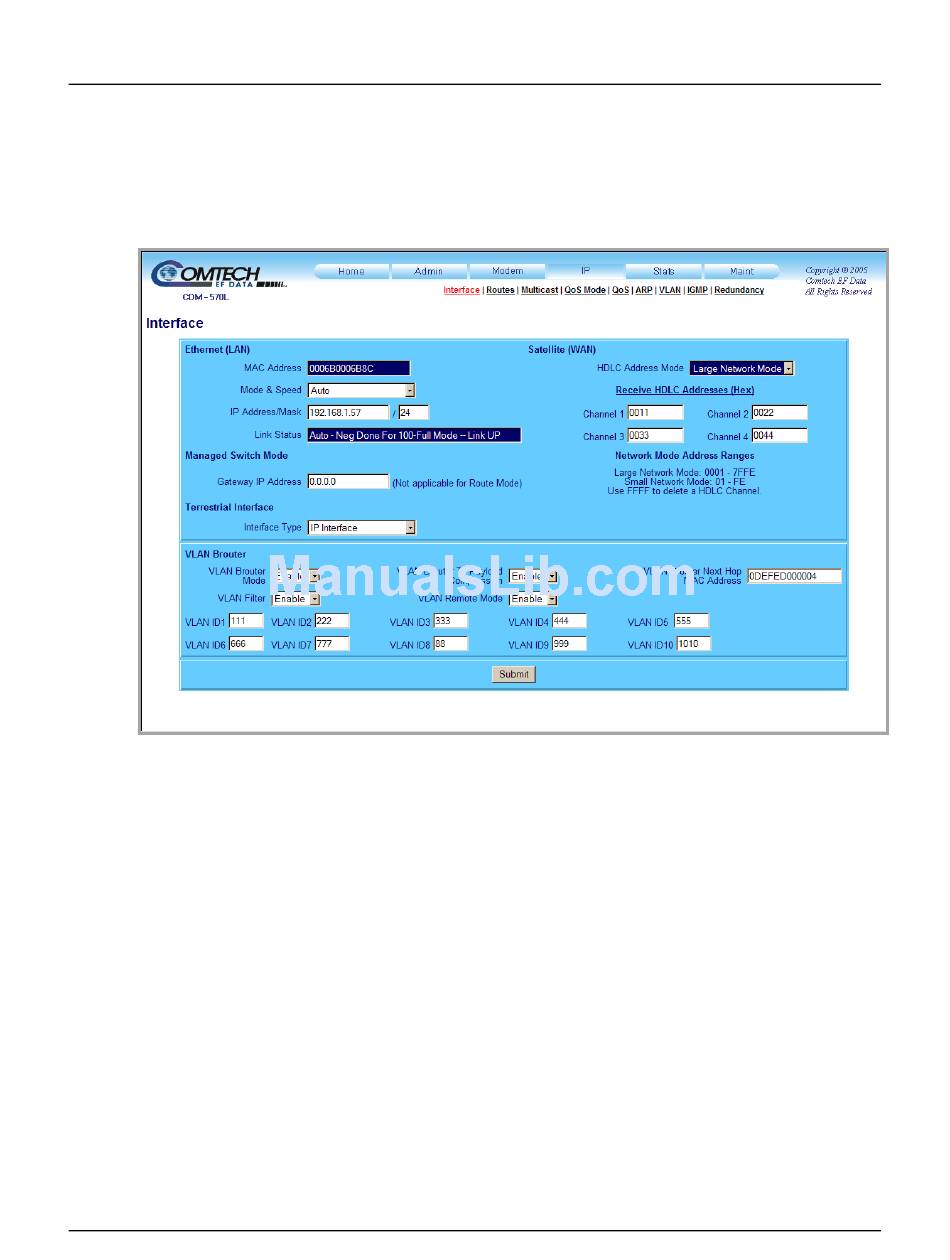

Figure 13-17. IP | Interface page
