Figure 14-1. Main Menu Page; Main Menu Page - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module - CLI and Telnet Operation
Selection
Save Parameters to Flash
Exit Menu
14.2.1

Main Menu Page

The Main Menu page has the following options/fields:
Selection
Administration
Interface Configuration
QoS Configuration
Route Table
Protocol Configuration
Satellite Modem
Configuration
Redundancy
Configuration
Operations and
Maintenance
14.2.2
Entry Description
Saves the current configuration of the NP Module to permanent storage.
S
This configuration is restored on each successive power cycle.
Exits the current menu and returns to the parent menu. Alternately, press
X
the Esc key to perform the same action.

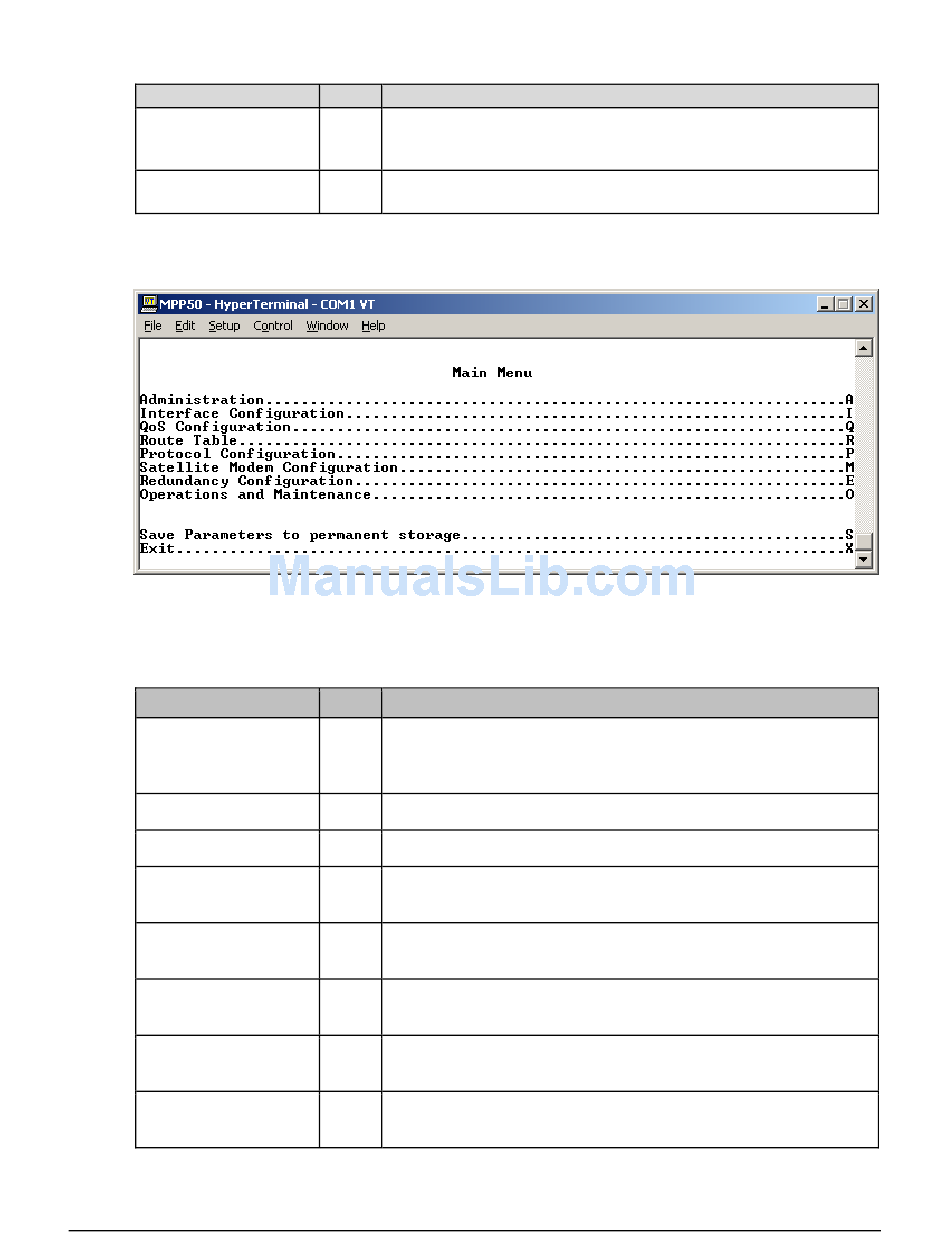

Figure 14-1. Main Menu page

Entry Description
Provides a basic set of standard administrative functions to the IP Module.
A When connected via Telnet, navigation to this menu is restricted to the
Admin user.
I Configures the Ethernet and Satellite interfaces.
Q Defines QoS rules for up to 32 different types of flows.
Defines how the IP Module will route packets that it receives on its Ethernet
R
and Satellite interfaces.
Configures various protocols, including ARP and IGMP, used by the IP
P
Module.
Displays menus that are used to configure and monitor the Base Satellite
M
Modem.
E Configures 1:1 IP Redundancy.
Configures various options for system control and maintenance; provides
O
Statistics and diagnostic tools for troubleshooting purposes.
