CDM-570/570L Satellite Modem with Optional IP Module
Appendix L
L.3 ODU Operations via the CDM-570L Front Panel
L.3.1 CDM-570L Front Panel Operation Overview
For in-depth explanations of the function and operation of the front panel
features, see Chapter 5. FRONT PANEL OPERATION.
Use the CDM-570L front panel keypad and display to configure, monitor and control BUC/LNB
operation. Nested menus display all available options and prompt the user to carry out any
required action(s).

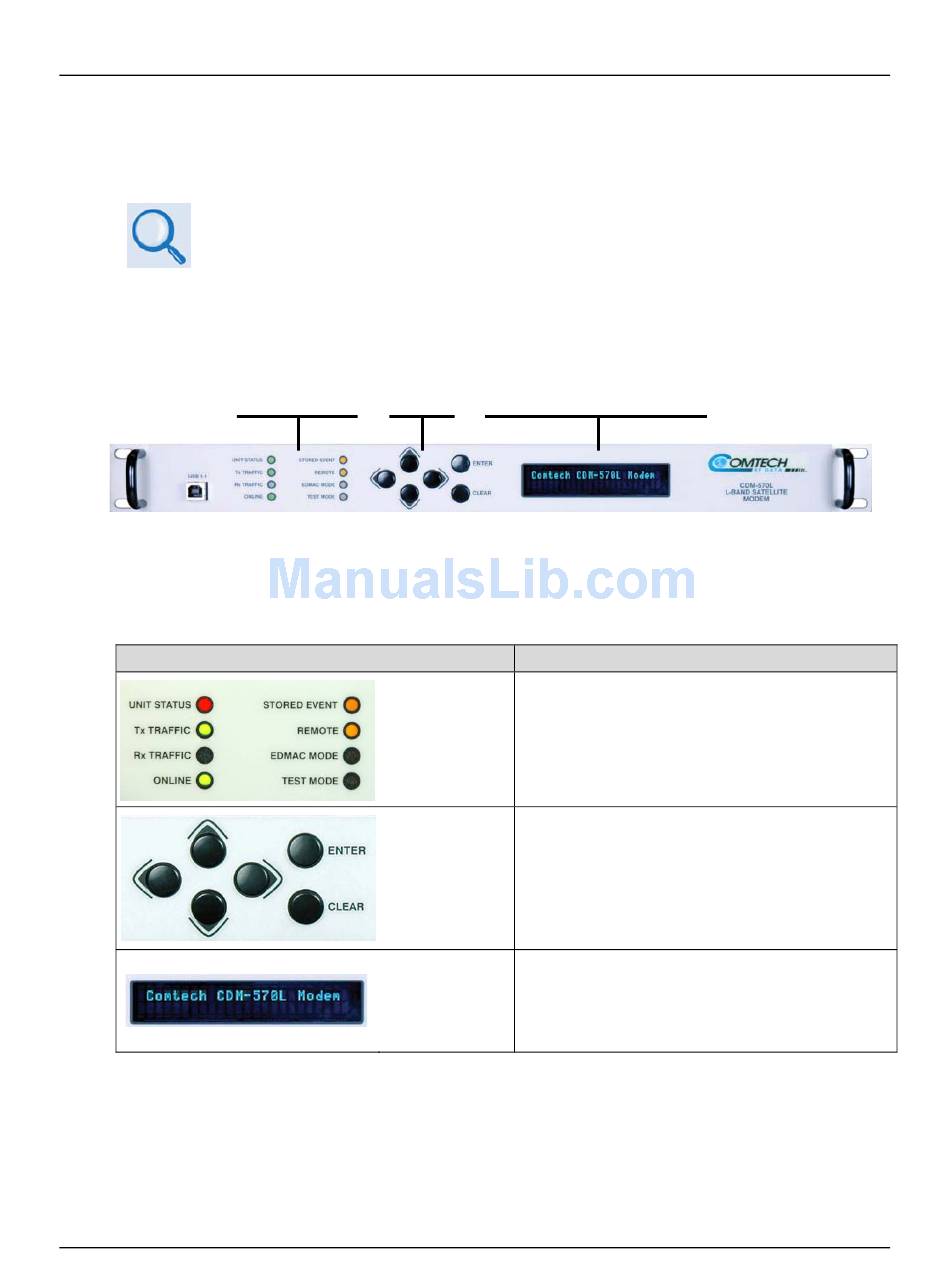

Figure L-1 identifies the key features of the CDM-570L front panel; their purpose is summarized
as follows:
LED
Indicators Keypad

Figure L-1. CDM-570L Front Panel View

Feature
LED Indicators
Keypad
Vacuum
Fluorescent
Display (VFD)
Vacuum Fluorescent
Display (VFD)
Description
This array of eight LEDs indicates the operational status
of the CDM-570L.
Use the keypad to select and navigate the available
CDM-570L monitor and control menu functions as
displayed on the Vacuum Fluorescent Display (VFD).
The VFD features two rows of text with a width of 24
characters per row. It displays all available options and
prompts for required actions via the keypad and nested
menus.
L–2
Revision 12
MN/CDM570L.IOM
