L.3.2 CDM-570L Front Panel Operation – ODU Menu Hierarchy
Figure L-2 identifies the CDM-570L front panel menu hierarchies allocated to the configuration,
monitor and control of a BUC or LNB. More specifically, menu branches that incorporate ODU
operations are shown in bold; menu content that is dedicated to ODU operations is additionally
italicized.
The ODU menu branch is accessible from the CDM-570L front panel menu only
when the presence of an ODU is detected. Also note that, as this appendix
deals with strictly with ODU operations, Chapter 5. FRONT PANEL OPERATION
provides a complete overview for any CDM-570L menu operations or selections
not defined in this appendix.

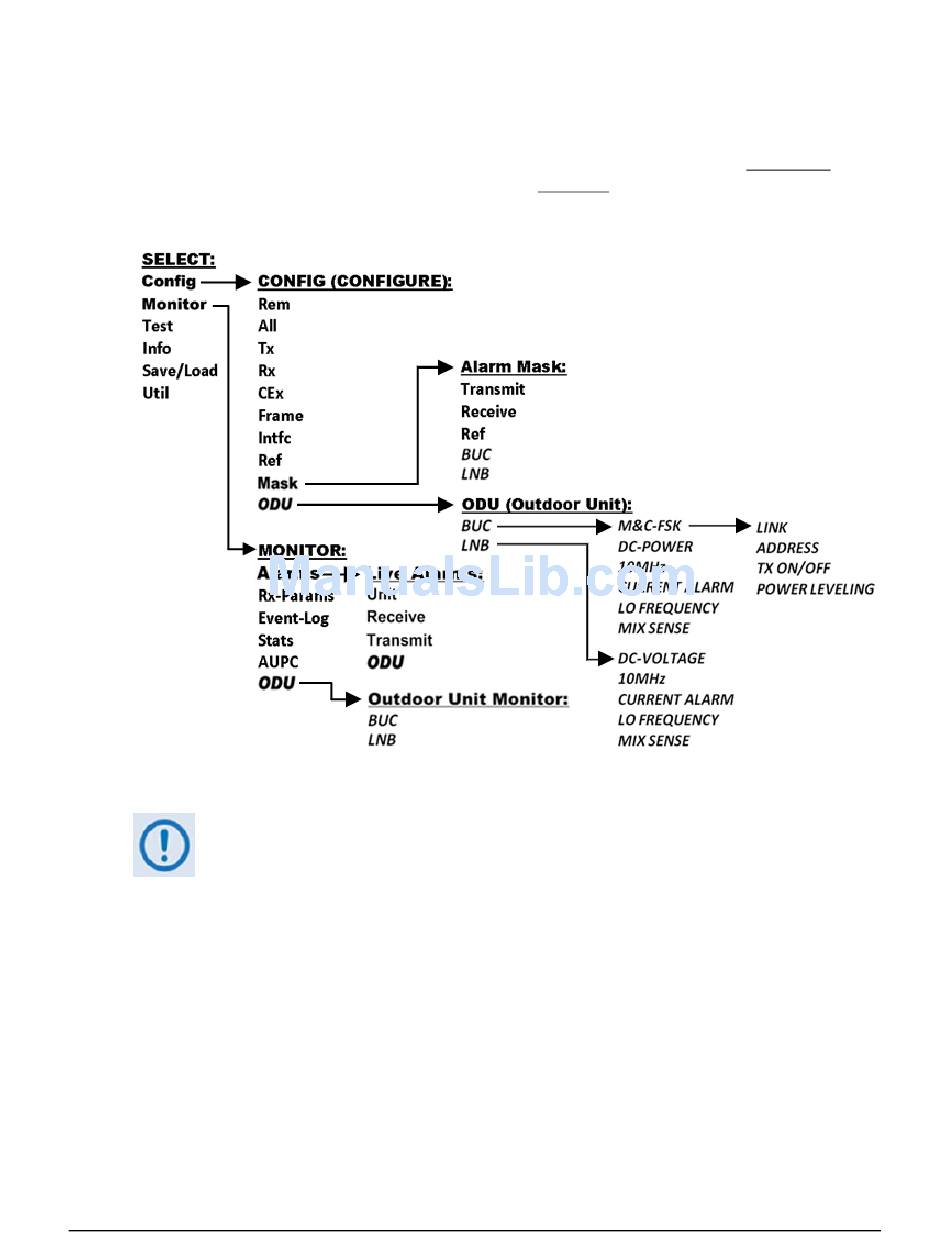

Figure L-2. CDM-570L Menu Tree – ODU Operation
