Figure 2-2. Installation Into A Rack Enclosure - Comtech EF Data CDM-570 Installation And Operation Manual

70/140 mhz satellite modem, l-band satellite modem, reduced chassis depth l-band satellite modem

Hide thumbs Also See for CDM-570:

Table of Contents

CDM-570/570L Satellite Modem with Optional IP Module

Installation and Startup

Mount the CDM-570/570L in its assigned position in the rack enclosure. Use, as required:

A standard rack-mounted shelf;

User-supplied screws to secure the front panel to the rack enclosure threaded front

mounting rails;

Comtech EF Data's optional

Support Brackets Kit

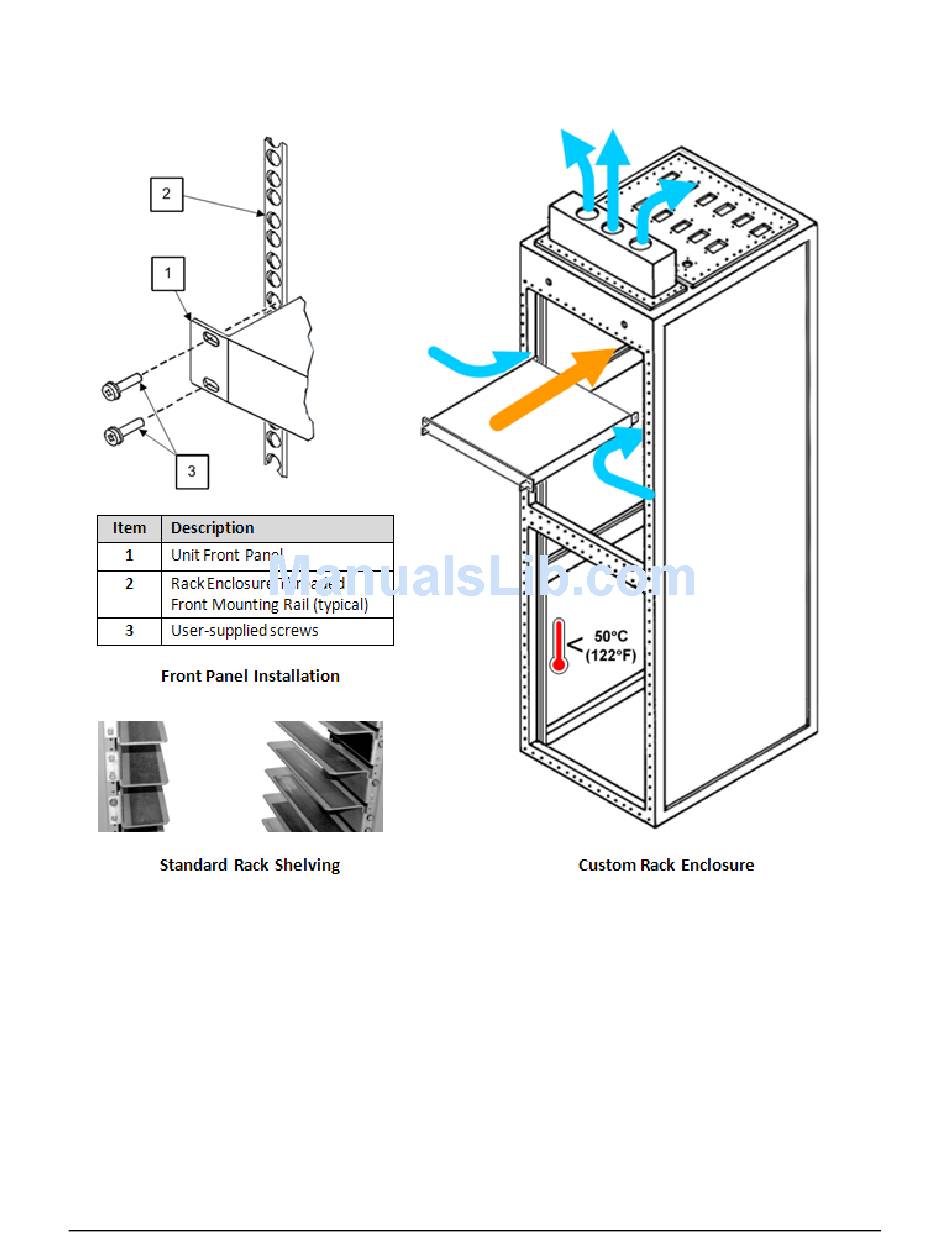

Figure 2-2. Installation into a Rack Enclosure

KT/6228-2 (4") or KT/6228-3 (10") Rear-Mounting

MN/CDM570L.IOM
