Config Mdm (Configure Modem); Config Mdm | Modem; Figure 7-8. Config Mdm | Modem Page - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570 Satellite Modem with Optional IP Module
Base Modem Web Server Interface
•
Trap Version – Use the drop-down menu to select SNMPv1 or SNMPv2.
•
Enter an SNMP Trap Community String. The factory default SNMP Trap Community
String is comtech. The string can be any combination of characters and a length of 0 to 20
characters.
Click [Submit Admin] to save these settings.
7.3.3 Config Mdm (Configure Modem) Pages
The nested Config Mdm (Configure Modem) pages provide the means to configure all modem
parameters. Click the Modem, Modem Utilities, AUPC, BUC*, or LNB* hyperlink to continue.
* The 'BUC' and 'LNB' hyperlinks shown in Figure 7-8 are available only on the
CDM-570L Base Modem HTTP Interface. They provide the means to control and
monitor a Block Up Converter or Low-Noise Block Down Converter connected to
the CDM-570L. See Appendix L. CDM-570L ODU (BUC, LNB) OPERATION for
complete details on ODU operations via the CDM-570L Base Modem HTTP
Interface.
7.3.3.1

Config Mdm | Modem

For details pertaining to the configuration parameters available on this page, see
Chapter 5. FRONT PANEL OPERATION.
The Tx / Rx Interface Types and Framing Modes have higher priority than other
parameters, and should be configured before setting other parameters.
Use this page to configure modem operating (Tx / Rx) parameters, including the Tx / Rx Interfaces
and Framing. Click [Submit] to save changes made to this page.

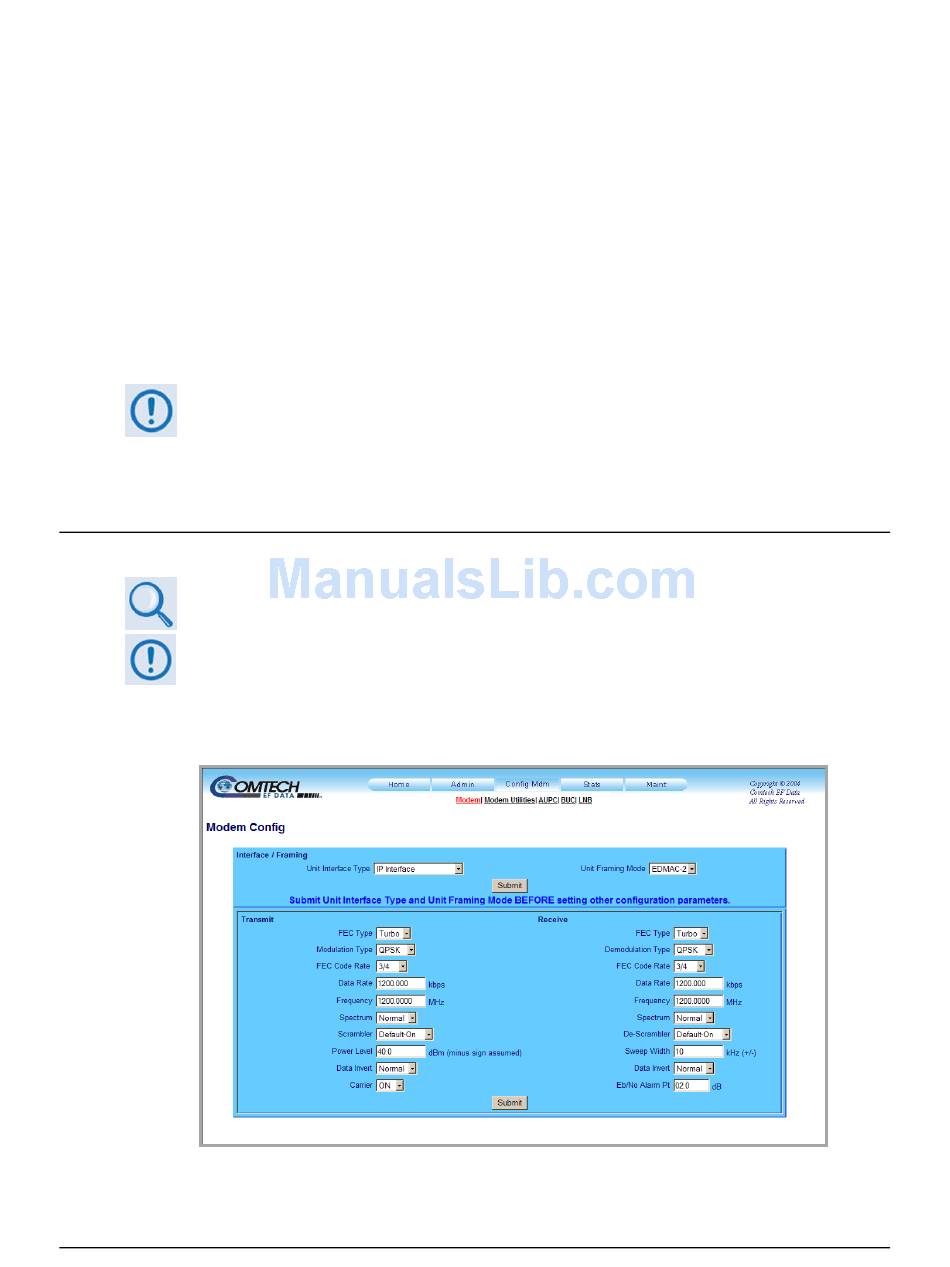

Figure 7-8. Config Mdm | Modem page
