Ip | Qos (Minimum/Maximum Bandwidth Mode); Figure 13-22. Ip | Qos Mode Page (Min/Max Mode) - Comtech EF Data CDM-570 Installation And Operation Manual

CDM-570/570L Satellite Modem with Optional IP Module
Ethernet IP Module Interface

13.6.2.4.5.2 IP | QoS (Minimum/Maximum Bandwidth Mode)

Use the 'IP | QoS' page, as it appears when Minimum/Maximum Bandwidth Mode is active
(Figure 13-22), to establish up to 32 different types of flows. See Sect. 13.4.5.2 for full
information on this page's functionality.
QoS Table Entry
Use the text boxes to enter the following information:
•
Rule #
•
Source IP / Mask
•
Destination IP / Mask
•
Source Port (range)
•
Destination Port (range)
•
Max Bandwidth (in kbps)

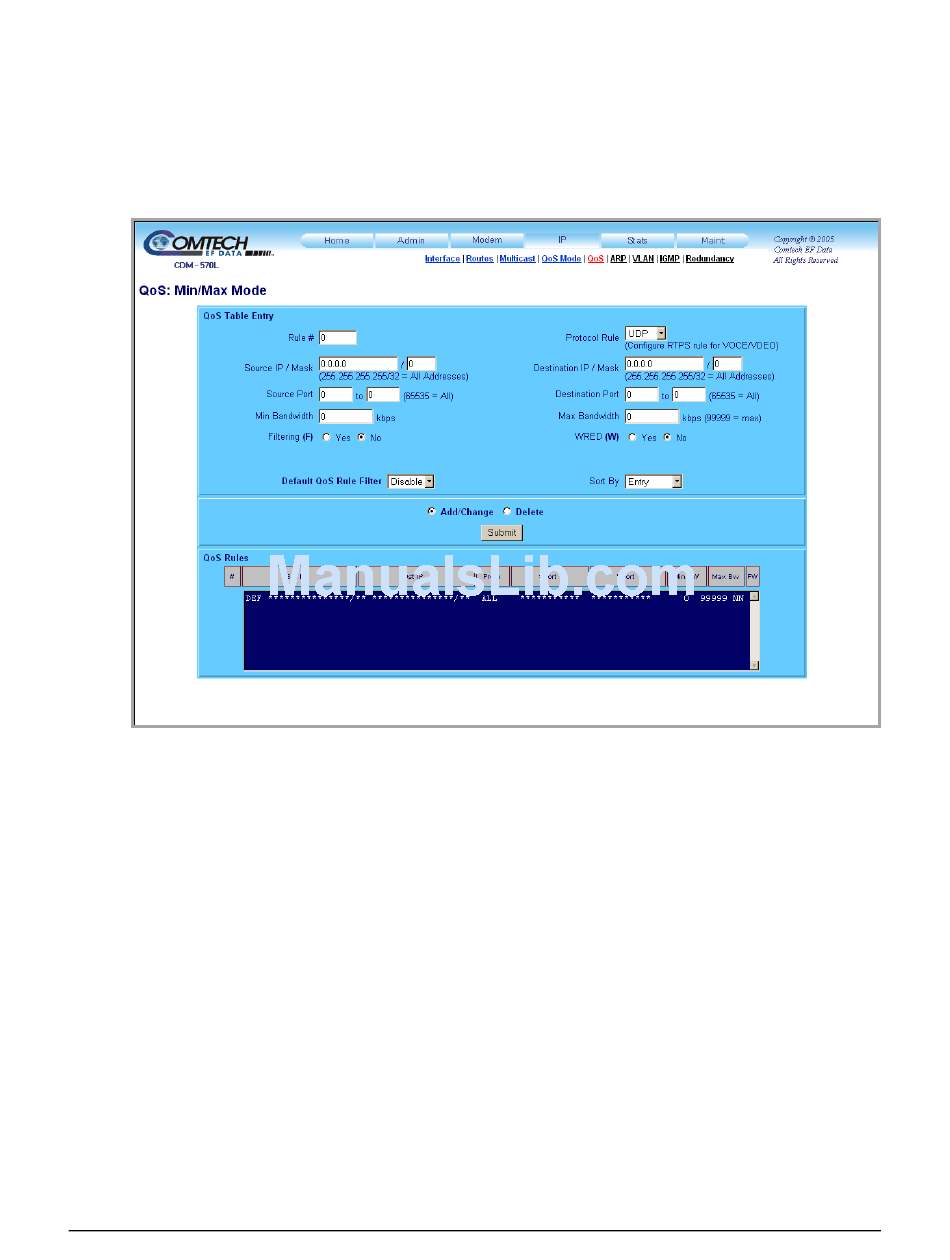

Figure 13-22. IP | QoS Mode page (Min/Max Mode)
