13.6.2.4.5.3 IP | QoS (DiffServ Mode)

Use the 'IP | QoS' page, as it appears when DiffServ Mode is active (Figure 13-23), to make IP
Module QoS fully compliant to the Differential Services QoS RFC standards. See Sect. 13.4.5.3
for full information on this page's functionality.
DiffServ Rules Configuration
Use the text boxes to enter the following information:
•
Rule #
•
Min Bandwidth (kpbs)
•
Max Bandwidth (kbps)
Click [Submit] to save the rules settings changes made on this page.
DiffServ Rules
This read-only window displays the currently active DiffServ Rules.

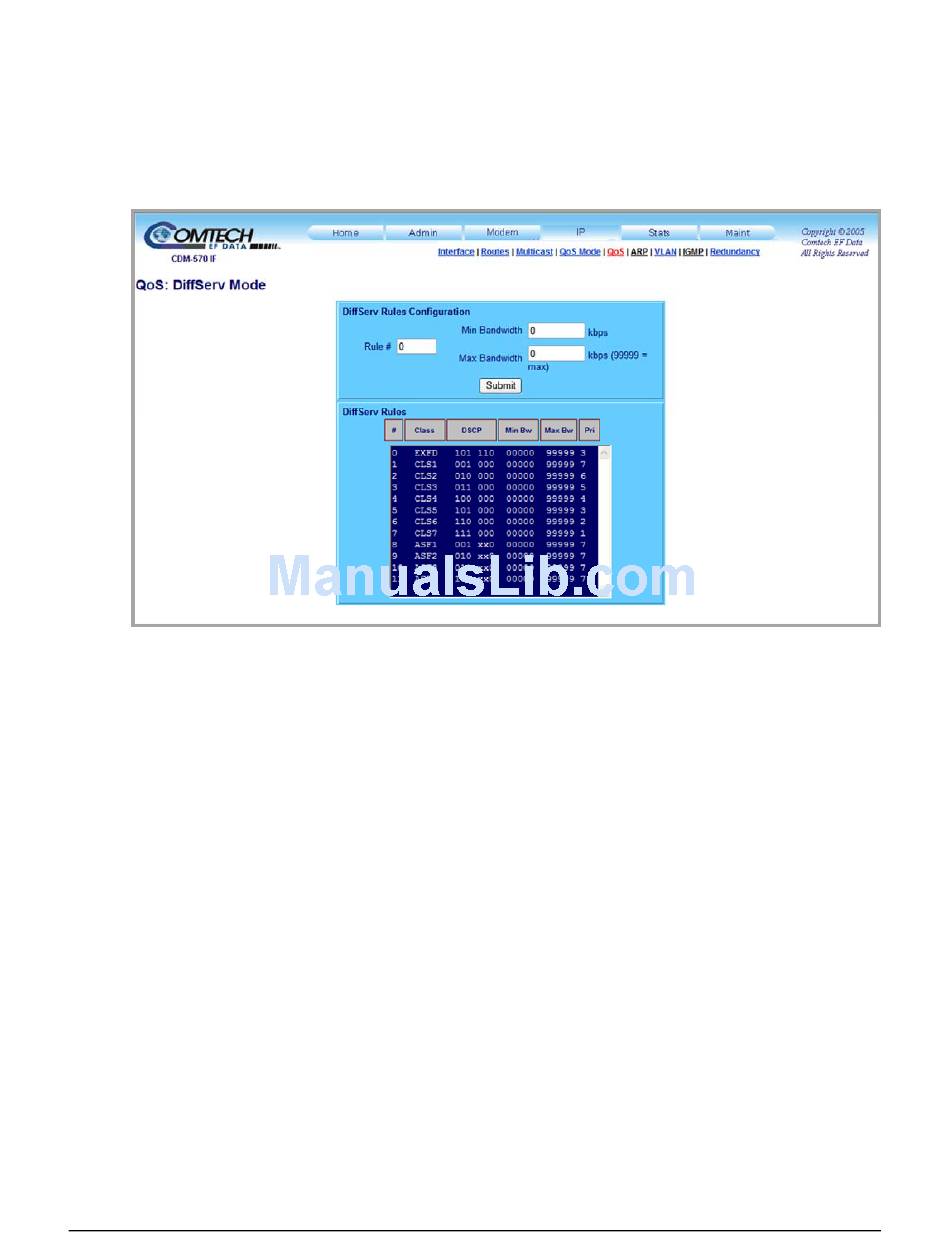

Figure 13-23. IP | QoS Mode page (DiffServ Mode)
