Hardware

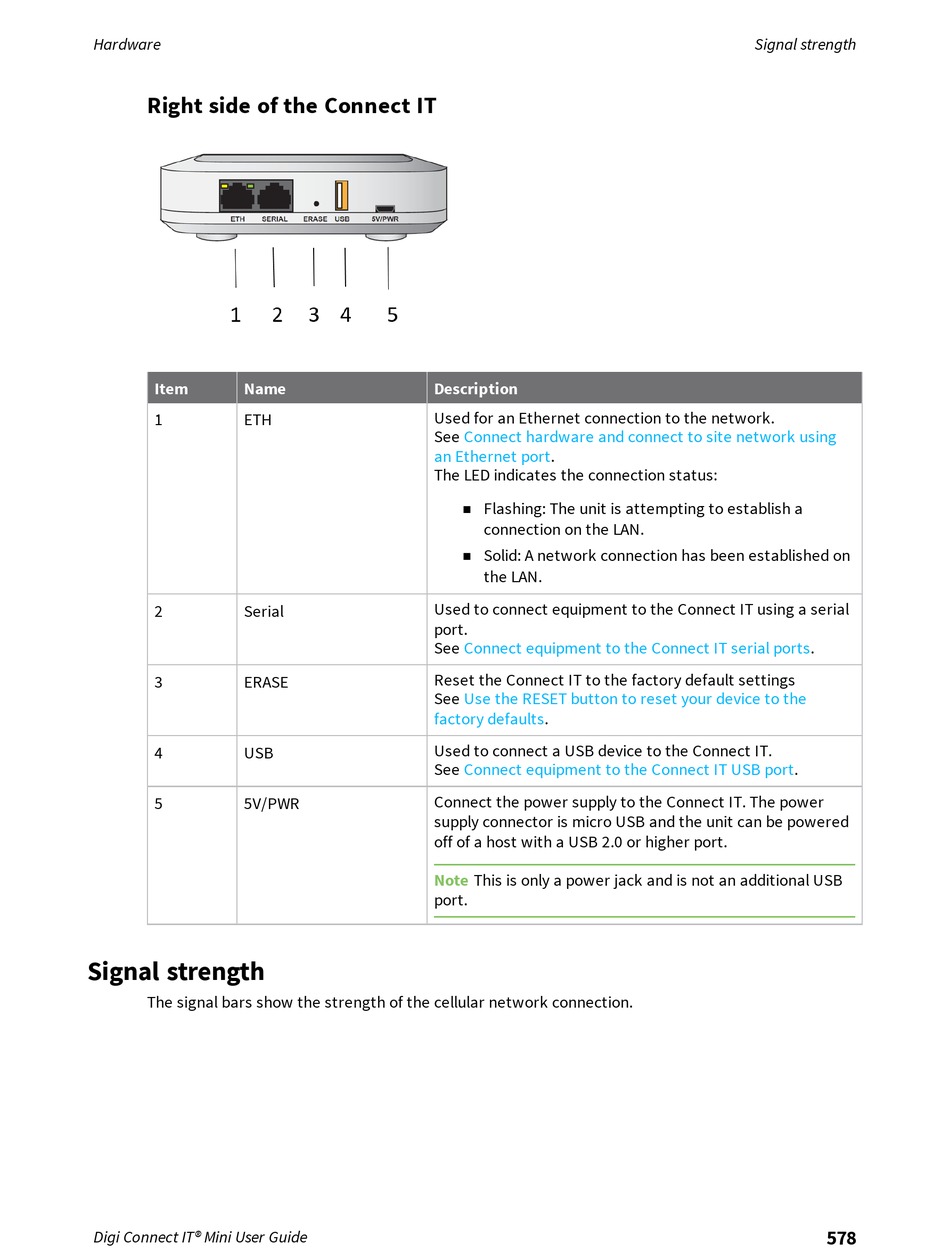

Right side of the Connect IT
Item
Name
1
ETH
2
Serial
3
ERASE
4
USB
5
5V/PWR
Signal strength
The signal bars show the strength of the cellular network connection.
Digi Connect IT® Mini User Guide
Description
Used for an Ethernet connection to the network.
See
Connect hardware and connect to site network using
an Ethernet
port.
The LED indicates the connection status:
Flashing: The unit is attempting to establish a
n
connection on the LAN.
Solid: A network connection has been established on
n
the LAN.
Used to connect equipment to the Connect IT using a serial
port.
See
Connect equipment to the Connect IT serial
Reset the Connect IT to the factory default settings
See
Use the RESET button to reset your device to the
factory
defaults.
Used to connect a USB device to the Connect IT.
See
Connect equipment to the Connect IT USB
Connect the power supply to the Connect IT. The power
supply connector is micro USB and the unit can be powered
off of a host with a USB 2.0 or higher port.
Note
This is only a power jack and is not an additional USB
port.
Signal strength
ports.
port.
