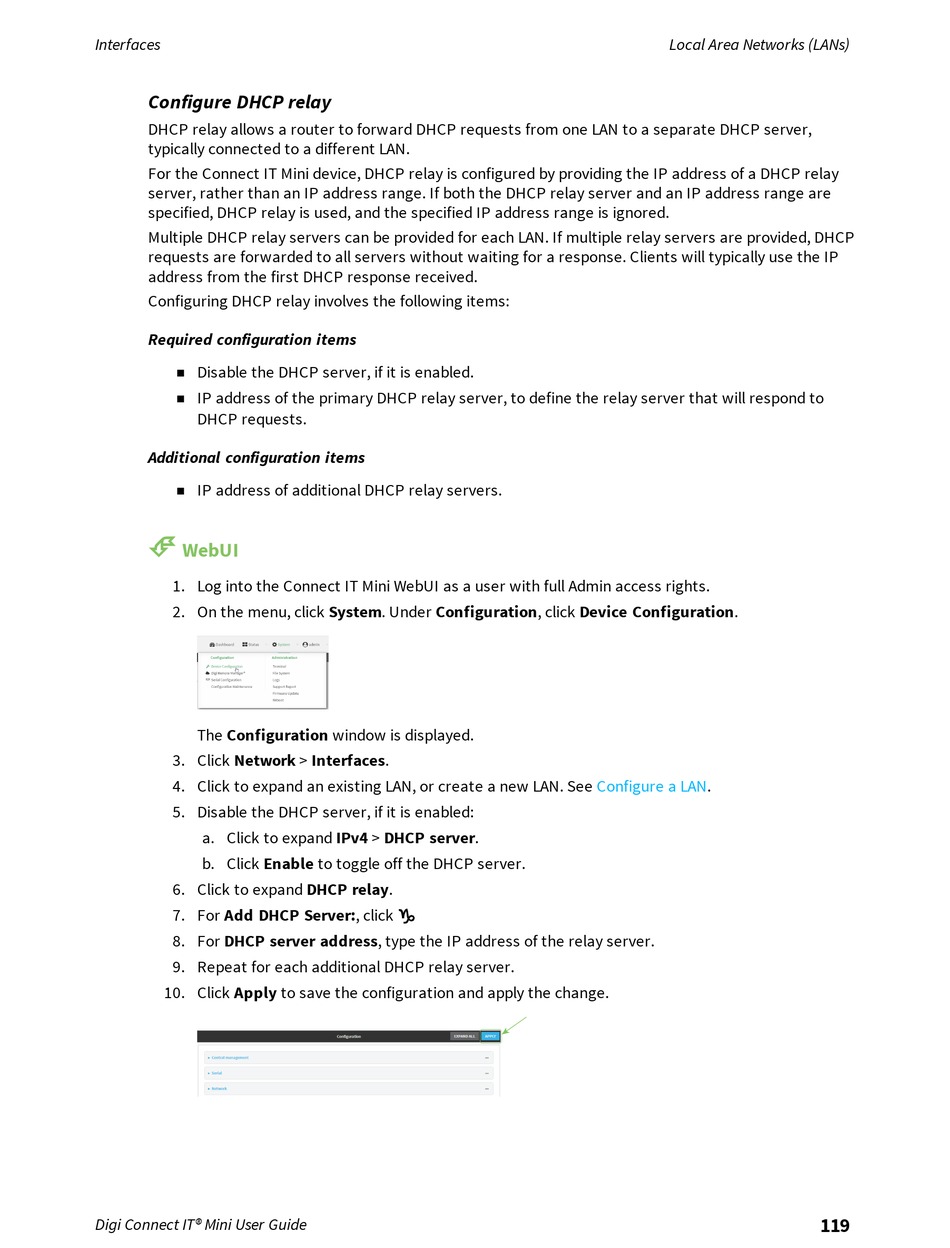

Configure DHCP relay
DHCP relay allows a router to forward DHCP requests from one LAN to a separate DHCP server,
typically connected to a different LAN.
For the Connect IT Mini device, DHCP relay is configured by providing the IP address of a DHCP relay
server, rather than an IP address range. If both the DHCP relay server and an IP address range are
specified, DHCP relay is used, and the specified IP address range is ignored.
Multiple DHCP relay servers can be provided for each LAN. If multiple relay servers are provided, DHCP
requests are forwarded to all servers without waiting for a response. Clients will typically use the IP
address from the first DHCP response received.
Configuring DHCP relay involves the following items:
Required configuration items
Disable the DHCP server, if it is enabled.
n
IP address of the primary DHCP relay server, to define the relay server that will respond to
n
DHCP requests.
Additional configuration items
IP address of additional DHCP relay servers.
n
É
WebUI
1. Log into the Connect IT Mini WebUI as a user with full Admin access rights.
2. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Network > Interfaces.
4. Click to expand an existing LAN, or create a new LAN. See
5. Disable the DHCP server, if it is enabled:
a. Click to expand IPv4 > DHCP server.
b. Click Enable to toggle off the DHCP server.
6. Click to expand DHCP relay.
7. For Add DHCP Server:, click g .
8. For DHCP server address, type the IP address of the relay server.
9. Repeat for each additional DHCP relay server.
10. Click Apply to save the configuration and apply the change.
Digi Connect IT® Mini User Guide
Local Area Networks (LANs)
Configure a
LAN.
119
