Hardware

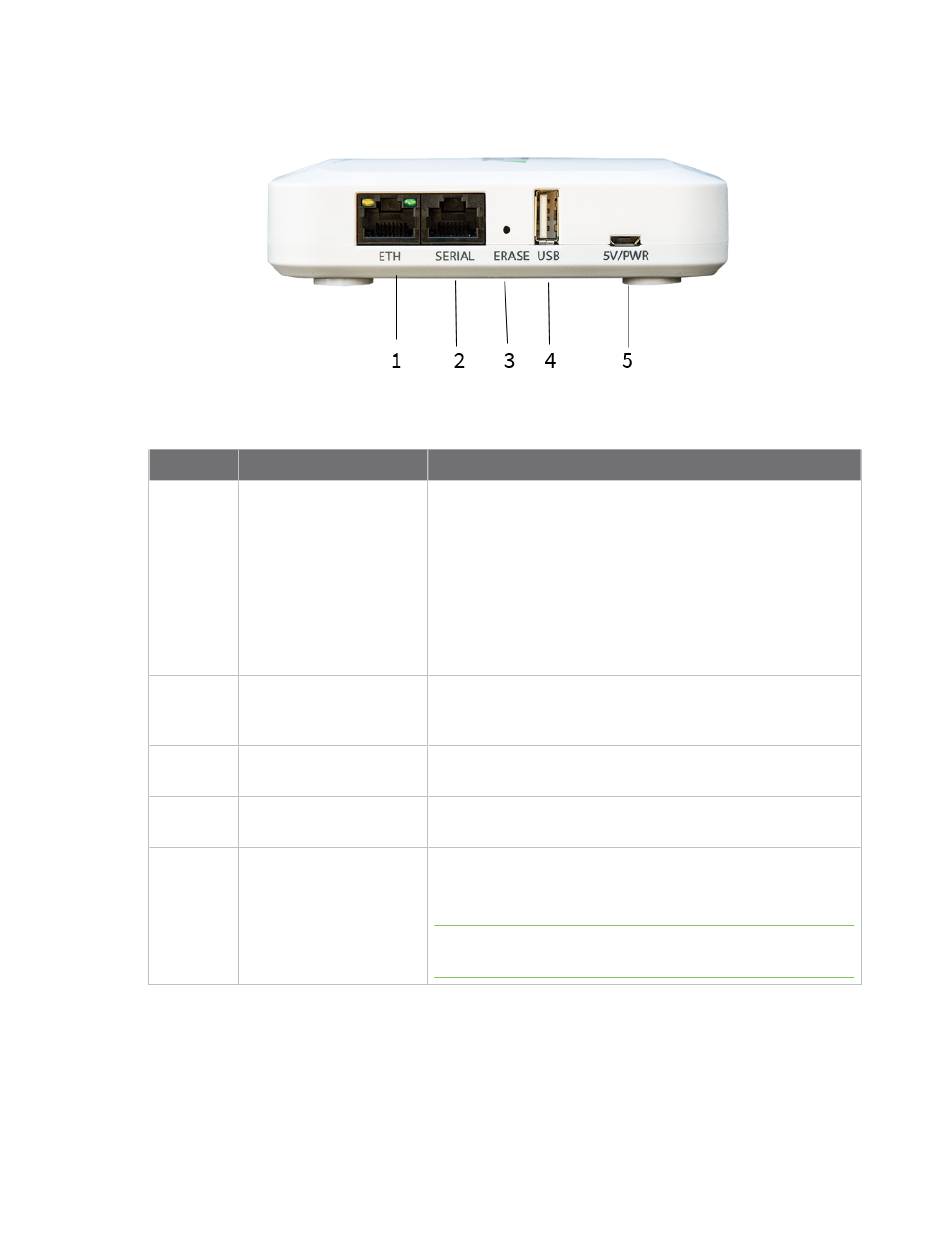

Right side of the Connect IT Mini

Item Name
1 ETH
2 Serial
3 ERASE
4 USB
5 5V/PWR

Signal strength

The signal bars show the strength of the cellular network connection.
Digi Connect IT® Mini User Guide
Description
Used for an Ethernet connection to the network.
See Connect hardware and connect to site network using
an Ethernet port.
The LED indicates the connection status:
Flashing: The unit is attempting to establish a
n
connection on the LAN.
Solid: A network connection has been established on
n
the LAN.
Used to connect equipment to the Connect IT Mini using a
serial port.
See Connect equipment to the Connect IT serial
Reset the Connect IT to the factory default settings
See Reset your device to the factory
Used to connect a USB device to the Connect IT Mini.
See Connect equipment to the Connect IT Mini USB
Connect the power supply to the Connect IT. The power
supply connector is micro USB and the unit can be powered
off of a host with a USB 2.0 or higher port.
Note This is only a power jack and is not an additional USB
port.
Signal strength
ports.
defaults.
port.
57
