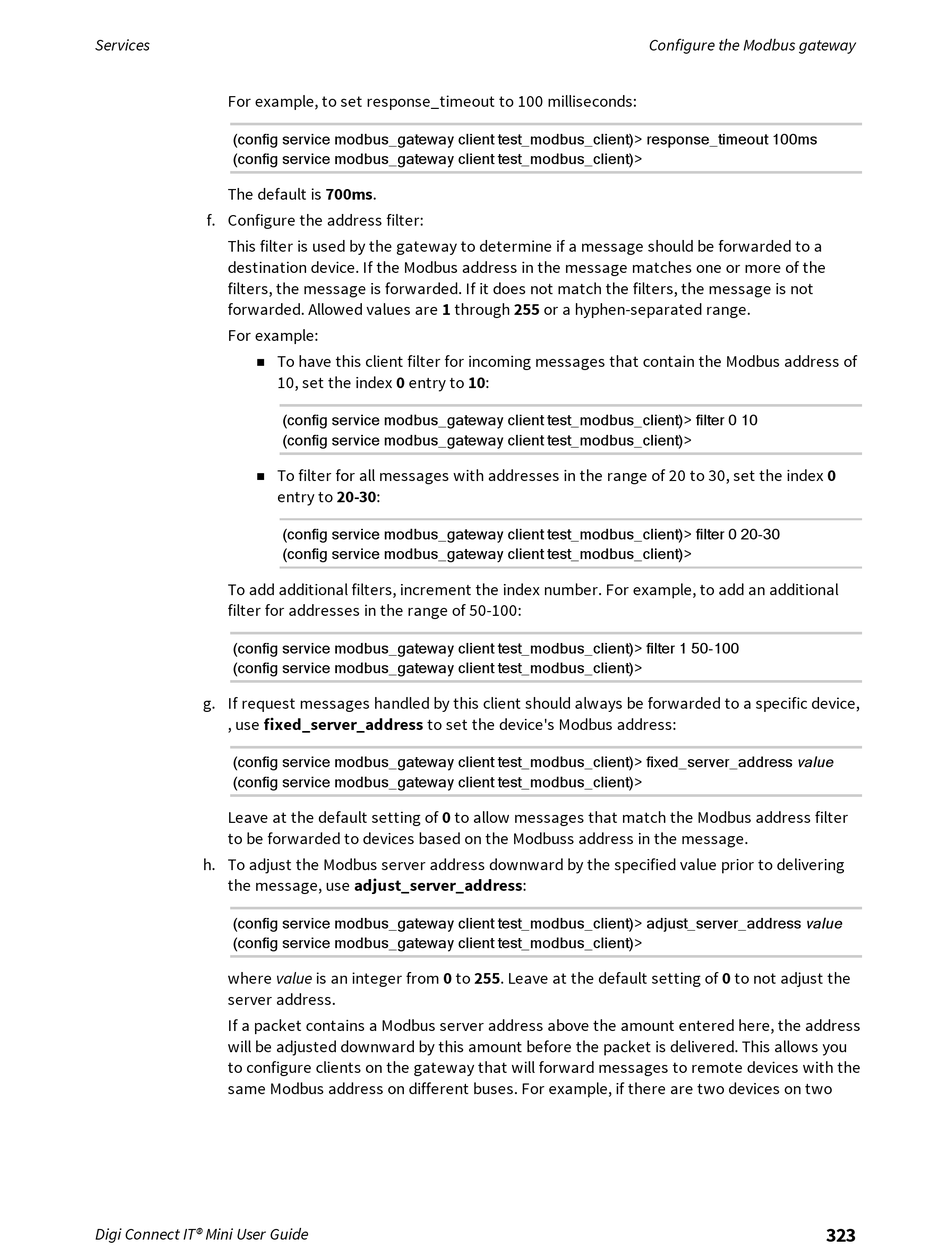

Services
For example, to set response_timeout to 100 milliseconds:
(config service modbus_gateway client test_modbus_client)> response_timeout 100ms
(config service modbus_gateway client test_modbus_client)>
The default is 700ms.
f. Configure the address filter:
This filter is used by the gateway to determine if a message should be forwarded to a
destination device. If the Modbus address in the message matches one or more of the
filters, the message is forwarded. If it does not match the filters, the message is not
forwarded. Allowed values are 1 through 255 or a hyphen-separated range.
For example:
n
n
To add additional filters, increment the index number. For example, to add an additional
filter for addresses in the range of 50-100:
(config service modbus_gateway client test_modbus_client)> filter 1 50-100
(config service modbus_gateway client test_modbus_client)>
g. If request messages handled by this client should always be forwarded to a specific device,
, use fixed_server_address to set the device's Modbus address:
(config service modbus_gateway client test_modbus_client)> fixed_server_address value
(config service modbus_gateway client test_modbus_client)>
Leave at the default setting of 0 to allow messages that match the Modbus address filter
to be forwarded to devices based on the Modbuss address in the message.
h. To adjust the Modbus server address downward by the specified value prior to delivering
the message, use adjust_server_address:
(config service modbus_gateway client test_modbus_client)> adjust_server_address value
(config service modbus_gateway client test_modbus_client)>
where value is an integer from 0 to 255. Leave at the default setting of 0 to not adjust the
server address.
If a packet contains a Modbus server address above the amount entered here, the address
will be adjusted downward by this amount before the packet is delivered. This allows you
to configure clients on the gateway that will forward messages to remote devices with the
same Modbus address on different buses. For example, if there are two devices on two
Digi Connect IT® Mini User Guide
To have this client filter for incoming messages that contain the Modbus address of
10, set the index 0 entry to 10:
(config service modbus_gateway client test_modbus_client)> filter 0 10
(config service modbus_gateway client test_modbus_client)>
To filter for all messages with addresses in the range of 20 to 30, set the index 0
entry to 20-30:
(config service modbus_gateway client test_modbus_client)> filter 0 20-30
(config service modbus_gateway client test_modbus_client)>
Configure the Modbus gateway
323
