Services
If connection_type is set to serial:
n

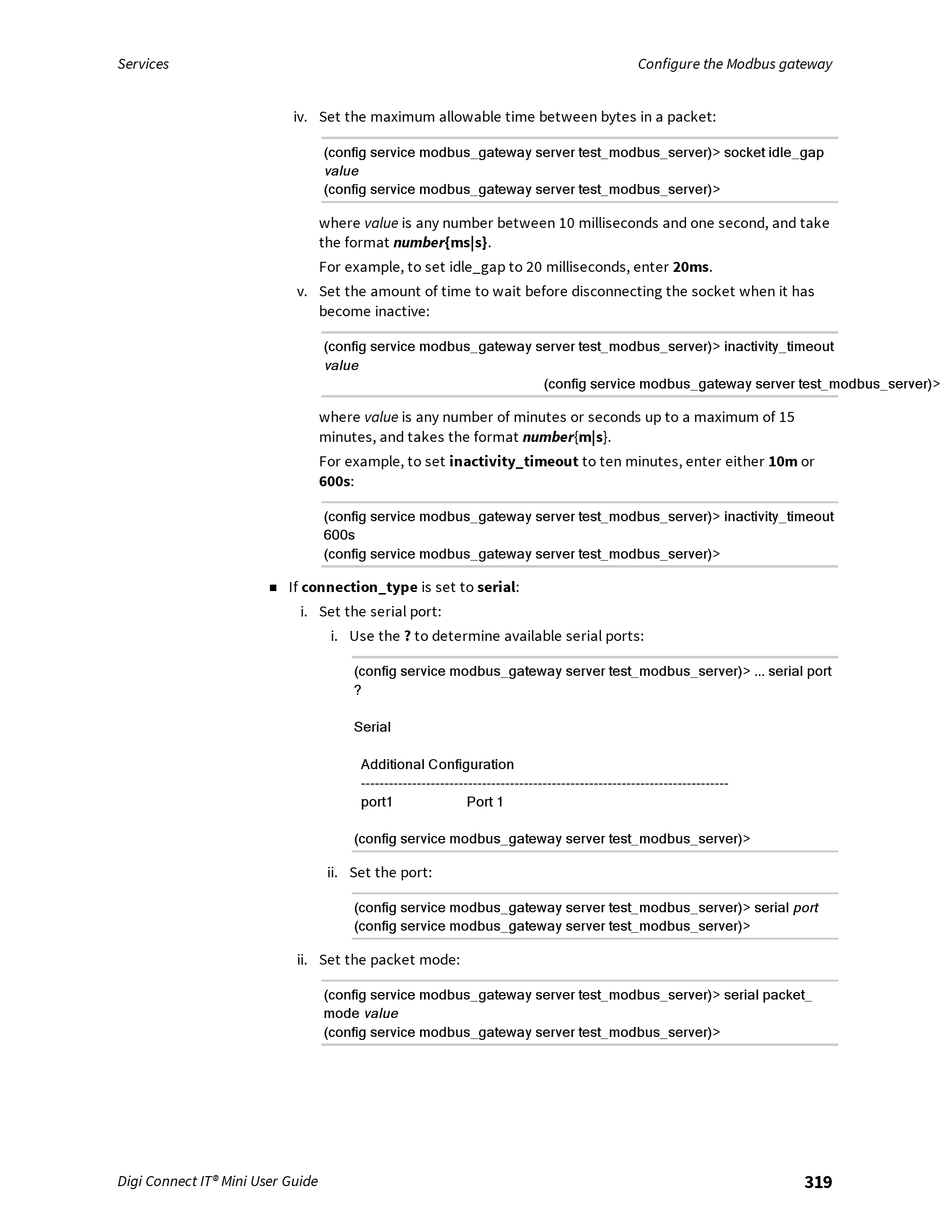

Digi Connect IT® Mini User Guide
iv. Set the maximum allowable time between bytes in a packet:
(config service modbus_gateway server test_modbus_server)> socket idle_gap
value
(config service modbus_gateway server test_modbus_server)>
where value is any number between 10 milliseconds and one second, and take
the format number{ms|s}.
For example, to set idle_gap to 20 milliseconds, enter 20ms.
v. Set the amount of time to wait before disconnecting the socket when it has
become inactive:
(config service modbus_gateway server test_modbus_server)> inactivity_timeout
value
where value is any number of minutes or seconds up to a maximum of 15
minutes, and takes the format number{m|s}.
For example, to set inactivity_timeout to ten minutes, enter either 10m or
600s:
(config service modbus_gateway server test_modbus_server)> inactivity_timeout
600s
(config service modbus_gateway server test_modbus_server)>
i. Set the serial port:
i. Use the ? to determine available serial ports:
(config service modbus_gateway server test_modbus_server)> ... serial port
?
Serial
Additional Configuration
-------------------------------------------------------------------------------
port1
Port 1
(config service modbus_gateway server test_modbus_server)>
ii. Set the port:
(config service modbus_gateway server test_modbus_server)> serial port
(config service modbus_gateway server test_modbus_server)>
ii. Set the packet mode:
(config service modbus_gateway server test_modbus_server)> serial packet_
mode value
(config service modbus_gateway server test_modbus_server)>
Configure the Modbus gateway
(config service modbus_gateway server test_modbus_server)>
319
