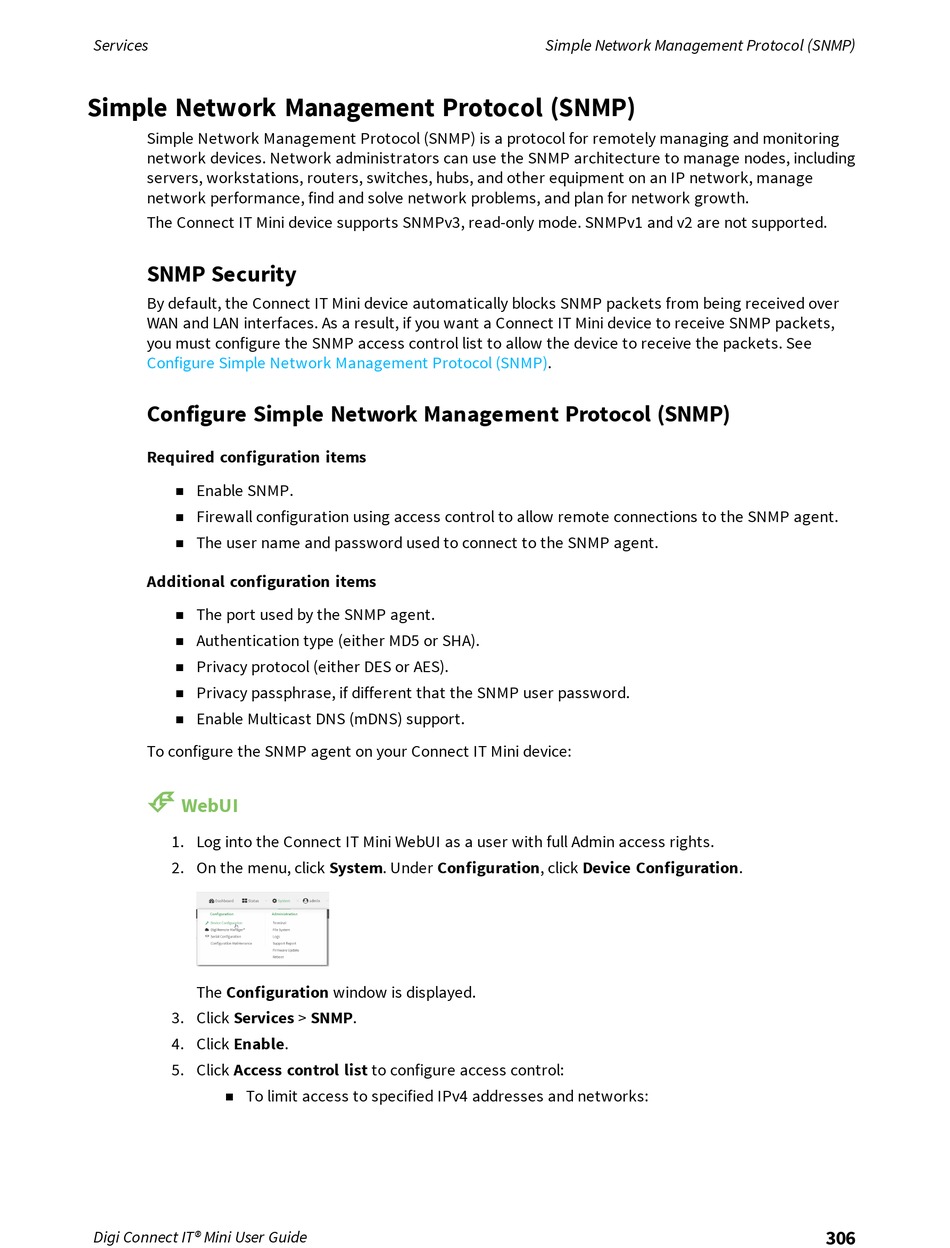

Simple Network Management Protocol (SNMP)
Simple Network Management Protocol (SNMP) is a protocol for remotely managing and monitoring
network devices. Network administrators can use the SNMP architecture to manage nodes, including
servers, workstations, routers, switches, hubs, and other equipment on an IP network, manage
network performance, find and solve network problems, and plan for network growth.
The Connect IT Mini device supports SNMPv3, read-only mode. SNMPv1 and v2 are not supported.
SNMP Security
By default, the Connect IT Mini device automatically blocks SNMP packets from being received over
WAN and LAN interfaces. As a result, if you want a Connect IT Mini device to receive SNMP packets,
you must configure the SNMP access control list to allow the device to receive the packets. See
Configure Simple Network Management Protocol
Configure Simple Network Management Protocol (SNMP)
Required configuration items
Enable SNMP.
n
Firewall configuration using access control to allow remote connections to the SNMP agent.
n
The user name and password used to connect to the SNMP agent.
n
Additional configuration items
The port used by the SNMP agent.
n
Authentication type (either MD5 or SHA).
n
Privacy protocol (either DES or AES).
n
Privacy passphrase, if different that the SNMP user password.
n
Enable Multicast DNS (mDNS) support.
n
To configure the SNMP agent on your Connect IT Mini device:
É
WebUI
1. Log into the Connect IT Mini WebUI as a user with full Admin access rights.
2. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Services > SNMP.
4. Click Enable.
5. Click Access control list to configure access control:
To limit access to specified IPv4 addresses and networks:
n
Digi Connect IT® Mini User Guide
Simple Network Management Protocol (SNMP)
(SNMP).
