CDM-Qx/QxL Multi-Channel Satellite Modem with DoubleTalk™ Carrier-in-Carrier®
Ethernet Management
6.5.4.3

Config Mdm (Configure Modem) Pages

The 'Config Mdm' pages are used to configure parameters for both the base chassis and up to
four modulator or demodulator modules, whether configured independently or grouped as
modems; real-time unit status information is also provided. Click either the Quick View or Unit
Status hyperlinks to continue.
6.5.4.3.1

Config Mdm | Quick View

The 'Config | Quick View' page (Figure 6-6) is the 'gateway' page for operation of the complete
CDM-Qx/QxL configuration. Once the Quick View hyperlink is selected, the page will refresh
and the Configuration Icon Group, located at the left side of the page, will display the
configuration in use, as per the following schematic:
When the unit senses the presence of installed modules, the icon quad just above the Base icon
will populate to match the active configuration. The icons may display:
•
Tx (to reflect the presence of a modulator module in that slot);
•
Rx (to reflect the presence of a demodulator module in that slot).
•
MD (for a grouped modem pair, a maximum of two will display – Modem 1 in the Slot#1
position, Modem 2 in the Slot#2 position).

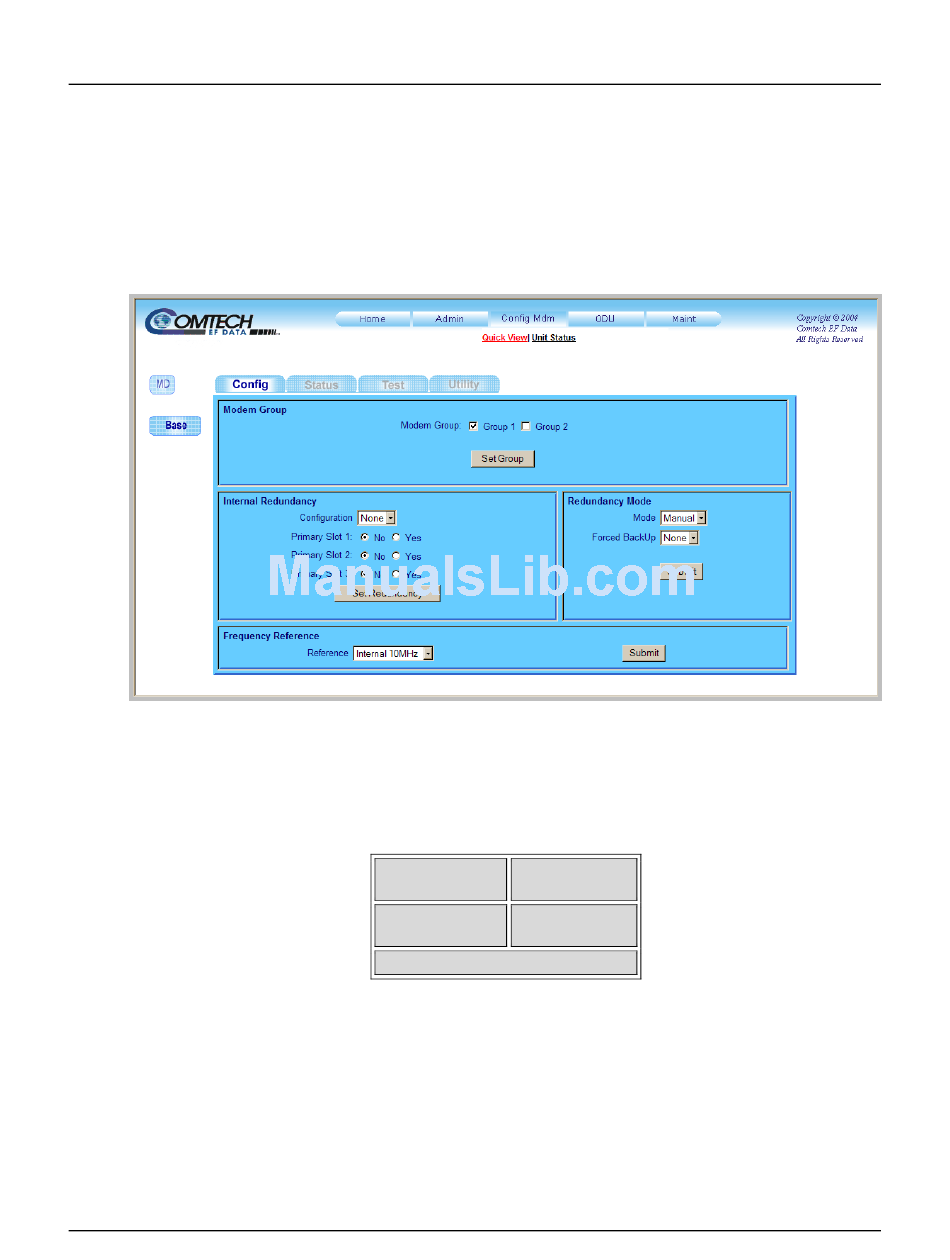

Figure 6-6. Config Mdm | Quick View Page Example

Slot#1
(MD, Tx, or Rx)
Slot#2
(Tx or Rx)
Slot#3
(MD, Tx, or Rx)
Slot4
(Tx or Rx)
Base
