3. Click Close.

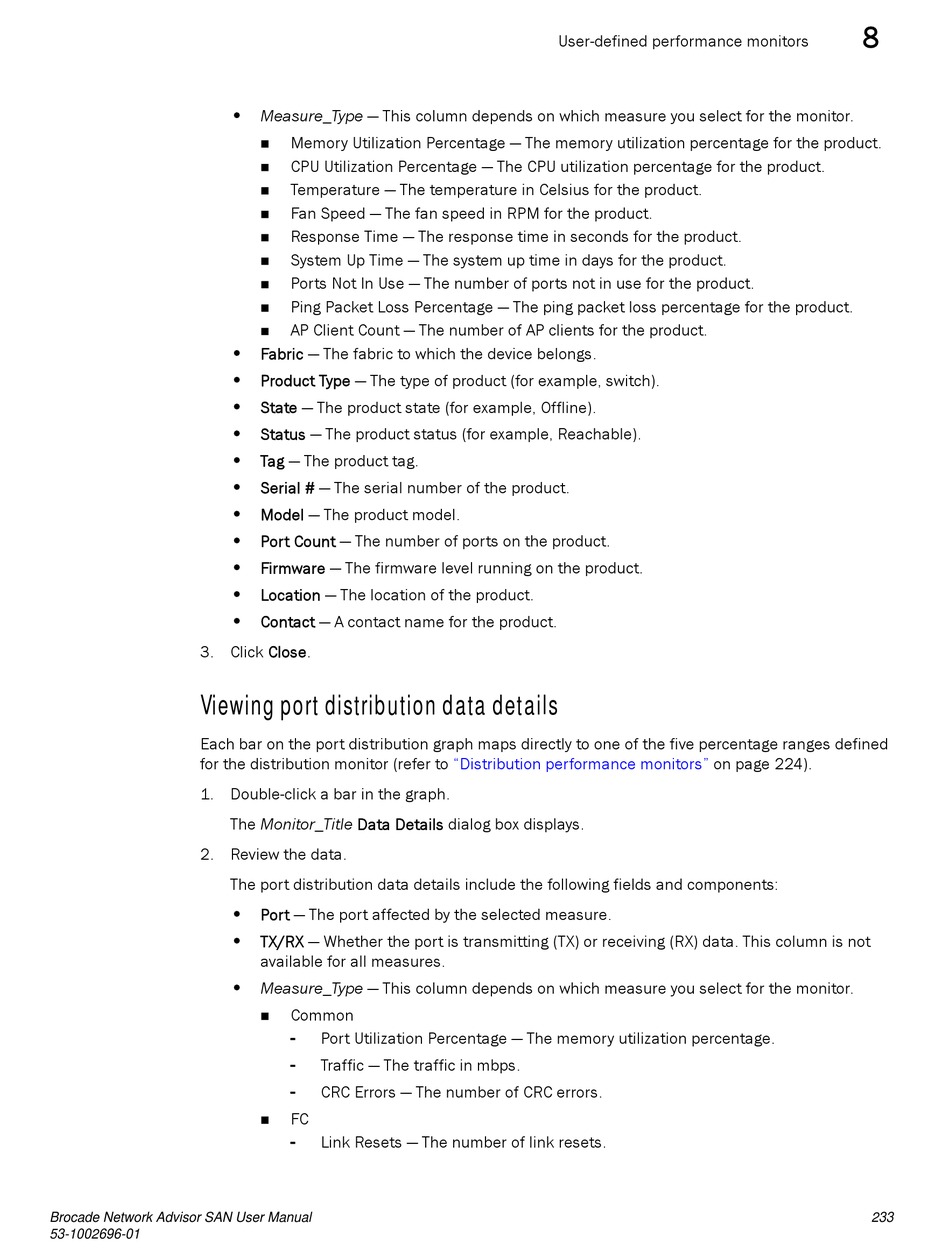

Viewing port distribution data details

Each bar on the port distribution graph maps directly to one of the five percentage ranges defined
for the distribution monitor (refer to
1. Double-click a bar in the graph.
2. Review the data.
Brocade Network Advisor SAN User Manual
53-1002696-01
•
Measure_Type — This column depends on which measure you select for the monitor.
Memory Utilization Percentage — The memory utilization percentage for the product.

CPU Utilization Percentage — The CPU utilization percentage for the product.

Temperature — The temperature in Celsius for the product.

Fan Speed — The fan speed in RPM for the product.

Response Time — The response time in seconds for the product.

System Up Time — The system up time in days for the product.

Ports Not In Use — The number of ports not in use for the product.

Ping Packet Loss Percentage — The ping packet loss percentage for the product.

AP Client Count — The number of AP clients for the product.

•
Fabric — The fabric to which the device belongs.
•
Product Type — The type of product (for example, switch).
•
State — The product state (for example, Offline).
•
Status — The product status (for example, Reachable).
•
Tag — The product tag.
•
Serial # — The serial number of the product.
•
Model — The product model.
•
Port Count — The number of ports on the product.
•
Firmware — The firmware level running on the product.
•
Location — The location of the product.
•
Contact — A contact name for the product.
The Monitor_Title Data Details dialog box displays.
The port distribution data details include the following fields and components:
•
Port — The port affected by the selected measure.
•
TX/RX — Whether the port is transmitting (TX) or receiving (RX) data. This column is not
available for all measures.
•
Measure_Type — This column depends on which measure you select for the monitor.
Common

-
Port Utilization Percentage — The memory utilization percentage.
-
Traffic — The traffic in mbps.
-
CRC Errors — The number of CRC errors.
FC

-
Link Resets — The number of link resets.
User-defined performance monitors
"Distribution performance monitors"
8
on page 224).
233
